ARCTIC ventilátor P12 PWM 120mm, 4-pin, PWM, 12V
Popis a parametry

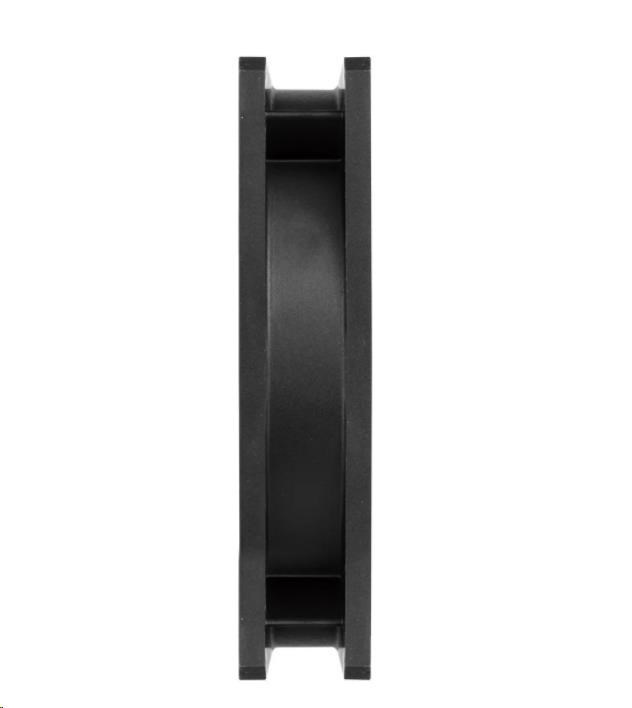

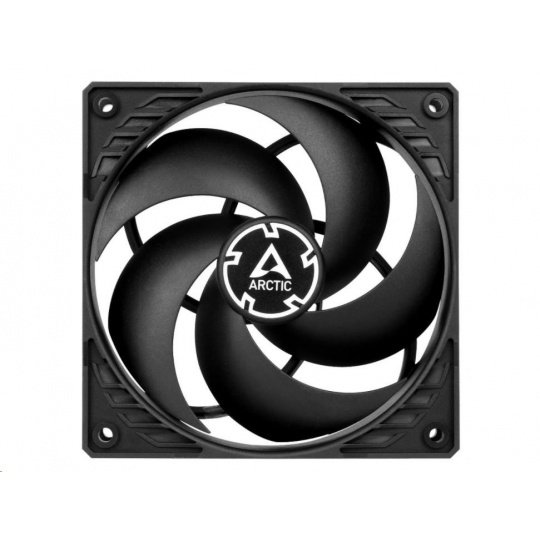

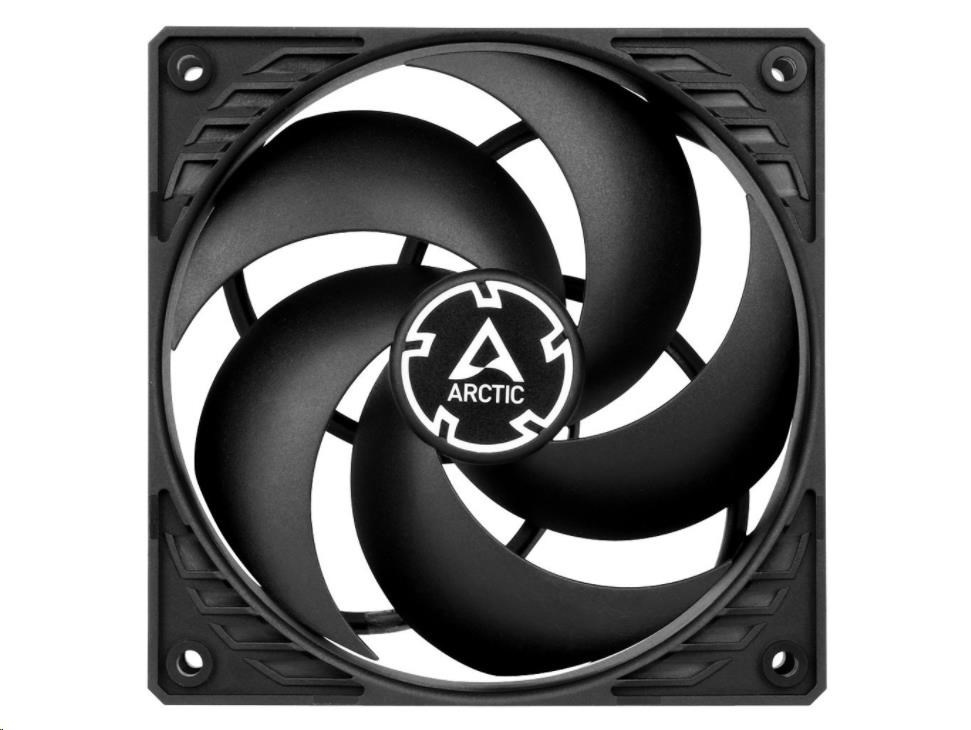

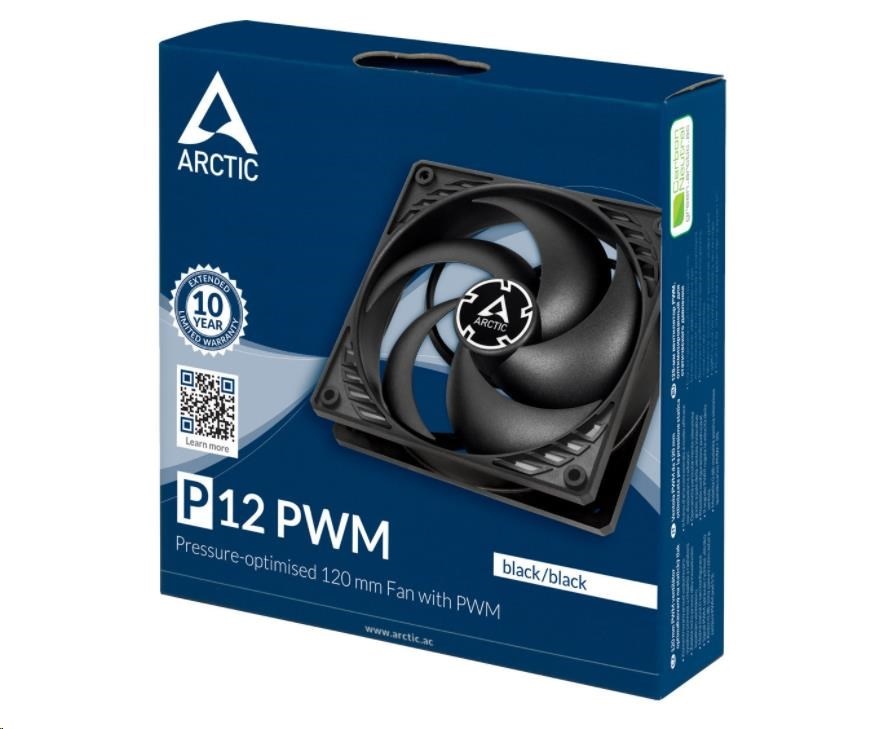

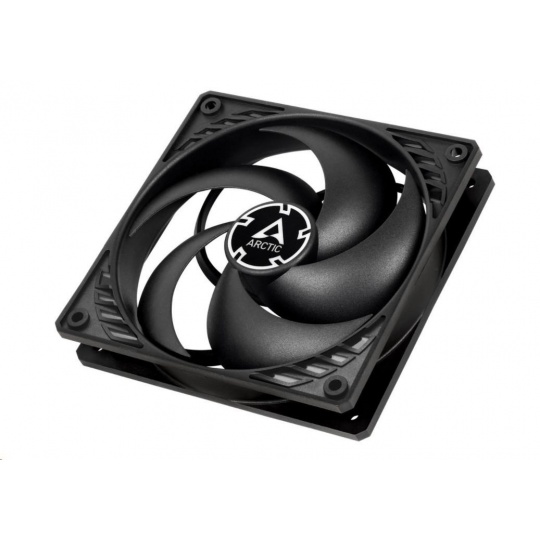

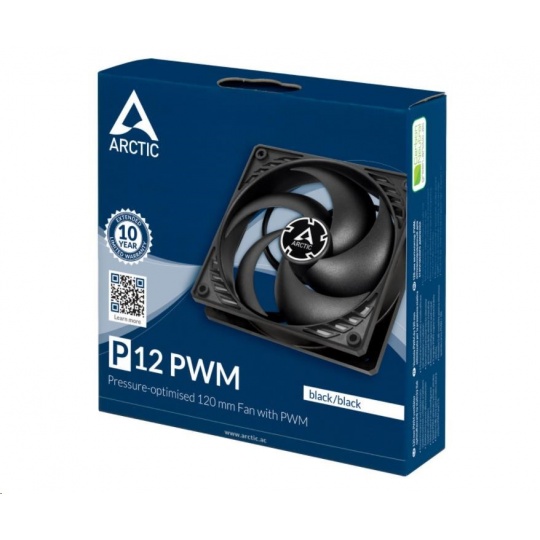

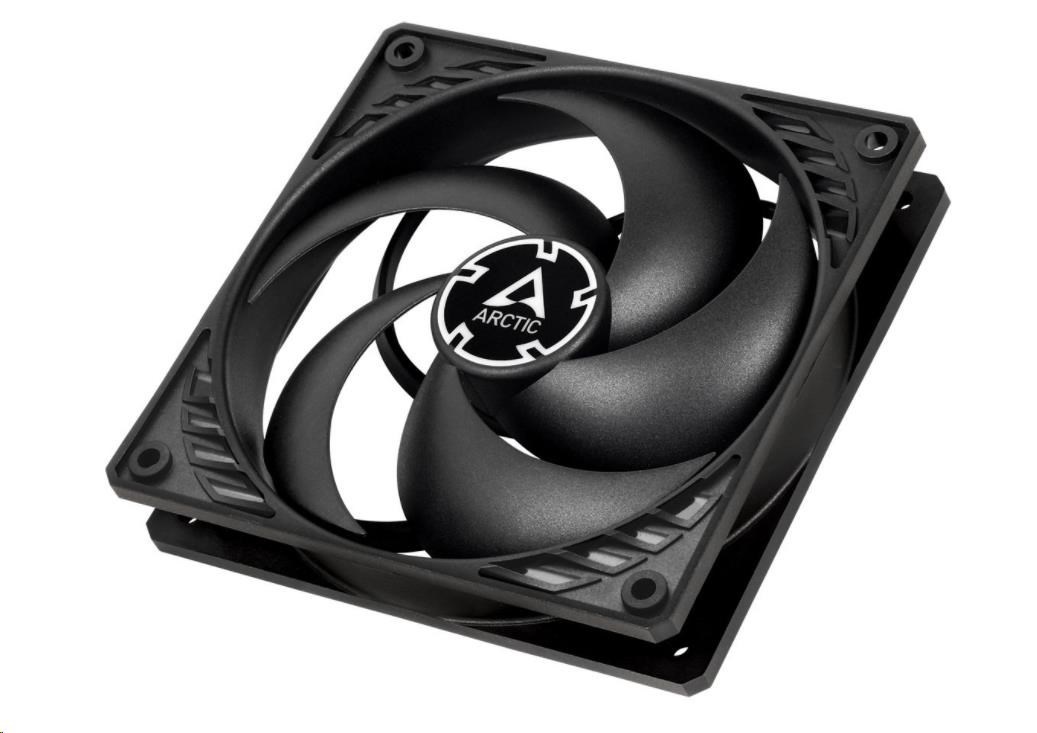

ARCTIC ventilátor P12 PWM 120mm, 4-pin, PWM, 12V
P12 PWM
During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators.
TECHNICAL SPECIFICATIONS
| Performace | |
| Fan Speed | 200 - 1800 RPM |
| Airflow | 56.3 CFM/ 95.7 m3/h |
| Static Pressure | 2,20 (mm/H2O) |
| Noise Level | 0.3 Sone |
| Fan | |
| Fan Frame | Standard |
| Controll Type | PWM |
| Connector | 4-Pin Connector |
| Fan Bearing | Fluid Dynamic Bearing |
| Electric Characteristics | |
| Typical Voltage | 12 V DC |
| Starting Voltage | 3.9 V |
| Current | 0.08 A |
| Cable Lenght | 400 mm |
| Size & Weight | |
| Dimensions (L x W x H) | 120 x 120 x 25 mm |
| Weight | 139 g |
| Packaging | |
| Dimensions (L x W x H) | 27 x 123 x 123 mm |
| Weight | 0.17 kg |
.
ParametryPorovnání
Využití chladiče
Do PC skříně
Typ chladiče
Aktivní
Barva podsvícení
bez podsvícení
Napájecí konektor
4pin
Velikost ventilátoru
120x120
ARCTIC ventilátor P12 PWM 120mm, 4-pin, PWM, 12V
