ASUS MB Sc AM4 TUF GAMING B450M-PLUS II, AMD B450, 4xDDR4, 1xHDMI, 1xDVI, mATX

Name: ASUS MB Sc AM4 TUF GAMING B450M-PLUS II, AMD B450, 4xDDR4, 1xHDMI, 1xDVI, mATX
Brand: ASUS
SKU: 431186
Price: 2384 CZK
Availability: InStock

-0%

Kód: 431186

Kód dod.: 90MB1620-M0EAY0

EAN: 4718017927185

Záruka: 36 Měsíc(ů)

Výrobce: ASUS

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

ASUS MB Sc AM4 TUF GAMING B450M-PLUS II, AMD B450, 4xDDR4, 1xHDMI, 1xDVI, mATX

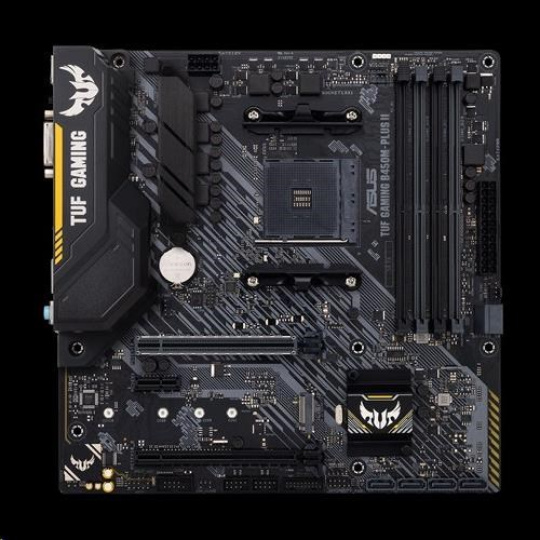

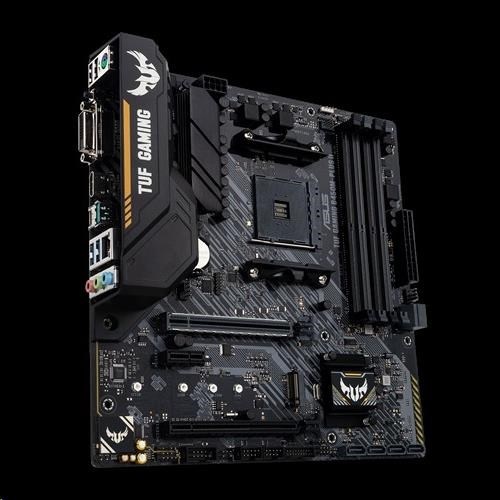

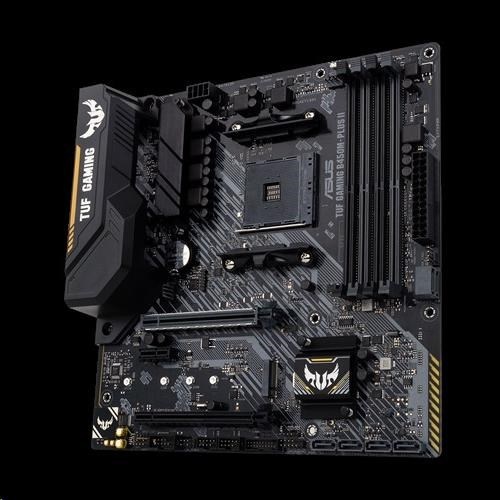

TUF GAMING B450M-PLUS II

AMD B450 (AM4) micro ATX gaming motherboard with M.2 support, AI Noise-Canceling Microphone, HDMI, DVI-D, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-A and Type-C, Aura Sync RGB lighting support

Comprehensive cooling: VRM heatsink, PCH heatsink, Fan Xpert 2+
Next-gen connectivity: USB 3.2 Gen 2 Type-A support
AI Noise-Canceling Microphone: Provides crystal-clear in-game voice communication
Aura Sync RGB Lighting: Synchronize LED lighting with a vast portfolio of compatible PC gear

TECHNICAL SPECIFICATIONS

CPU	AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors * * Refer to www.asus.com for CPU support list
Chipset	AMD B450
Memory	3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.
Graphic	Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 1 x HDMI 2.0b 1 x DVI-D *Graphics specifications may vary between CPU types.
Multi-GPU Support	Supports AMD 2-Way CrossFireX Technology
Expansion Slots	3rd/2nd/1st Gen AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode)
	2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode)
	Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
	AMD B450 chipset 1 x PCIe 2.0 x16 (x4 mode) 1 x PCIe 2.0 x1
Storage	Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support*1
	Athlon™ with Radeon™ Vega Graphics Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1
	3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors: 2 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
	AMD B450 chipset: 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
LAN	Realtek RTL8111H 1Gb Ethernet TUF LANGuard
Audio	Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature: - Exclusive DTS Custom for GAMING Headsets. - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
USB Ports	Rear USB Port (Total 6) 1 x USB 3.2 Gen 2 port(s)(1 x Type-A) 3 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C) 2 x USB 2.0 port(s)(2 x Type-A)
USB Ports	Front USB Port (Total 6) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise-Canceling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update - PC Cleaner TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
ASUS Special Features	ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED AURA Sync - AURA RGB header

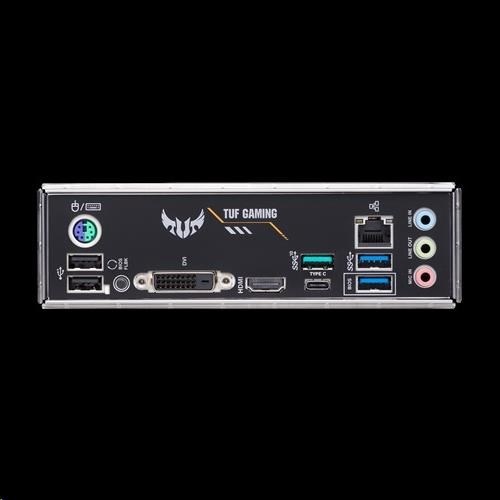

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.2 Gen 2 (teal blue)Type-A, 2 x USB 3.2 Gen 1 (blue) Type-A 1 x USB 3.2 Gen 1 (black) Type-C 2 x USB 2.0 3 x Audio jack(s) 1 x BIOS FlashBack™ Button(s)
Internal I/O Ports	1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x Aura RGB Strip Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector

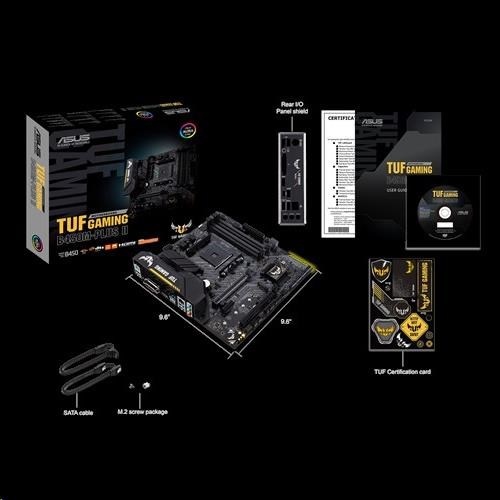

Accessories	User´s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x TUF Gaming Sticker 1 x TUF Certification card(s) 1 x M.2 SSD screw package(s)
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PXE
Operating System	Windows® 10 64-bit Windows® 7 64-bit *2
Form Factor	mATX Form Factor 9.6 x 9.6 inch (24.4 x 24.4 cm)
Note	1 The M.2 slot shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. 2 To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.

ParametryPorovnání

Technologie paměti RAM

DDR4

Socket (patice)

Socket AM4

Chipset

AMD

PCI Express x16

Podpora RAID

Formát základní desky

micro ATX

3.5mm Jack

Ano

ASUS MB Sc AM4 TUF GAMING B450M-PLUS II, AMD B450, 4xDDR4, 1xHDMI, 1xDVI, mATX
