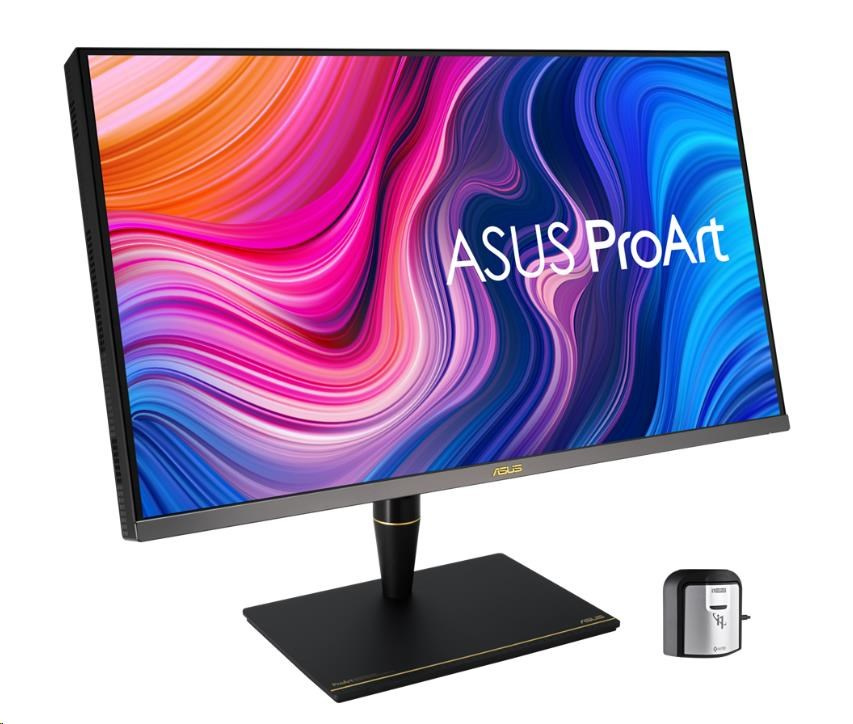

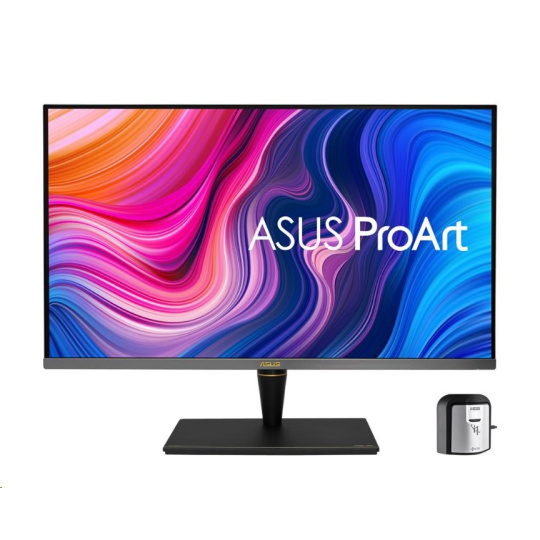

ASUS LCD 32” PA32UCX-PK 3840x2160 ProArt 4K 3xHDMI DP REPRO HDR IPS MiniLED 1200 nits Adobe RGB 100% HWCalibration TB3
Popis a parametry
ASUS LCD 32” PA32UCX-PK 3840x2160 ProArt 4K 3xHDMI DP REPRO HDR IPS MiniLED 1200 nits Adobe RGB 100% HWCalibration TB3
https://www.asus.com/Monitors/ProArt-Display-PA32UCX-PK/
https://www.asus.com/cz/events/infoM/activity_proart5years/
ASUS MT 32” PA32UCX-PK 4K HDR IPS Mini LED ProArt Display, 1200 nits, Off-Axis Contrast Optimization, 10 bit, Dolby Vision, HLG, 1152 zones, ?E < 1, 99% DCI-P3, 99.5% Adobe RGB, 100% sRGB/Rec. 709 , HWCalibration, TB3, Calman Ready, ColourSpace Integration
Panel Size: Wide Screen 32” (81.28cm) 16:9
Color Saturation : 89% Rec.2020, 99.5% Adobe RGB, 99% DCI-P3 and 100% sRGB
Panel Backlight / Type : Mini LED / IPS
True Resolution : 3840x2160
Display Viewing Area(HxV) : 708.48 x 398.52 mm
Display Surface : Non-glare
Pixel Pitch : 0.1845 mm
Brightness : 600 cd/? (Typical)/1200 cd/? (Peak)
Contrast Ratio : 1000 :1 (Typical)/1000000 :1 (HDR)
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Viewing Angle (CR?10) : 178°(H)/178°(V)
Response Time : 5ms (Gray to Gray)
Display Colors : 1073.7M (10bit)
Flicker free : Yes
LCD ZBD Warranty : Yes
HDR (High Dynamic Range) Support : Yes (HDR-10 /HLG (Hybrid Log Gamma)/Dolby Vision)
Dynamically Local Dimming : Yes, 1152 Zones
Off-axis Contrast Optimization (OCO) Technology : Yes
Video Feature
ProArt Preset : 13 Modes(Adobe RGB Mode/Rec. 2020/DCI-P3/DICOM/HDR_PQ DCI /HDR_PQ Rec2020/HLG/Dolby Vision/sRGB Mode/Rec. 709 Mode/User Mode 1/User Mode 2)
Color Temperature Selection : 5 Modes
Color Accuracy : ?E < 1
Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
QuickFit (modes) : Yes (Alignment Grid/Paper/Ruler/Customization Modes)
Picture-in-Picture : Yes
Picture-by-Picture : Yes (support up to 4 UHD windows)
Low Blue Light : Yes
HDCP support : Yes, 1.4 & 2.2
Adaptive-Sync supported :Yes
Multiple HDR Mode : Yes
Audio Features
Stereo Speakers : 3W x 2 Stereo RMS
I/O Ports
Signal Input : Thunderbolt™ 3 USB-C™ x2 (In x1, Out x1), HDMI(v2.0b) x3, DisplayPort 1.2
Earphone jack : 3.5mm Mini-Jack
USB downstream : USB3.0 Type-A x3
Signal Frequency
Digital Signal Frequency : DisplayPort, Thunderbolt™ 3:142 KHz (H) / 40 ~60 Hz(V)
HDMI : 109 ~142 KHz (H) /29 ~65 Hz(V)
Power Consumption
Power On (Typical): < 58.67W*
Power Saving Mode : < 0.5W
Power Off Mode : 0W (Hard Switch)
100-240V, 50/60Hz

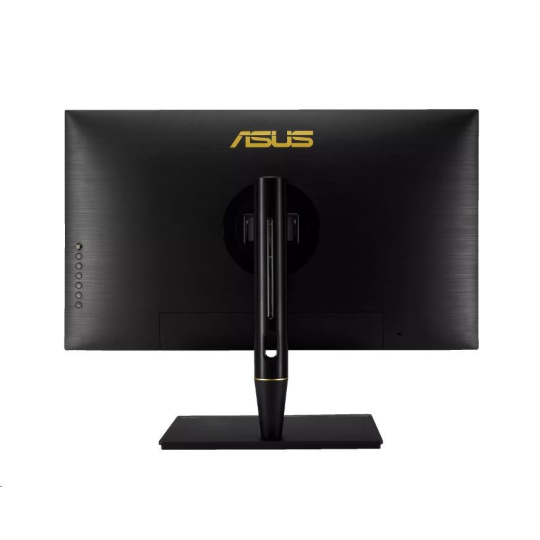

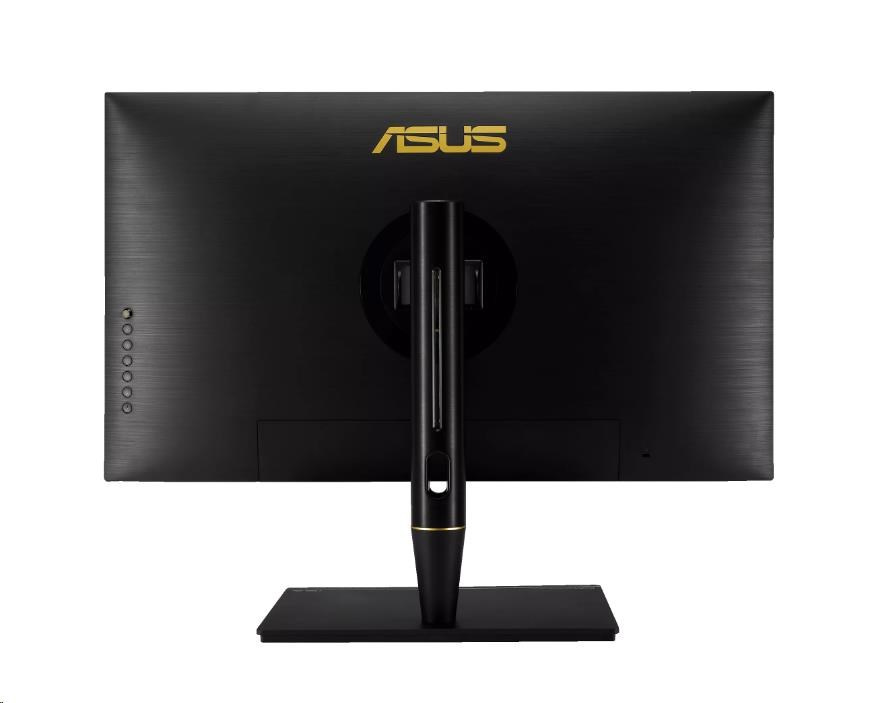

Mechanical Design
Chassis Colors : Black
Tilt : -5°~+23°
Swivel : -60°~+60°
Pivot : -90°~+90°
Height Adjustment : 0~130 mm
VESA Wall Mounting : 100x100mm
Frameless Design : Yes
Quick Release Stand Design : Yes
Security
Kensington lock
Dimensions
Phys. Dimension with Stand (WxHxD) : 727 x (470 – 600) x 240 mm
Phys. Dimension without Stand (WxHxD) : 727 x 426 x 93 mmBox Dimension (WxHxD) : 913 x 381 x 525 mm
Weight
Net Weight (Esti.) : 14.64 kg
Net Weight Without Stand (Esti.) : 9.7 kg
Gross Weight (Esti.) : 19.8 kg
Accessories
Thunderbolt™ 3 Cable
Power cord
DisplayPort cable
USB-C cable
USB-C to A cable
Quick start guide
HDMI cable
Warranty Card
Color pre-calibration report

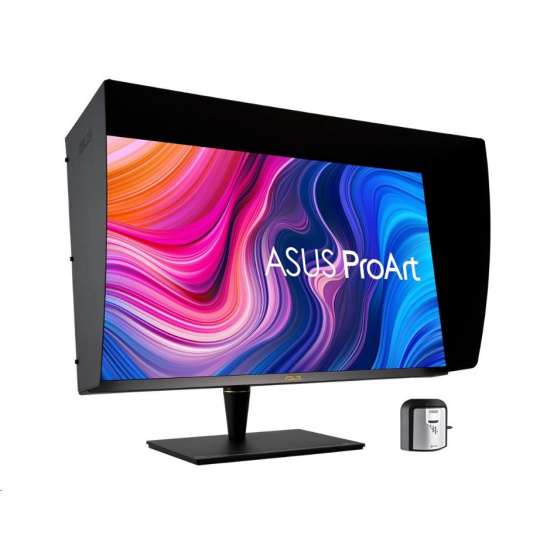

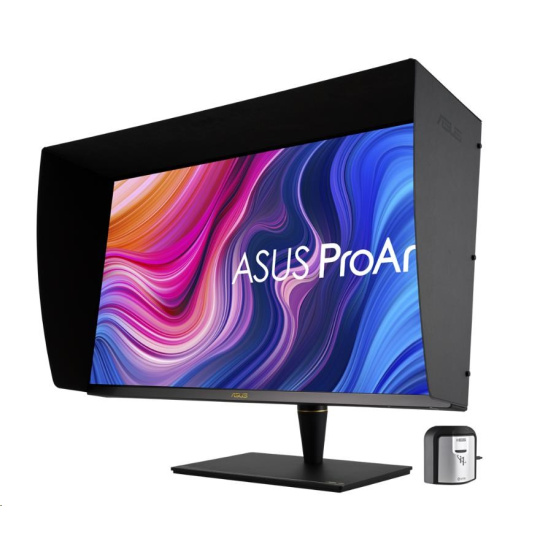

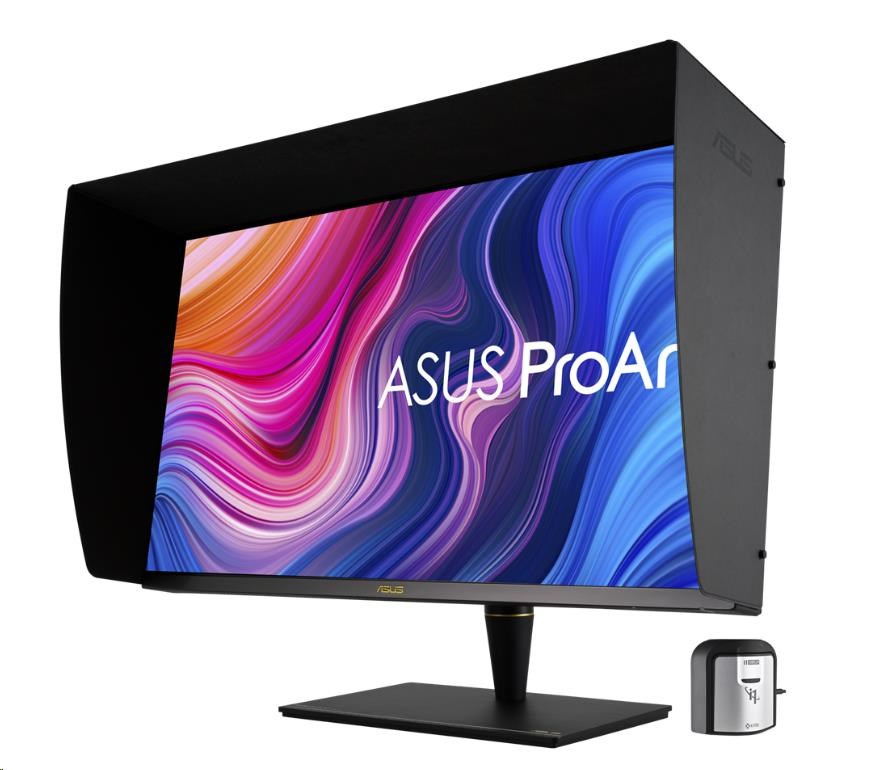

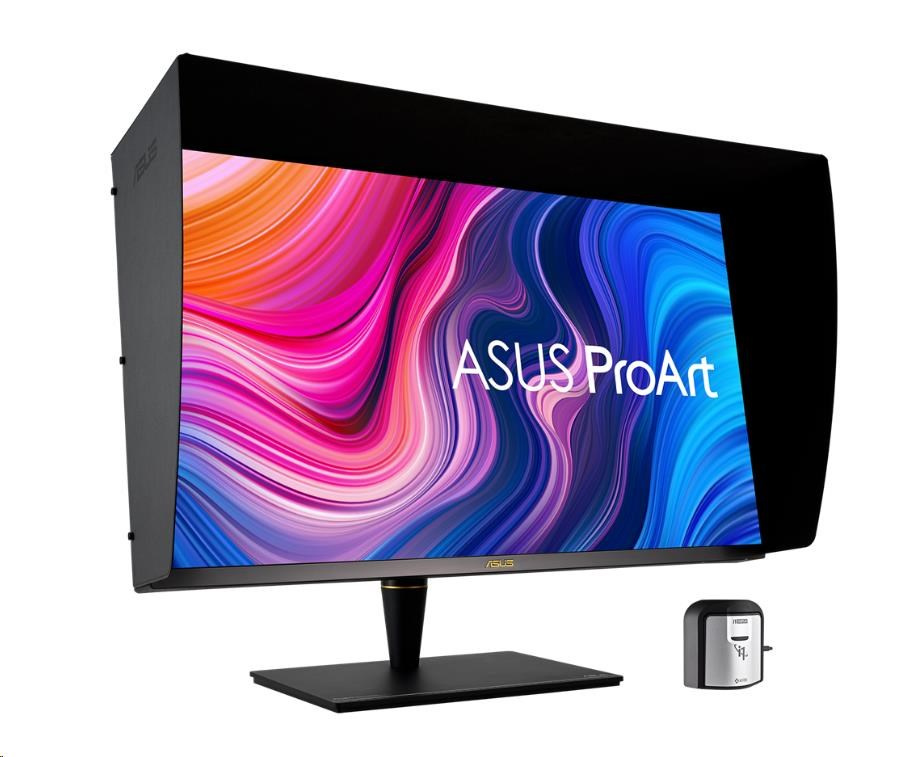

Monitor hood

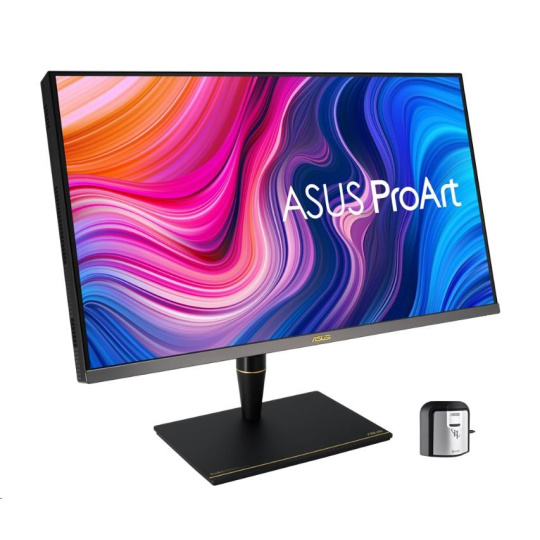

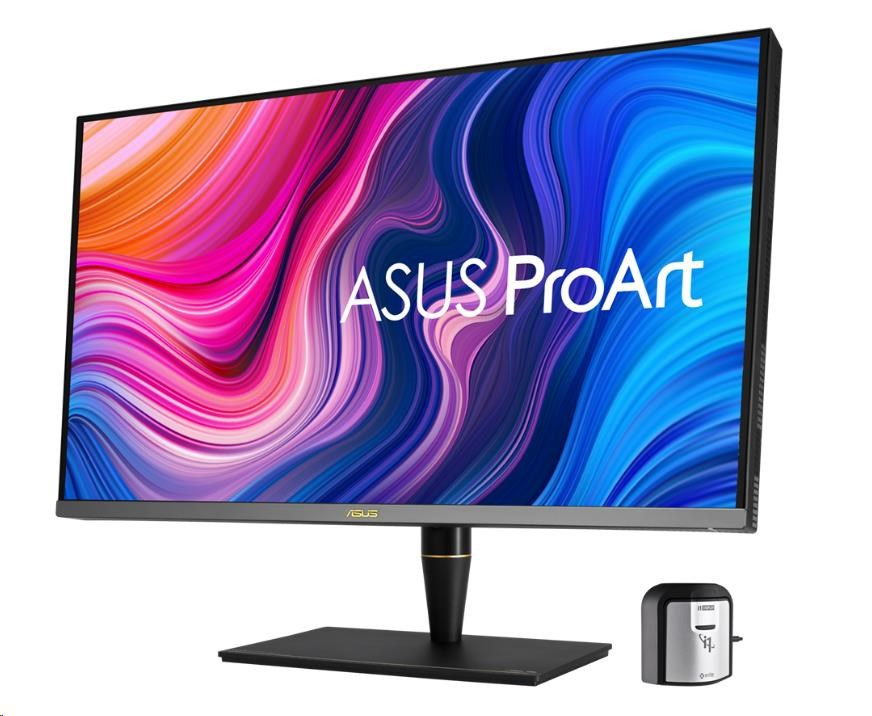

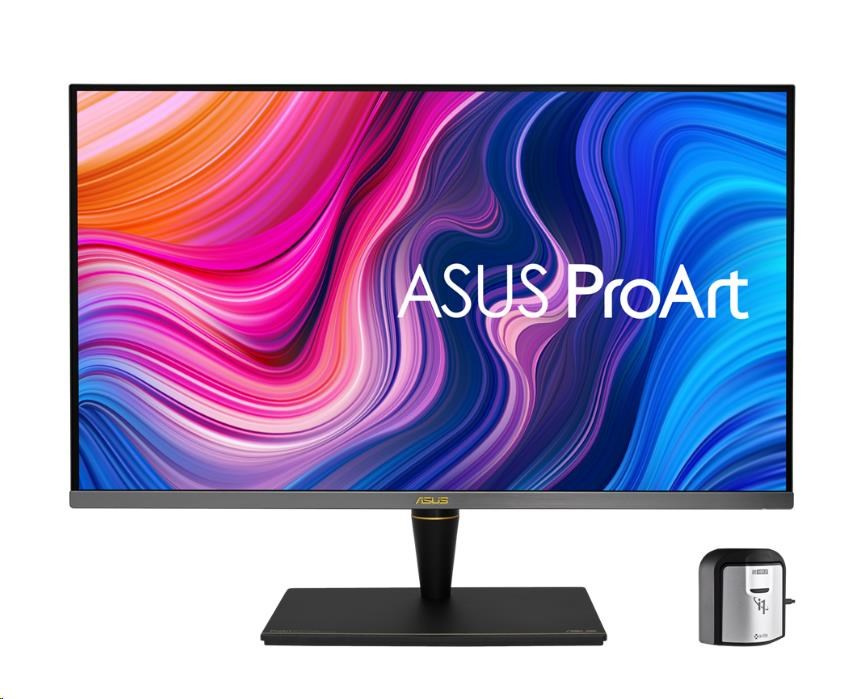

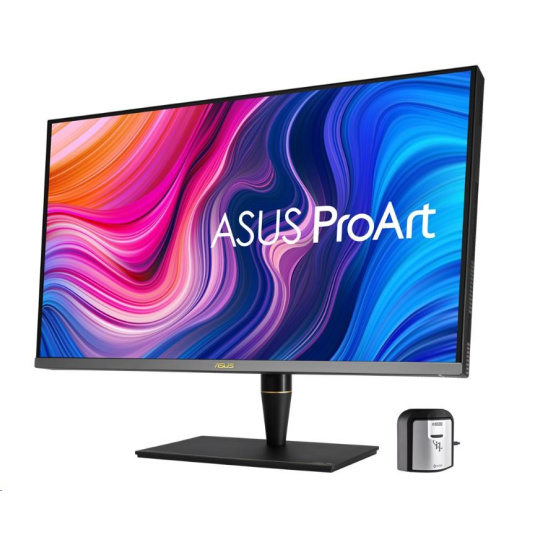

X-rite i1 Display Pro Calibrator
Compliance and Standards
BSMI, CB, CCC, CE, CEL level 0, CU, ErP, FCC, ISO-9241-307, J-MOSS, KCC, Mac Compliance, PSE, RoHS, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), MEPS, RCM, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, ICES-3, PC recycle, VESA DisplayHDR 1000
Note
*measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
Note1. HDR performance requires compatible monitors, streaming devices, video graphic cards, OS and playback software for PC devices or media players which all support HDR function.
Note2. The peak brightness 1200cd/? can only be triggered displaying HDR content that expresses the luminance value of greater than 1000 in a particular scene.
.
https://www.asus.com/cz/events/infoM/activity_proart5years/
ASUS MT 32” PA32UCX-PK 4K HDR IPS Mini LED ProArt Display, 1200 nits, Off-Axis Contrast Optimization, 10 bit, Dolby Vision, HLG, 1152 zones, ?E < 1, 99% DCI-P3, 99.5% Adobe RGB, 100% sRGB/Rec. 709 , HWCalibration, TB3, Calman Ready, ColourSpace Integration
Panel Size: Wide Screen 32” (81.28cm) 16:9
Color Saturation : 89% Rec.2020, 99.5% Adobe RGB, 99% DCI-P3 and 100% sRGB
Panel Backlight / Type : Mini LED / IPS
True Resolution : 3840x2160
Display Viewing Area(HxV) : 708.48 x 398.52 mm
Display Surface : Non-glare
Pixel Pitch : 0.1845 mm
Brightness : 600 cd/? (Typical)/1200 cd/? (Peak)
Contrast Ratio : 1000 :1 (Typical)/1000000 :1 (HDR)
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Viewing Angle (CR?10) : 178°(H)/178°(V)
Response Time : 5ms (Gray to Gray)
Display Colors : 1073.7M (10bit)
Flicker free : Yes
LCD ZBD Warranty : Yes
HDR (High Dynamic Range) Support : Yes (HDR-10 /HLG (Hybrid Log Gamma)/Dolby Vision)
Dynamically Local Dimming : Yes, 1152 Zones
Off-axis Contrast Optimization (OCO) Technology : Yes
Video Feature
ProArt Preset : 13 Modes(Adobe RGB Mode/Rec. 2020/DCI-P3/DICOM/HDR_PQ DCI /HDR_PQ Rec2020/HLG/Dolby Vision/sRGB Mode/Rec. 709 Mode/User Mode 1/User Mode 2)
Color Temperature Selection : 5 Modes
Color Accuracy : ?E < 1
Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
QuickFit (modes) : Yes (Alignment Grid/Paper/Ruler/Customization Modes)
Picture-in-Picture : Yes
Picture-by-Picture : Yes (support up to 4 UHD windows)
Low Blue Light : Yes
HDCP support : Yes, 1.4 & 2.2
Adaptive-Sync supported :Yes
Multiple HDR Mode : Yes
Audio Features
Stereo Speakers : 3W x 2 Stereo RMS
I/O Ports
Signal Input : Thunderbolt™ 3 USB-C™ x2 (In x1, Out x1), HDMI(v2.0b) x3, DisplayPort 1.2
Earphone jack : 3.5mm Mini-Jack
USB downstream : USB3.0 Type-A x3
Signal Frequency
Digital Signal Frequency : DisplayPort, Thunderbolt™ 3:142 KHz (H) / 40 ~60 Hz(V)
HDMI : 109 ~142 KHz (H) /29 ~65 Hz(V)
Power Consumption
Power On (Typical): < 58.67W*
Power Saving Mode : < 0.5W
Power Off Mode : 0W (Hard Switch)
100-240V, 50/60Hz
Mechanical Design
Chassis Colors : Black
Tilt : -5°~+23°
Swivel : -60°~+60°
Pivot : -90°~+90°
Height Adjustment : 0~130 mm
VESA Wall Mounting : 100x100mm
Frameless Design : Yes
Quick Release Stand Design : Yes
Security
Kensington lock
Dimensions
Phys. Dimension with Stand (WxHxD) : 727 x (470 – 600) x 240 mm
Phys. Dimension without Stand (WxHxD) : 727 x 426 x 93 mmBox Dimension (WxHxD) : 913 x 381 x 525 mm
Weight
Net Weight (Esti.) : 14.64 kg
Net Weight Without Stand (Esti.) : 9.7 kg
Gross Weight (Esti.) : 19.8 kg
Accessories
Thunderbolt™ 3 Cable
Power cord
DisplayPort cable
USB-C cable
USB-C to A cable
Quick start guide
HDMI cable
Warranty Card
Color pre-calibration report
Monitor hood
X-rite i1 Display Pro Calibrator
Compliance and Standards
BSMI, CB, CCC, CE, CEL level 0, CU, ErP, FCC, ISO-9241-307, J-MOSS, KCC, Mac Compliance, PSE, RoHS, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), MEPS, RCM, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, ICES-3, PC recycle, VESA DisplayHDR 1000
Note
*measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
Note1. HDR performance requires compatible monitors, streaming devices, video graphic cards, OS and playback software for PC devices or media players which all support HDR function.
Note2. The peak brightness 1200cd/? can only be triggered displaying HDR content that expresses the luminance value of greater than 1000 in a particular scene.
.
ParametryPorovnání
Formát obrazovky
16:10
Rozlišení displeje
3840x2160 (4K UHD)
Povrchová úprava displeje
Matný
Rozhraní
HDMI
Rozhraní
3.5mm Jack
Rozhraní
USB Type-C
Rozhraní
DisplayPort
Výbava
Reproduktory
Výbava
VESA montáž
Výbava
Redukce blikání (flicker-free)
Výbava
Redukce modrého světla
Výbava
Nastavitelná výška
Výbava
Pivot
VESA rozměry
100x100
Typ panelu
IPS
Barevná hloubka (bit)
10
Úhlopříčka displeje (")
32
Kontrast:1
1000
Doba odezvy (ms)
5
Hmotnost (kg)
14,64
Jas (cd/m2)
600
