TUF Gaming GT501

ASUS TUF Gaming GT501 case supports up to EATX with metal front panel, tempered-glass side panel, 120 mm RGB fan, 140 mm PWM fan, radiator space reserved, and USB 3.1 Gen 1

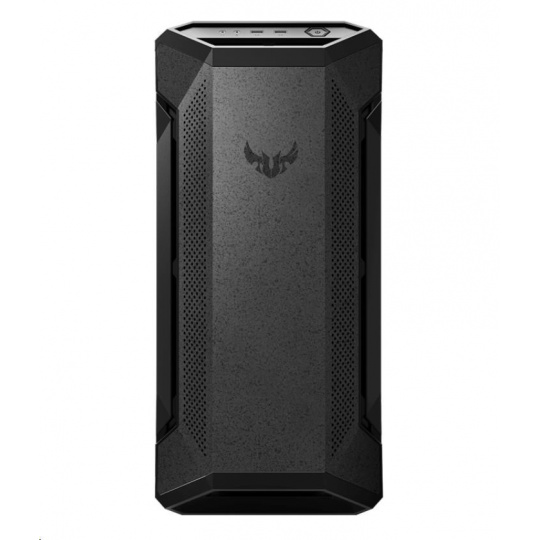

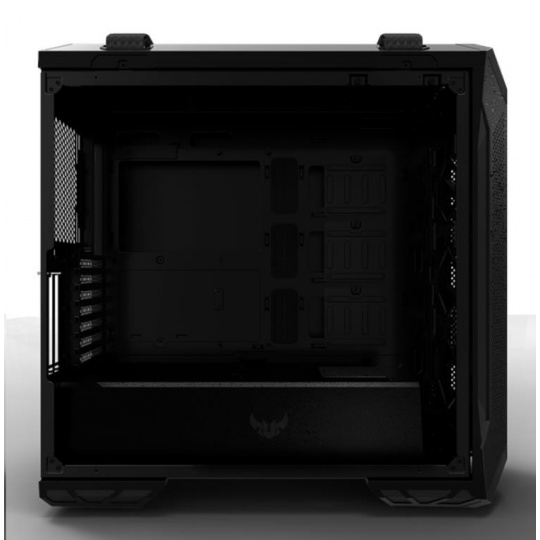

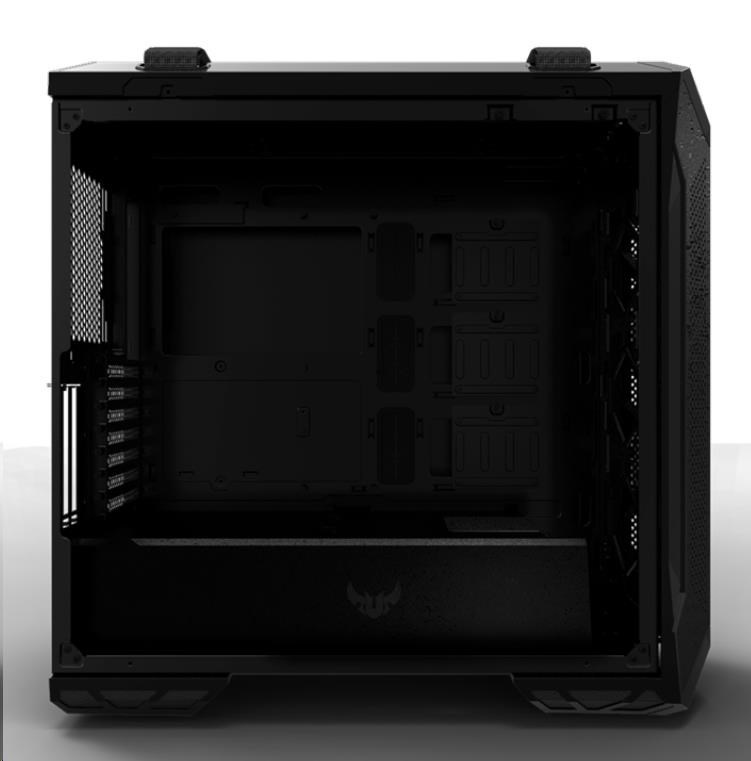

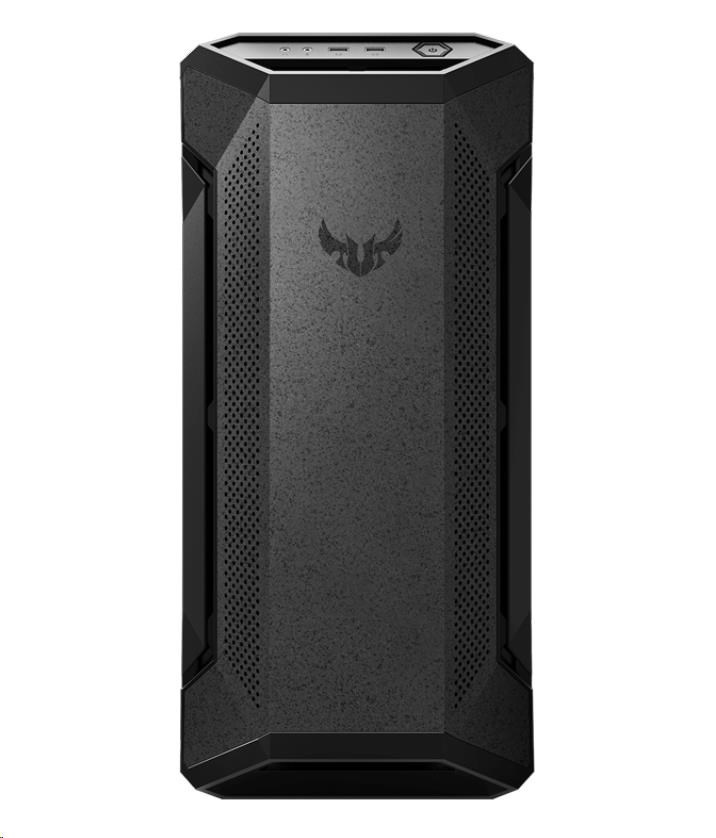

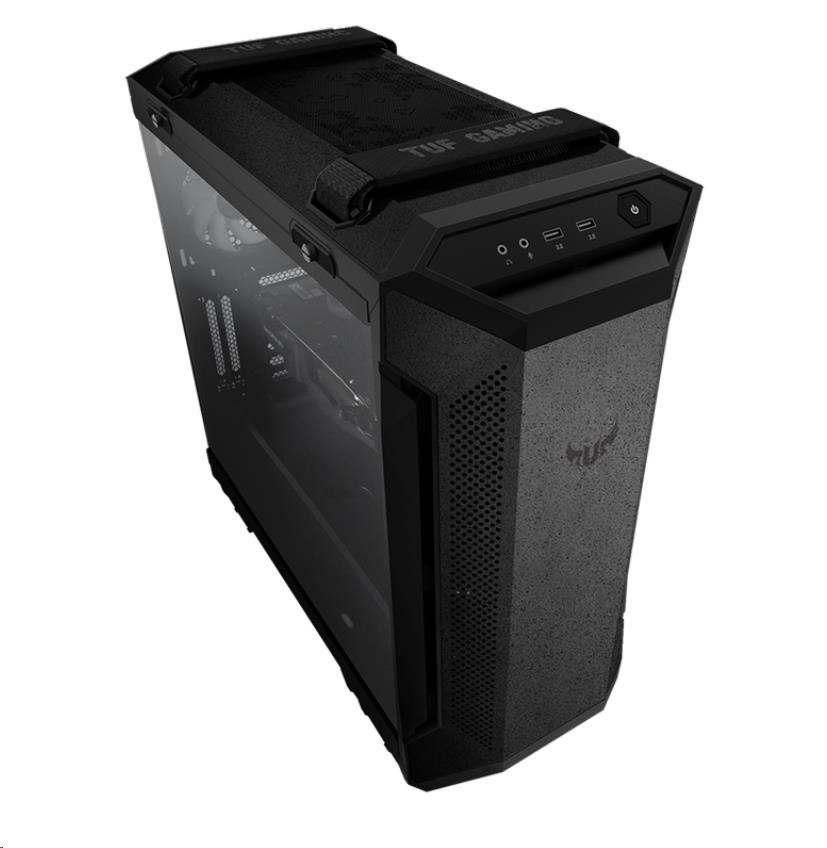

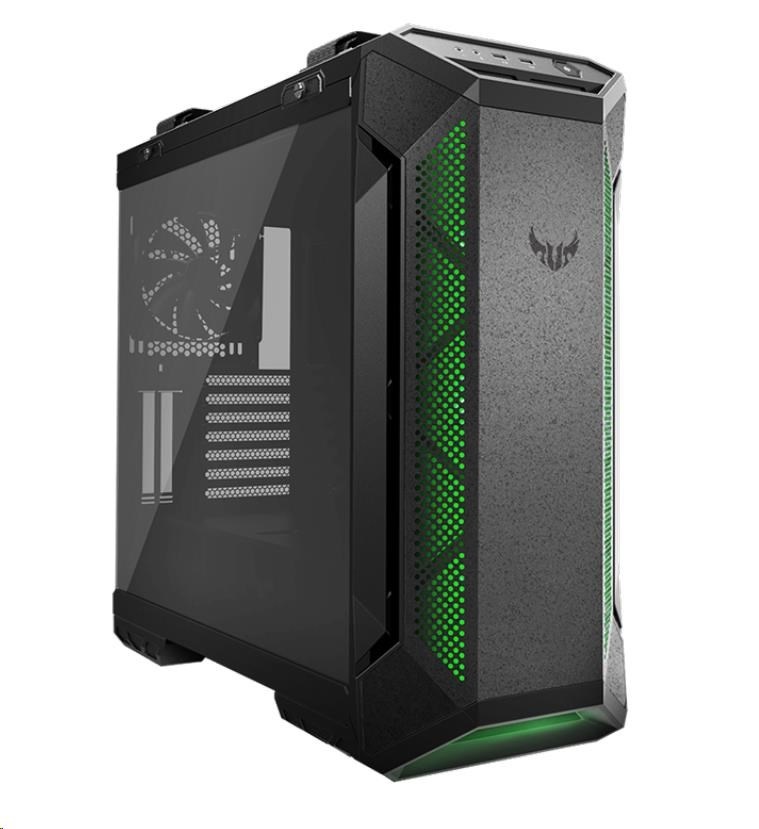

• Designed to be noticed: Metal front panel with custom TUF Gaming spatter pattern, and 4mm-thick, smoked, tempered-glass side panel to showcase your build’s internals.
• Mobile battle station: Ergonomic, woven-cotton carry handles enable easy and safe transport up to 30Kg.

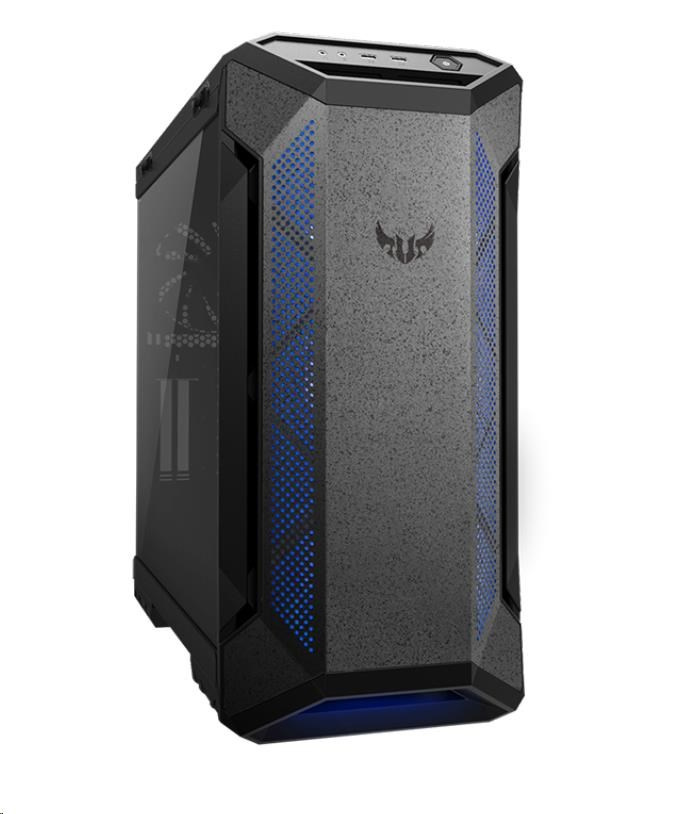

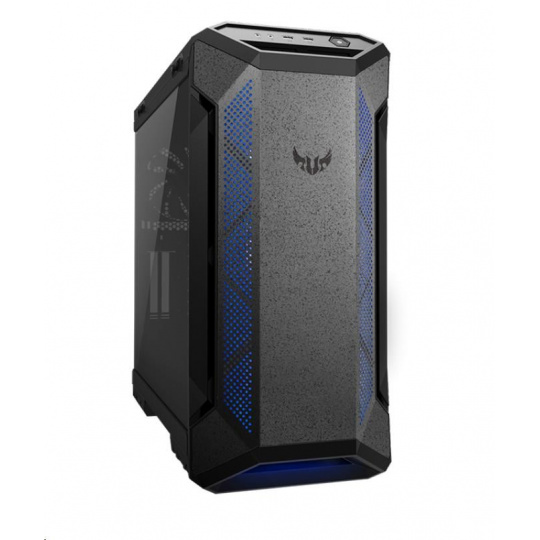

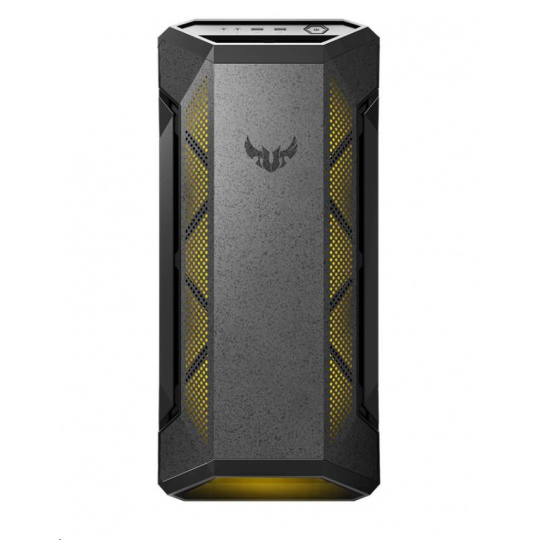

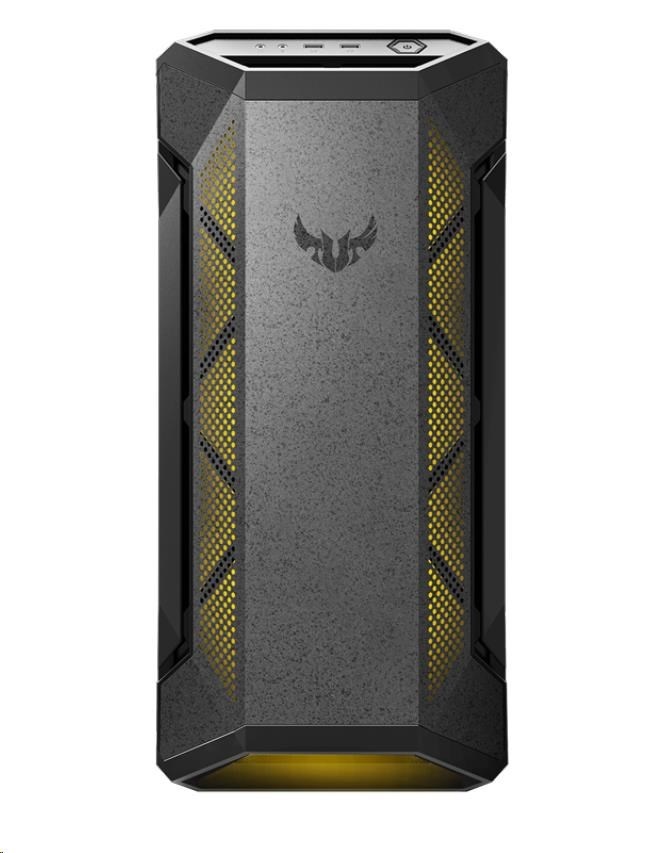

• Efficient cooling: Equipped with three 120mm Aura Sync RGB-illuminated fans and one 140mm rear PWM fan, plus up to seven fan-mounting points for targeted airflow.
• Space reserved for both front- and top-mounted 360mm water-cooling radiators plus a 140mm radiator at the rear.
• Perfect for TUF Gaming motherboards: Fan and cable placement optimized for TUF Gaming gear, and ready for perfect cooling control via our Fan Xpert 4 software.

Case Size

Mid Tower

Motherboard Support

EATX (12"x10.9")
ATX
Micro-ATX
Mini-ITX

Drive Bays

3 x 2.5" Bay
4 x 2.5"/3.5" Combo Bay

Expansion Slots

7
2 (additional vertical)

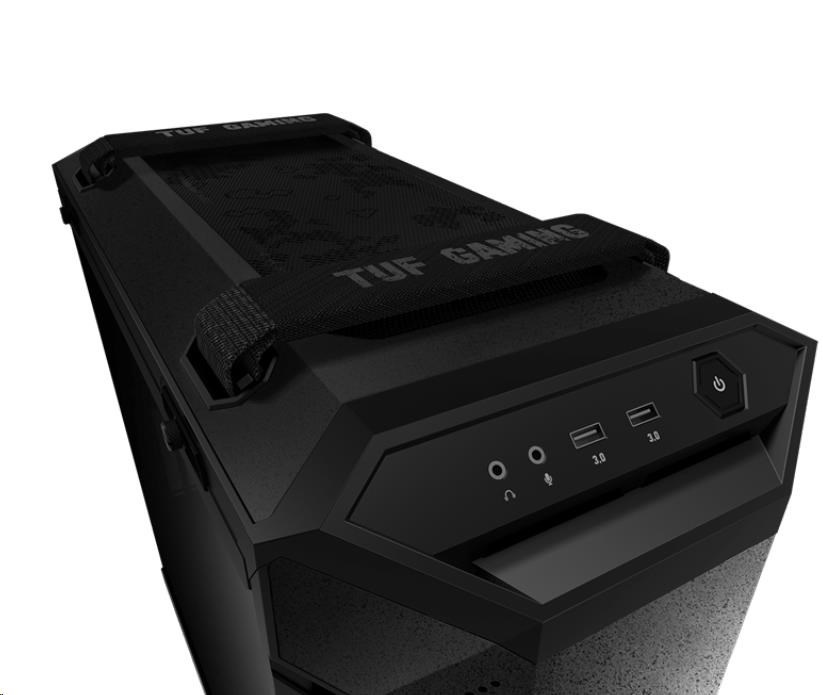

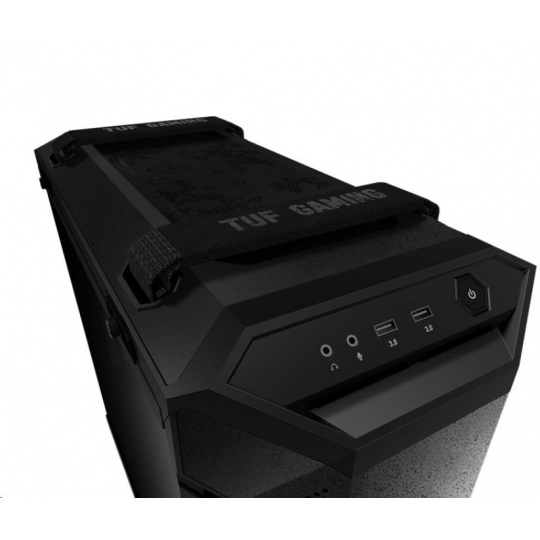

Front I/O Port

1 x Headphone
1 x Microphone
2 x USB 3.1 Gen1

Tempered Glass

Left Side

Radiator Support (Front)

120 mm
140 mm
240 mm
280 mm
360 mm

Radiator Support (Top)

120 mm
140 mm
240 mm
280 mm
360 mm

Radiator Support (Rear)

120 mm
140 mm

Cooling Support (Front)

3 x 120 mm
2 x 140 mm

Cooling Support (Top)

3 x 120 mm
2 x 140 mm

Cooling Support (Rear)

1 x 120 mm
1 x 140 mm

Pre-installed Fans (Front)

3 x 120 mm
RGB

Pre-installed Fans (Rear)

1 x 140 mm
PWM

Maximum CPU Cooler Height

180mm

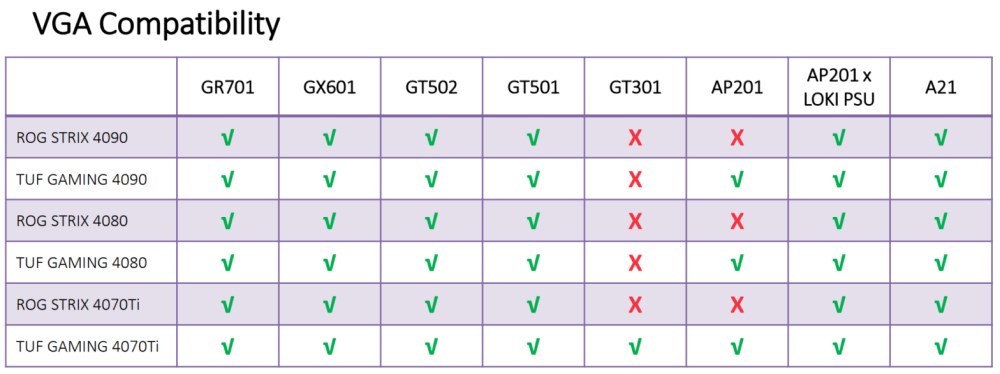

Maximum GPU Length

420mm

Maximum PSU Length

240mm

Removable Dust Filters

Front
Top
Bottom

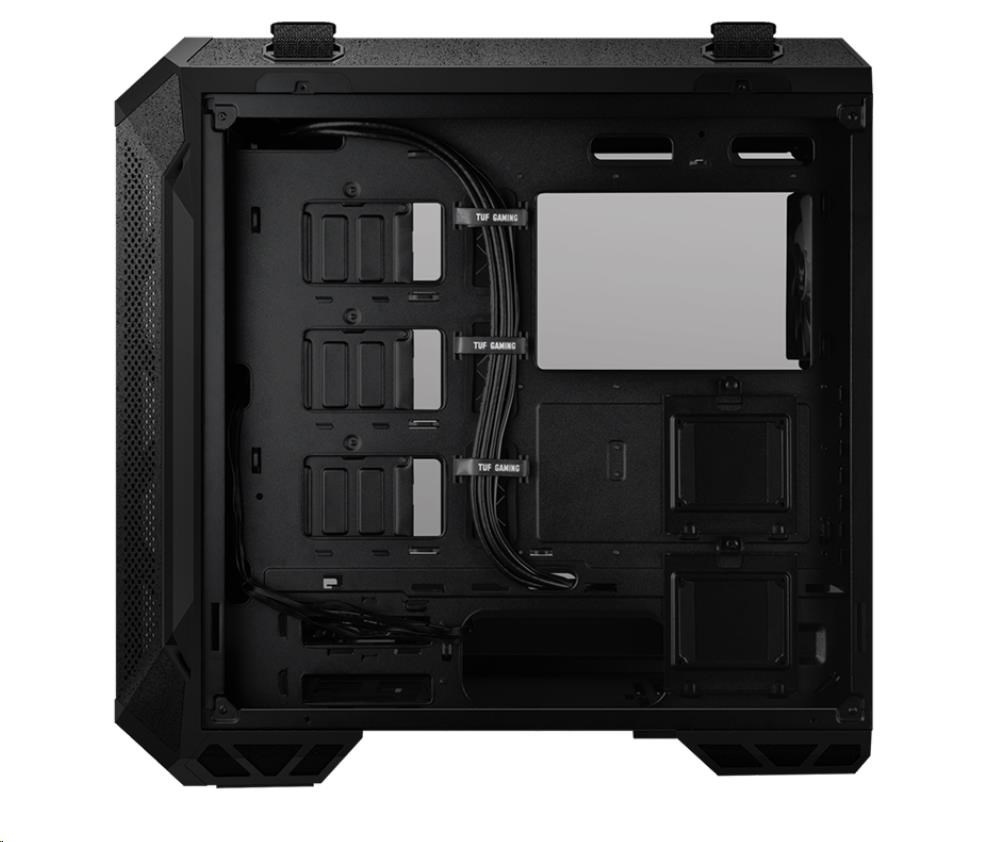

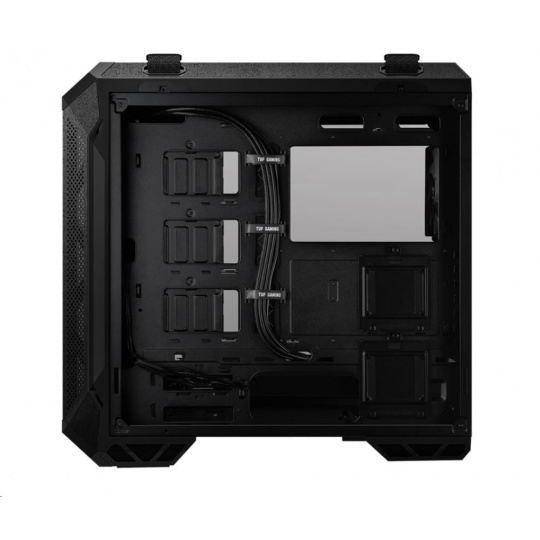

Maximum Cable Management Space

30 mm

Dimensions

552 x 251 x 545 mm

Weight

10.5Kg
