Club3D síťový přepínač - Switch, HDMI KVM Switch - Dual HDMI 4K 60Hz

Name: Club3D síťový přepínač - Switch, HDMI KVM Switch - Dual HDMI 4K 60Hz
Brand: Club 3D
SKU: 795202
Price: 3161 CZK
Availability: InStock

-18%

Kód: 795202

Kód dod.: CSV-1382

EAN: 8719214472245

Záruka: 24 Měsíc(ů)

Výrobce: Club 3D

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

Club3D síťový přepínač - Switch, HDMI KVM Switch - Dual HDMI 4K 60Hz

HDMI KVM SWITCH FOR DUAL HDMI 4K 60Hz

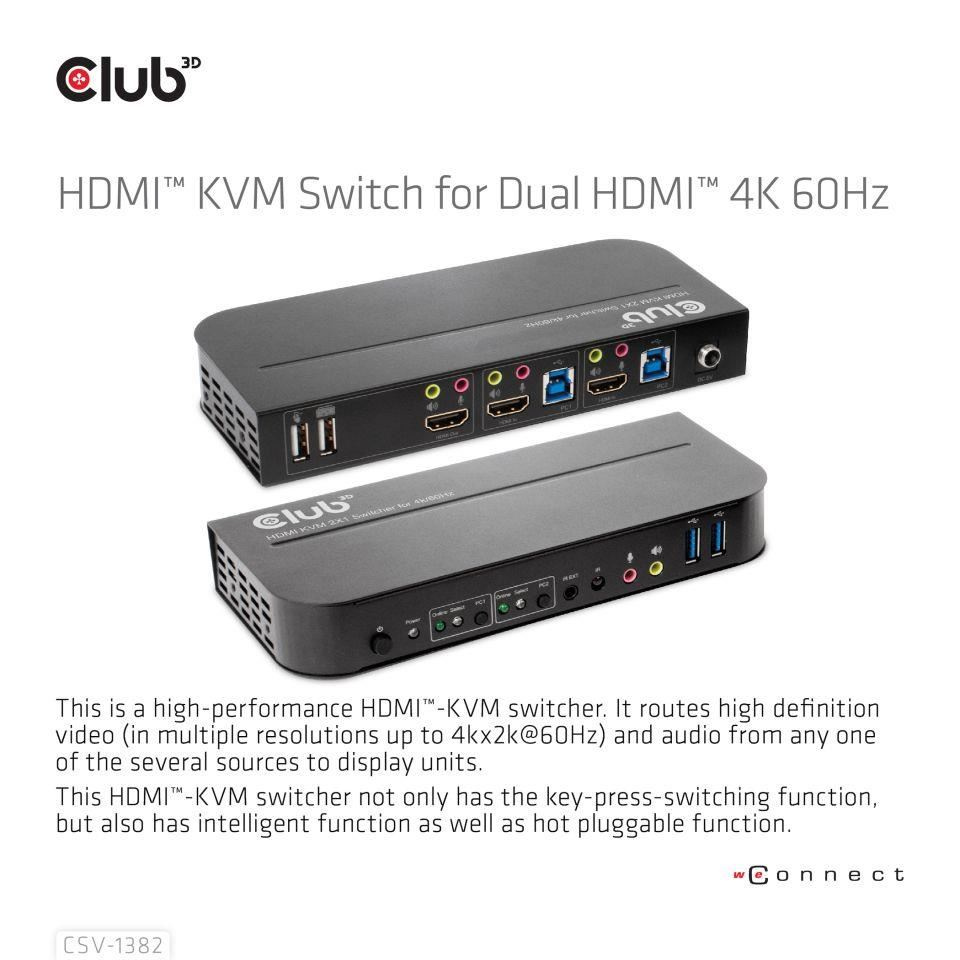

The CSV-1382 is a high performance HDMI™ KVM (Keyboard Video and Mouse) switcher. It routes high definition videos up to 4096x2160 at 60Hz resolution and audio from any HDMI™ source to any HDMI™ supported display. This HDMI™ KVM switcher not only has the key press switching function, but also has an intelligent function as well as hot pluggable function.

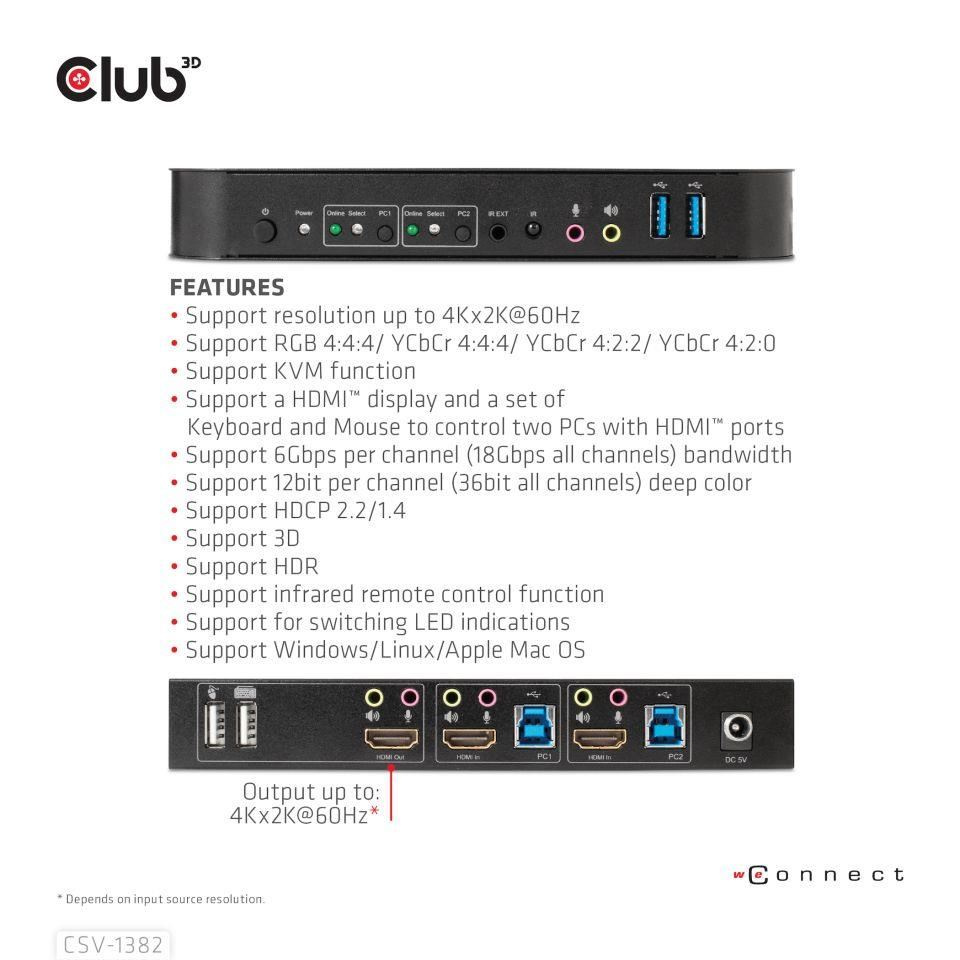

Support resolution up to 4Kx2K@60Hz
Support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
Support KVM function

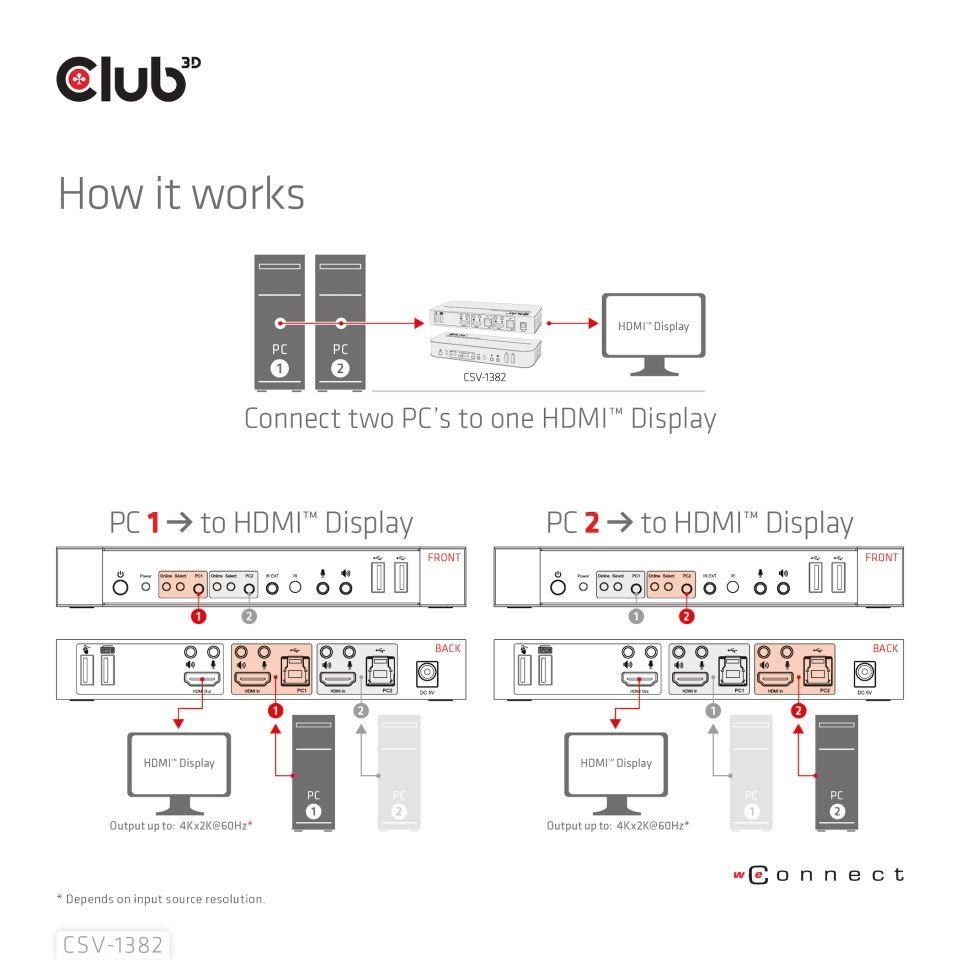

Support a HDMI™ display and a set of Keyboard and Mouse to control two PCs with HDMI™ ports
Support 6Gbps per channel (18Gbps all channels) bandwidth
Support 12bit per channel (36bit all channels) deep color
Support HDCP 2.2/1.4
Support 3D
Support HDR

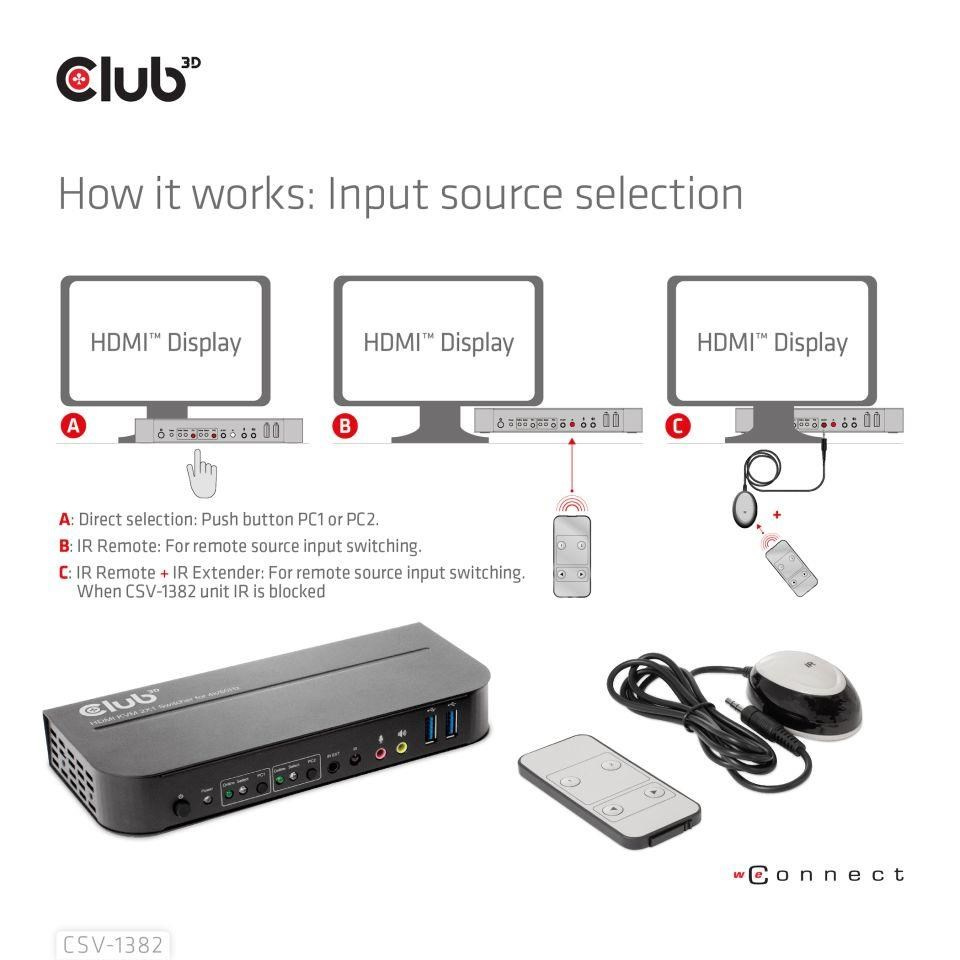

Support infrared remote control function
Support for switching LED indications

TECHNICAL SPECIFICATIONS

Supported resolution	• Max Resolution: 38402160@60Hz, 40962160@60Hz

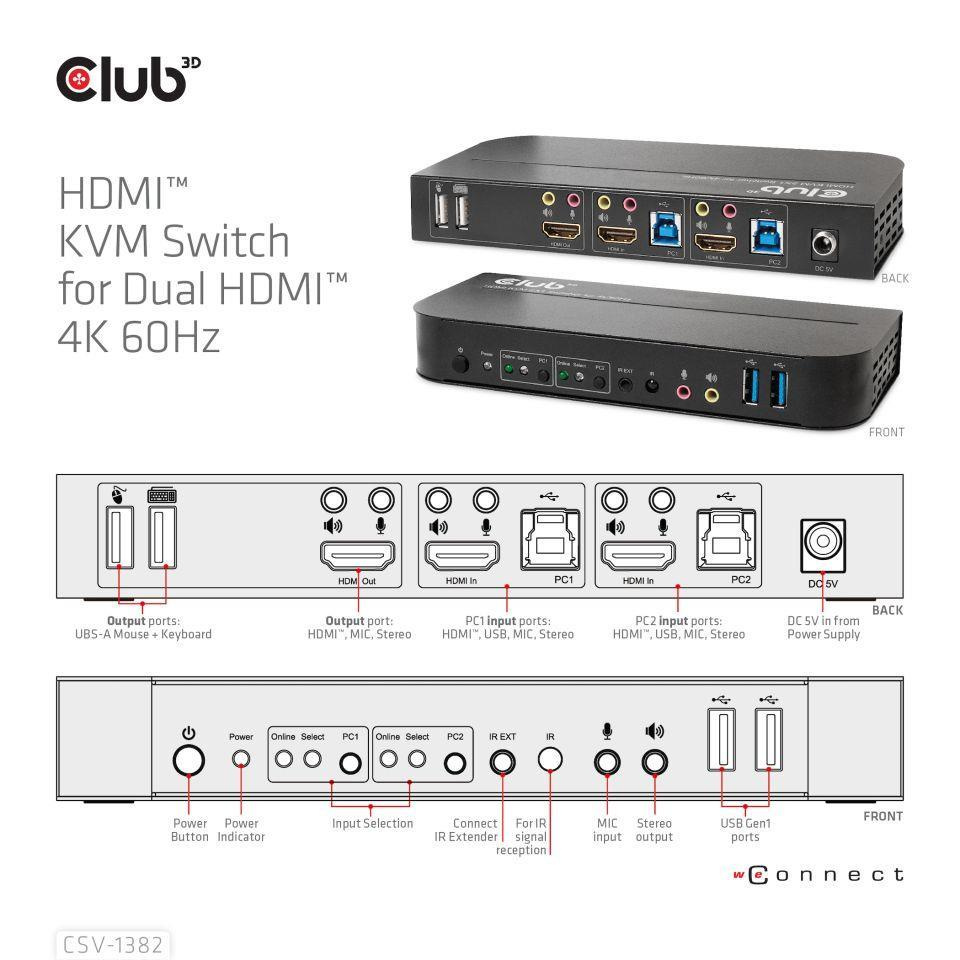

Input	• PC 1: HDMI™ + USB + Mic + Stereo Port • PC 2: HDMI™ + USB + Mic + Stereo Port • 3.5mm Mic Input port • DC 5V - Power Supply Unit
Output	• 1x HDMI™ Female • 1x MIC • 1x Stereo Jack • 1x USB Mouse connection • 1x USB Keyboard connection • 3.5mm Stereo port
OS Support	• Windows/Linux/Apple Mac OS

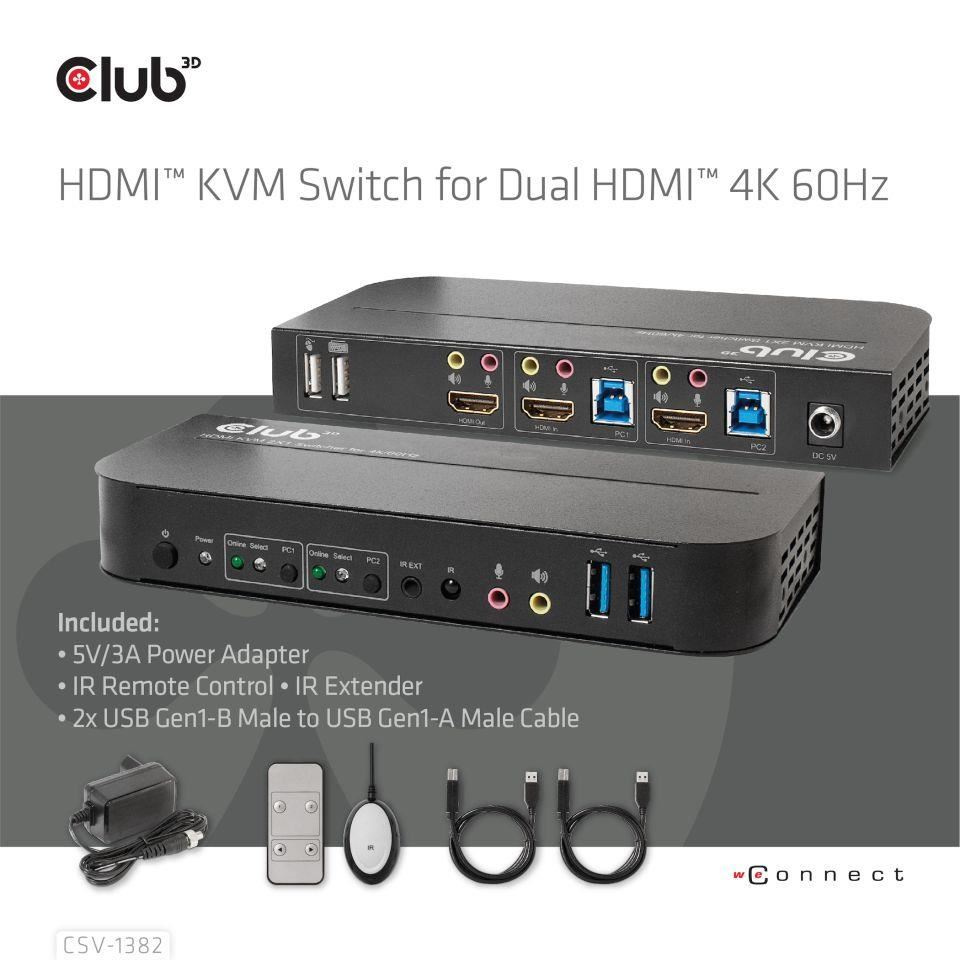

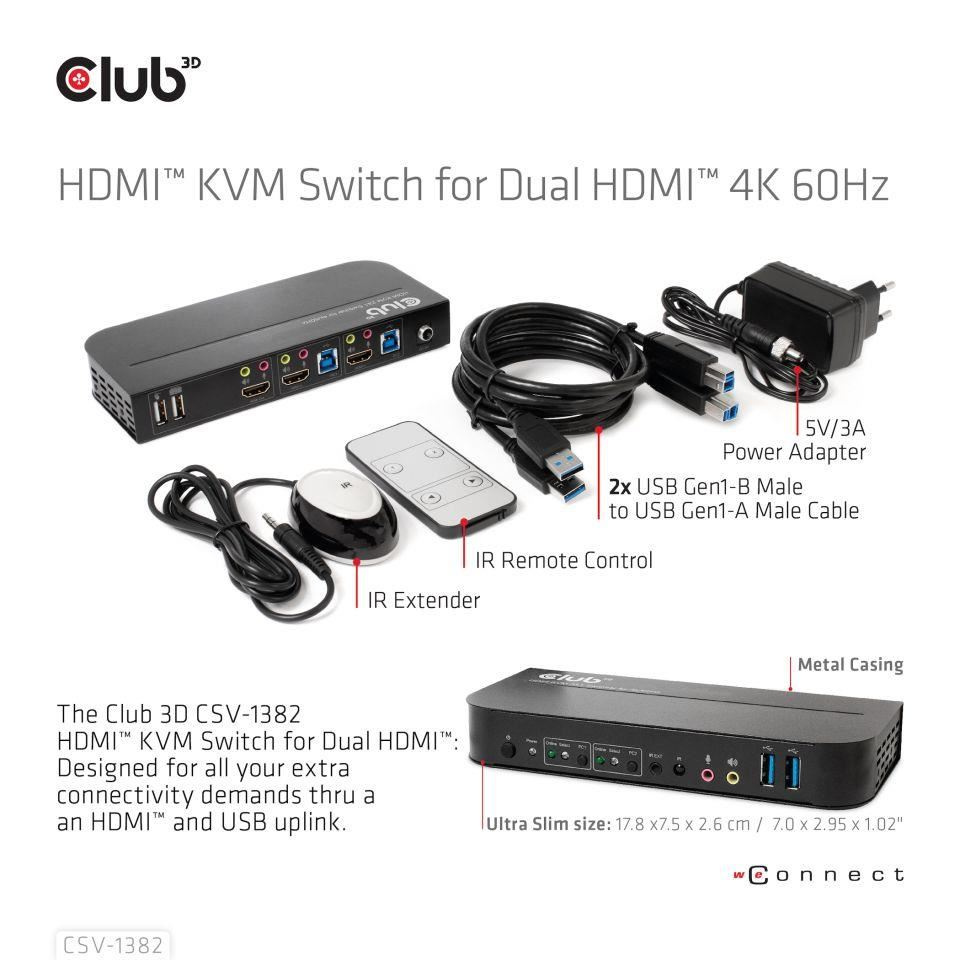

In the box	• CSV-1382 HDMI™ KVM Switch x 1 • External Power Supply 5V 3A x 1 • IR Remote Control x1 • IR Extender x1 • USB Type B Male to USB A Male cable x2 • Quick Installation Guide
Other info	• Box size: 23 x 21 x 6.5 cm / 9.05 x 7.08 x 2.56" • Device size: 17.8 x7.5 x 2.6 cm/ 7.0 x 2.95 x 1.02" • Box Weight: 147 gr / 5.185 oz • Device Weight: 365 gr / 12.875 oz • USB Type B Male cable Weight: 54 gr / 1.91 oz - 2x 108 gr / 3.81 oz • IR Remote Control incl. battery Weight: 16 gr / 0.57 oz • IR Extender Weight: 33 gr / 1.16 oz • Power Adapter Weight: 107 gr / 3.77 oz • LDPE Bag Weight: 6 gr / 0.21 oz • Total Weight: 783 gr / 27.62 oz • Meets ROHS, FCC, and CE EMI requirements

In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
