FRACTAL DESIGN vodní chladič Celsius S36, 3x120mm, LGA1851, AM5
Kód:
1208154
Kód dod.:
FD-WCU-CELSIUS-S36-BK
EAN:
7350041084464
Záruka:
5 Rok(ů)
Výrobce:
FRACTAL DESIGN
Popis a parametry

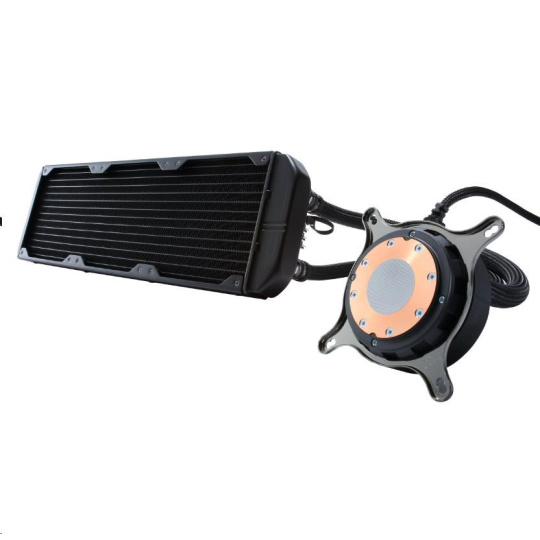

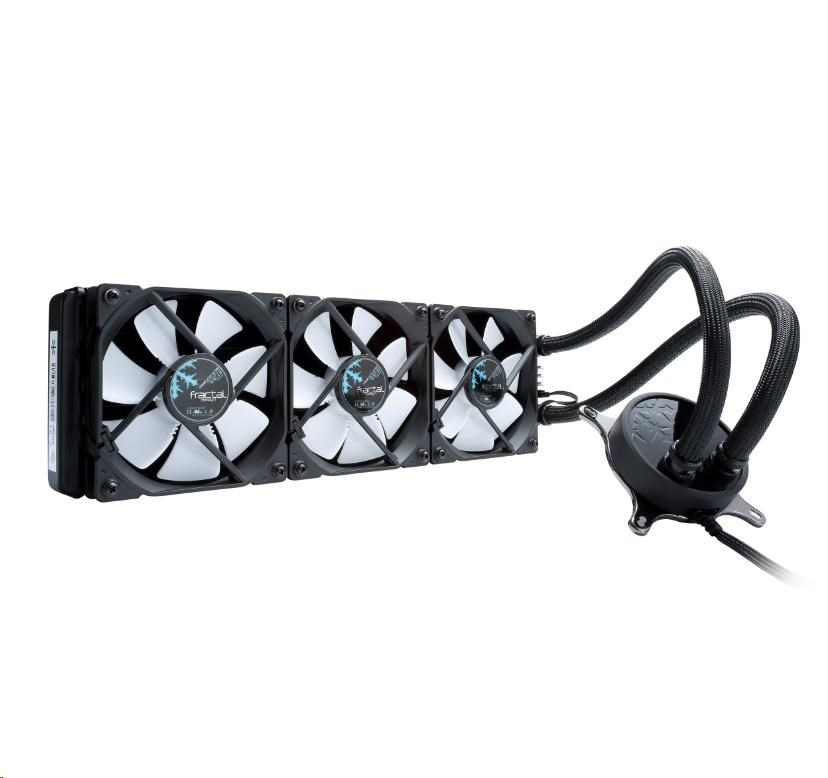

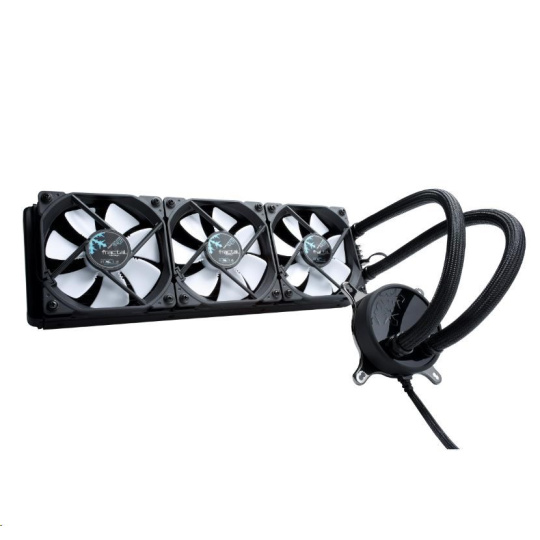

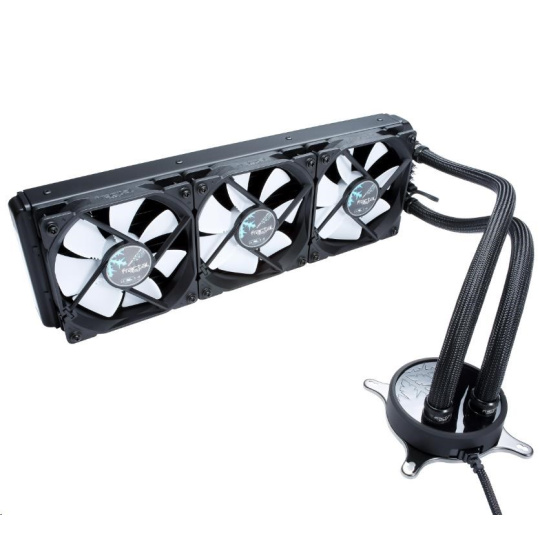

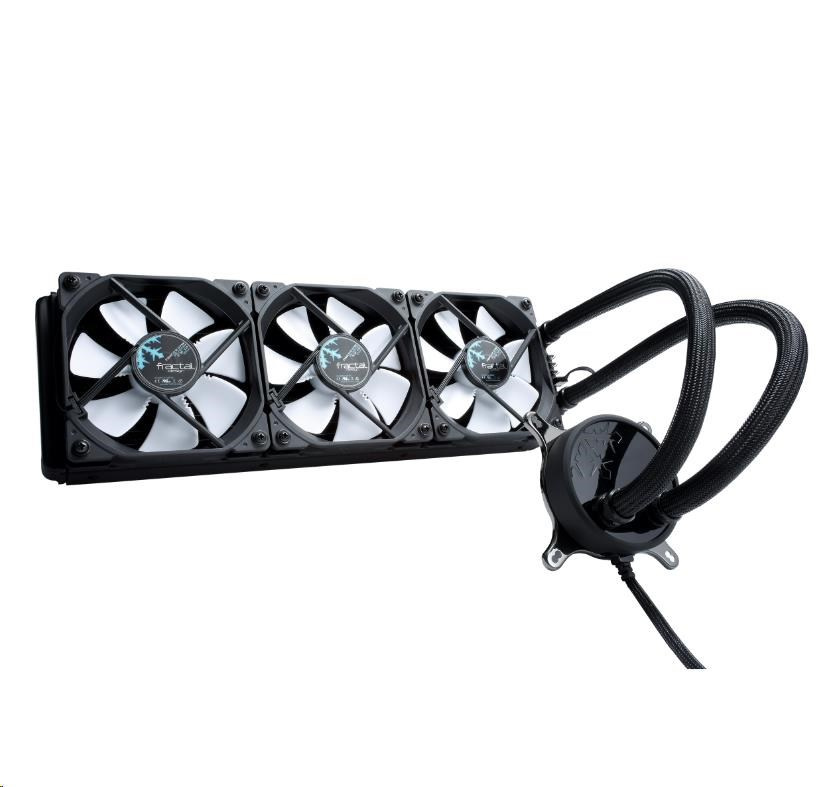

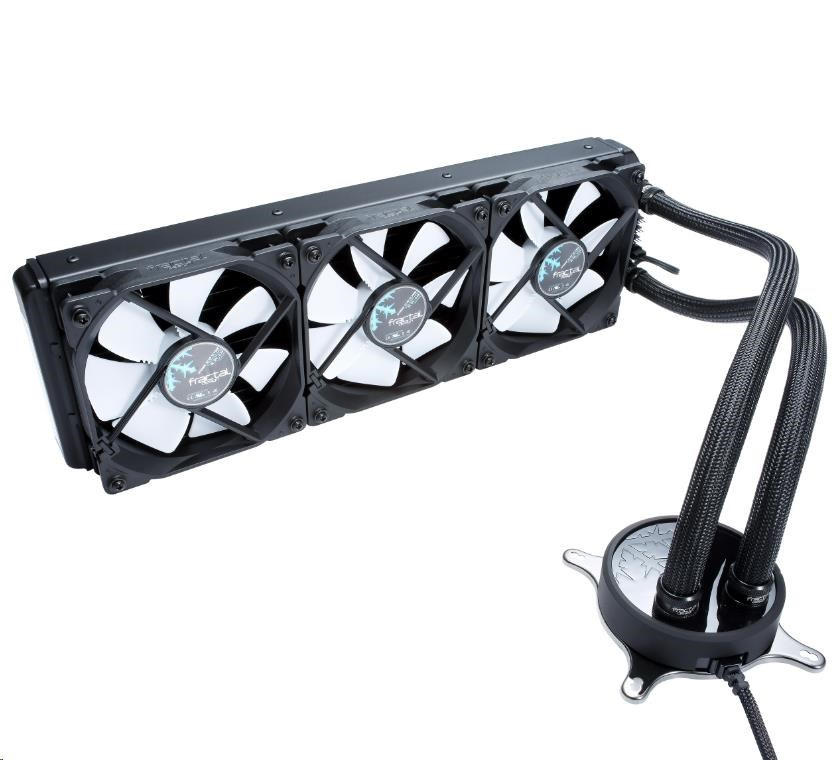

FRACTAL DESIGN vodní chladič Celsius S36, 3x120mm, LGA1851, AM5
Celsius S36
The Celsius series is all about delivering the best possible cooling with the least possible noise. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5.
- Smart temperature-controlled mode adjusts fan/pump speeds in real-time
- PWM mode enables precision manual tuning for any situation
- Included PWM fans with wide speed adjustment range (500-2000 RPM)
- Compatible with LGA 1851 and AM5
TECHNICAL SPECIFICATIONS

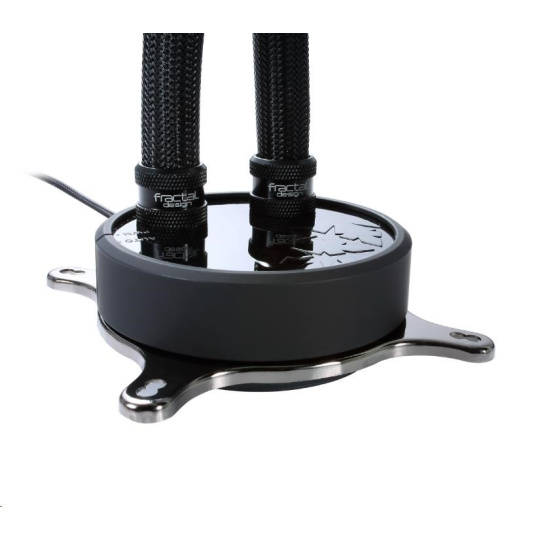

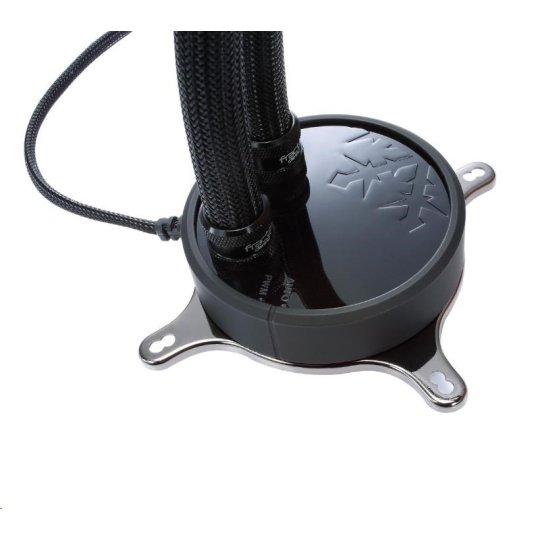

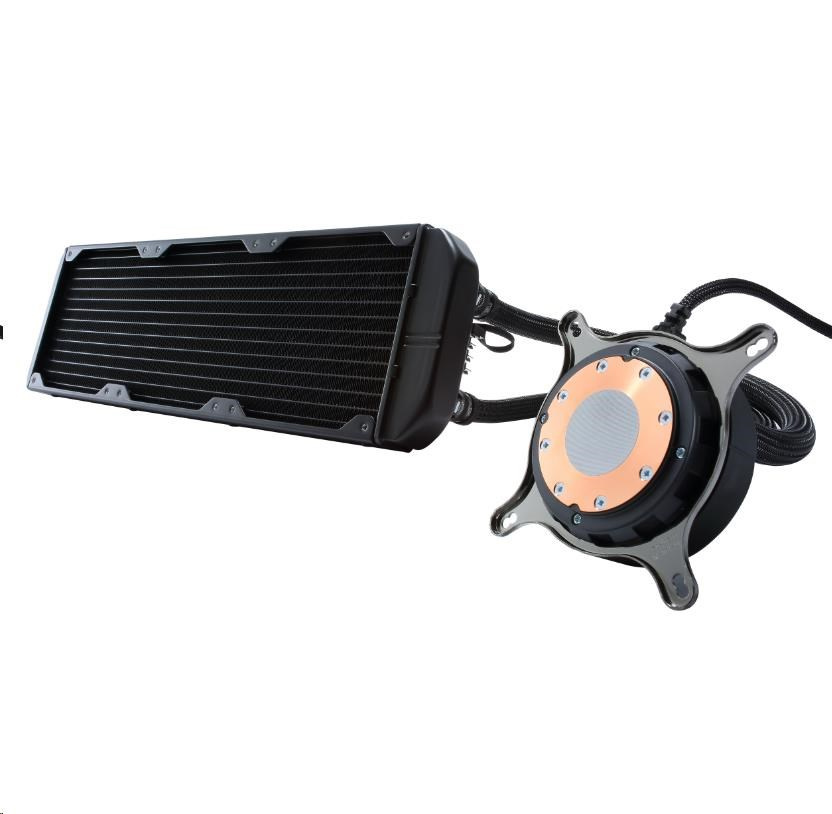

| Coldplate technology | Fifth generation |
| Coldplate material | Copper |
| Additional sound dampening | Integrated |
| Thermal paste | Pre-applied, high thermal conductivity |
| Sockets supported (Intel) | 1851, 1700, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-v3, 2066 (via included 2011-v3 kit) |
| Sockets supported (AMD) | AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box) “CPU brackets and screws may vary due to manufacturer revisions.” |
| Tube length | 400 mm |
| Tube material | Sleeved low-permeability rubber tubes |

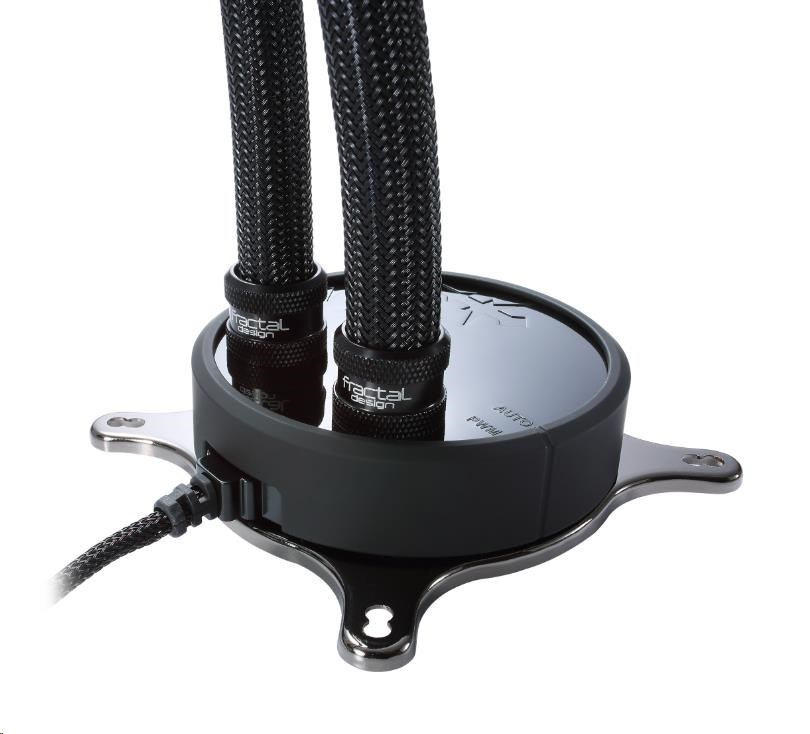

| Fittings, block side | Durable metal fittings, non-removable |
| Fittings, radiator side | Durable metal fittings, G 1/4" thread |
| Fan control | Integrated dual mode |
| Warranty | 5-year pre-expansion (Post-expansion, only individual components of the Fractal Design Celsius S24 or S36 are covered) |
| Fan specifications | |
| Fan type | Fractal Design Dynamic X2 GP-12 PWM |
| Rotational speed | 500-2,000 RPM |
| Bearing | LLS |
| PWM control | Yes |
| Acoustical noise (full speed) | 32.2 dB (A) |
| Maximum air flow | 148.8 m3/h | 87.6 CFM |
| Maximum static pressure | 2.30 mm H2O |
| Input voltage | 12 V |
| Maximum input current | 0.2 A |
| MTBF | >100,000 hours |
| Pump specification | |
| Rotational speed | 1,950-3,150 RPM |
| Bearing type | Ceramic bearing and shaft |
| PWM control | Yes |
| Acoustical noise (full speed) | 20,0 dB (A) |
| Maximum pressure, 50°C | 1m H2O | 1.45 PSI |
| Input voltage | 12 V |
| Input current (without fans) | 0.15 A |
| Rated input power (with fans) | 9 W |
| MTTF | >50,000 hours |

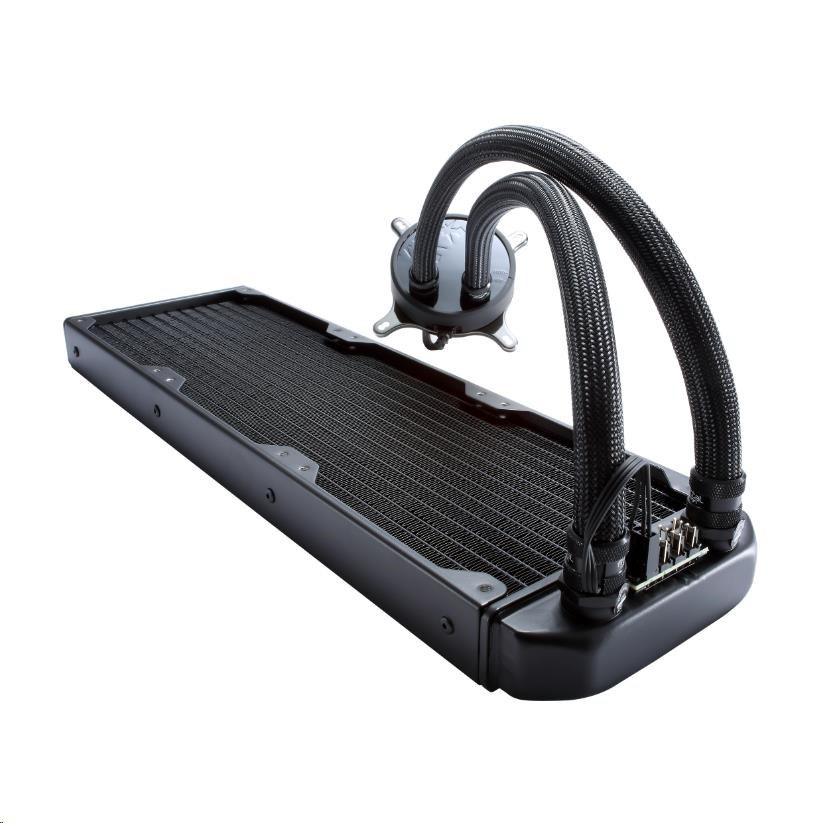

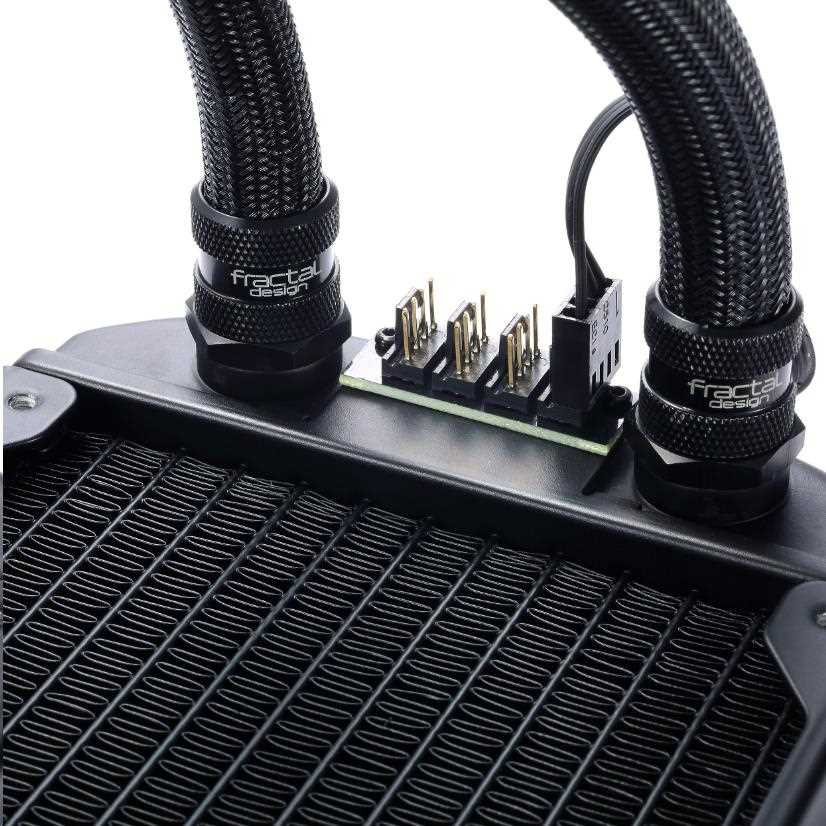

| Radiator specification | |
| Dimensions | 403 x 123 x 30 mm |
| Housing material | Aluminum |
| Fin material | Aluminum |
| Port threads | G 1/4" |
| Fan screw threads | UNC 6-32 |
| Other | |

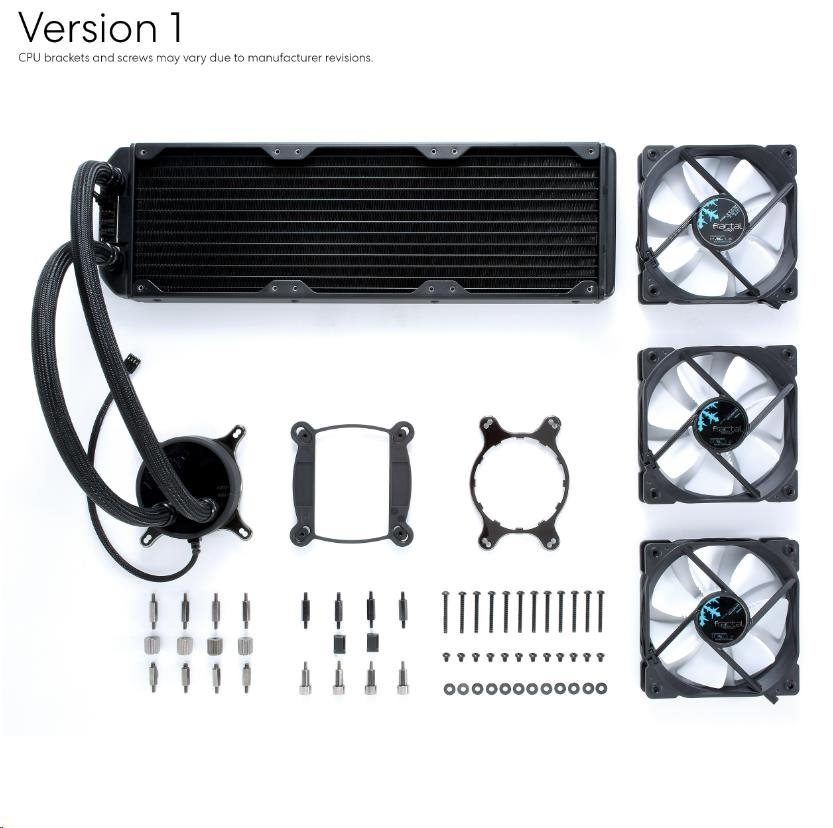

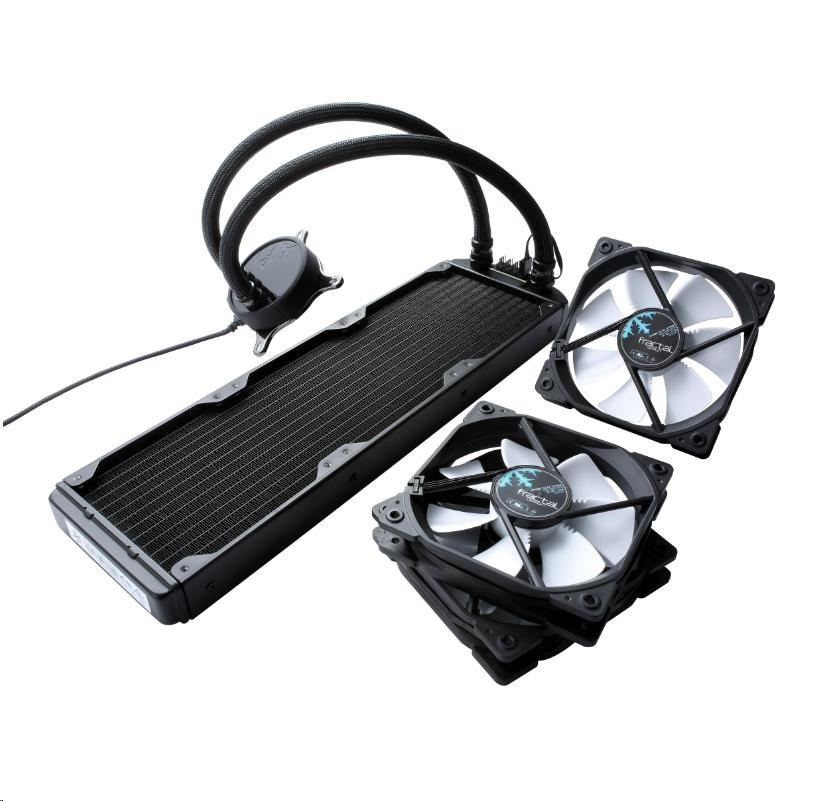

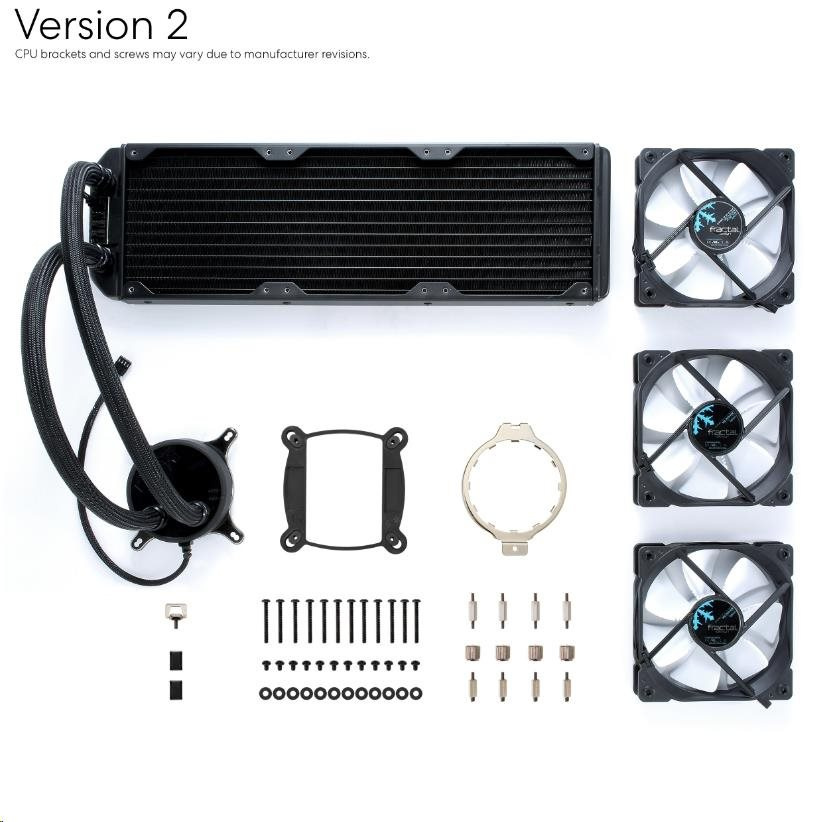

| Package contents | Celsius S36 system, 3x Dynamic X2 GP-12 PWM fans, Multilingual user manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws |
| Package Dimensions | 472 x 144 x 177 |
* Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
.ParametryPorovnání
Využití chladiče
Na procesory
Typ chladiče
Vodní
Velikost ventilátoru
120x120
