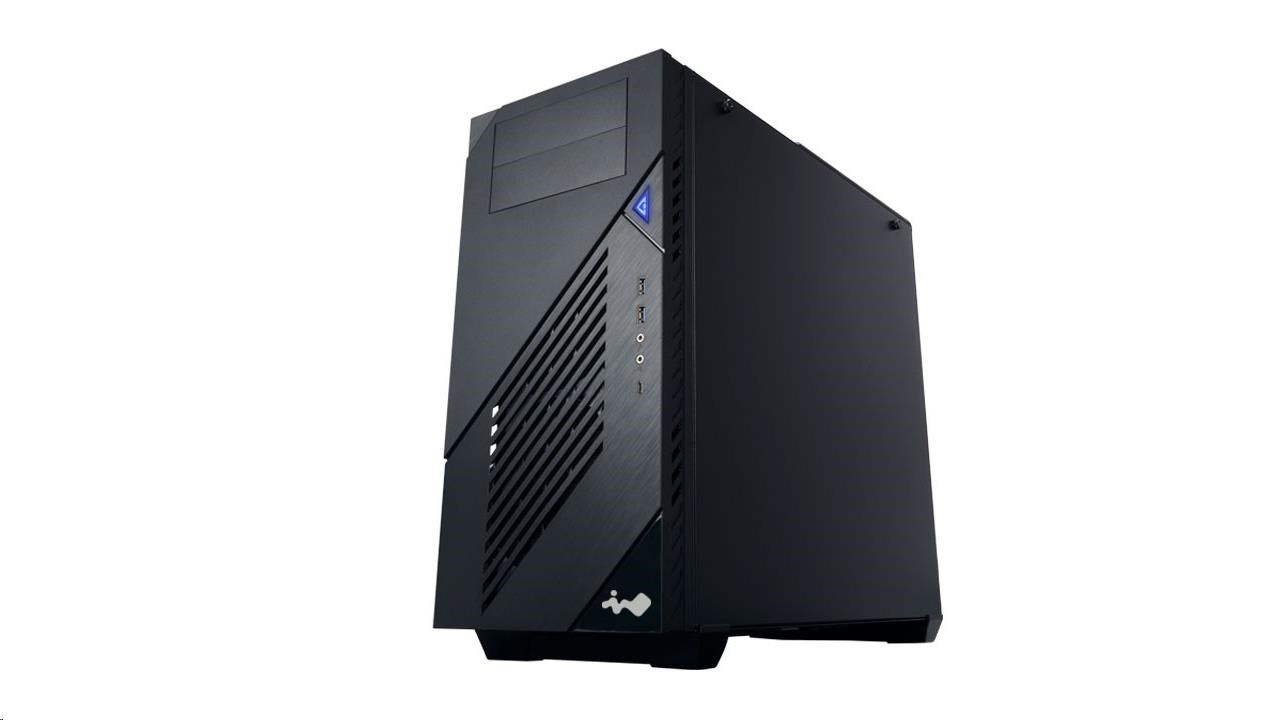

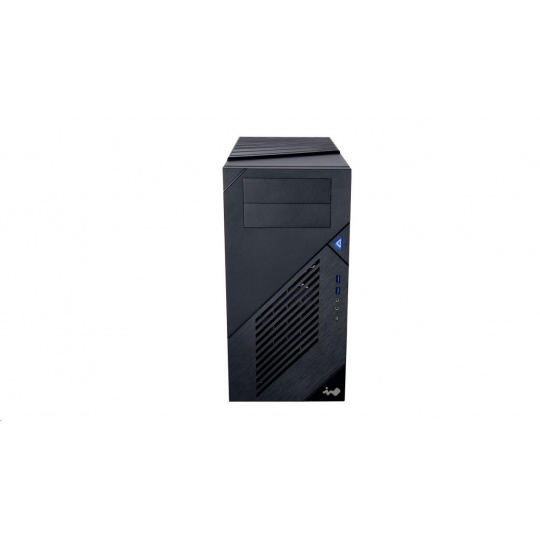

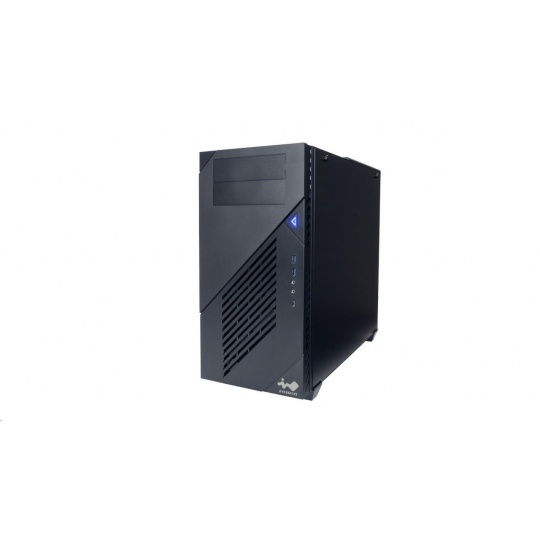

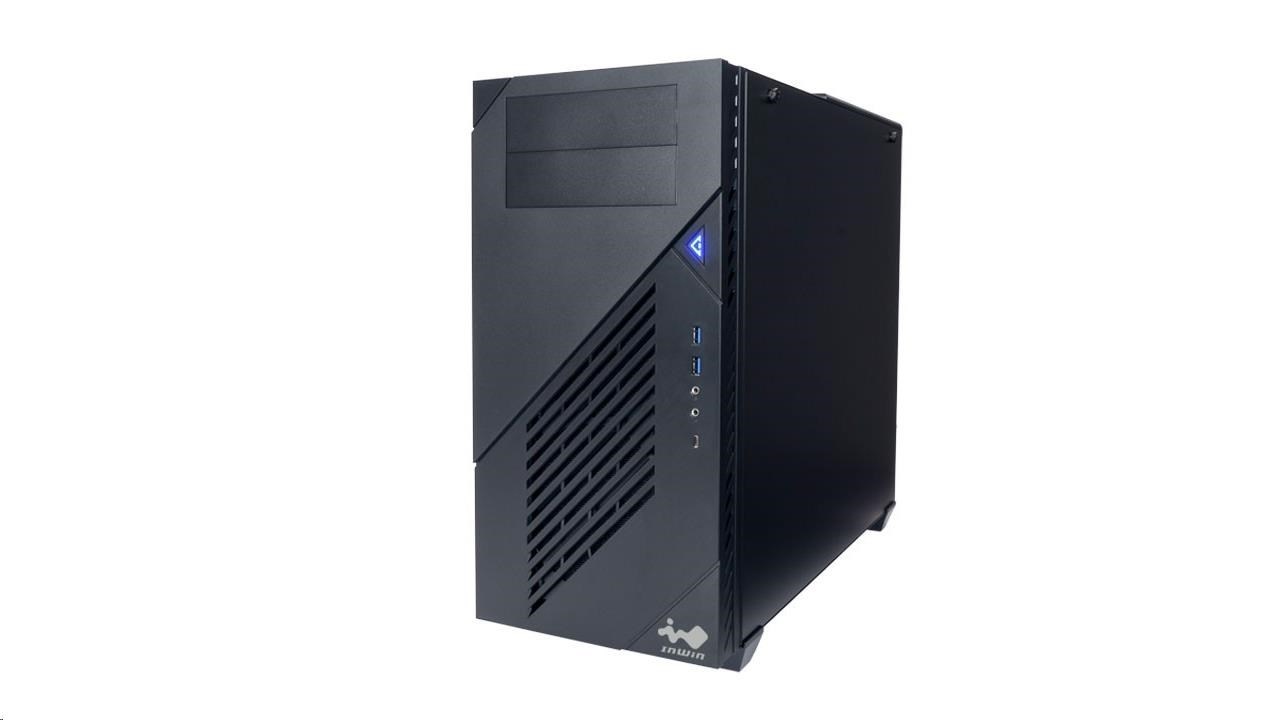

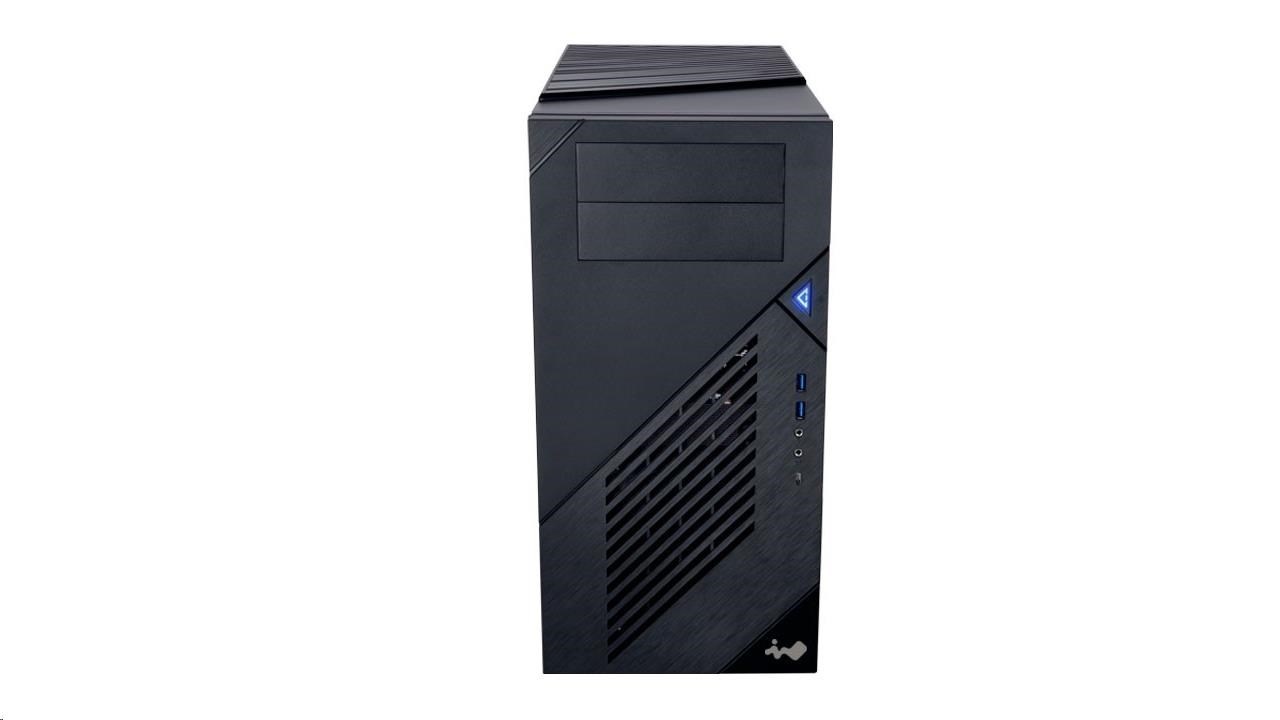

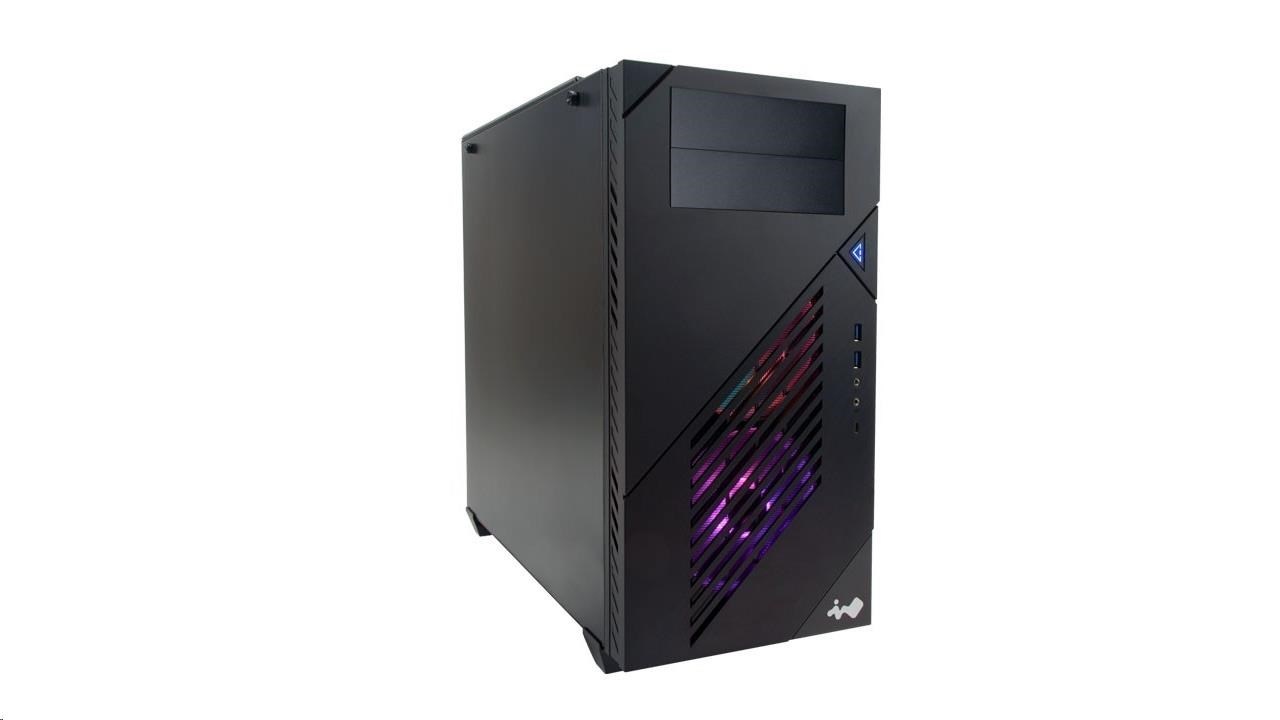

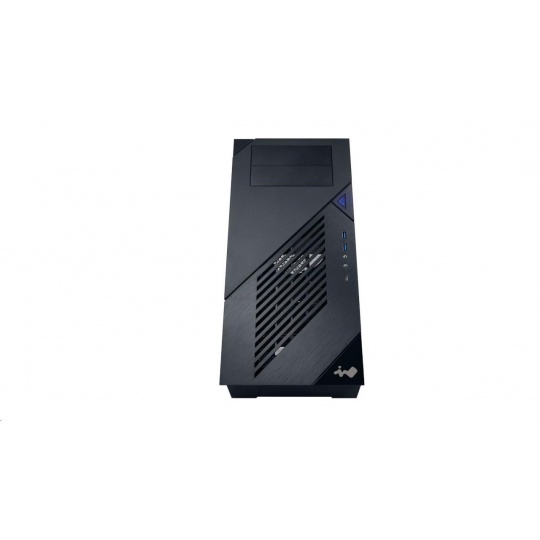

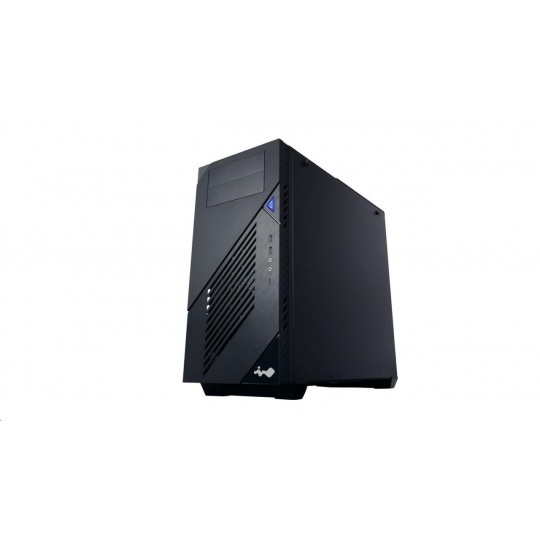

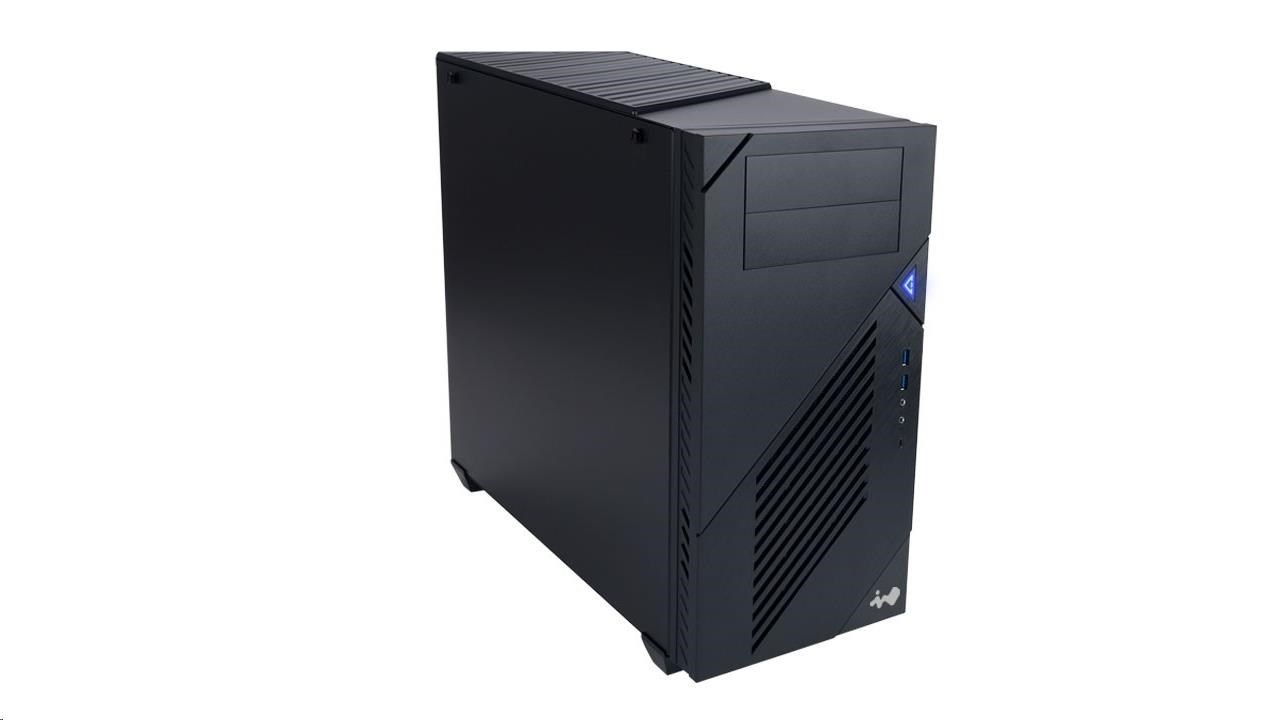

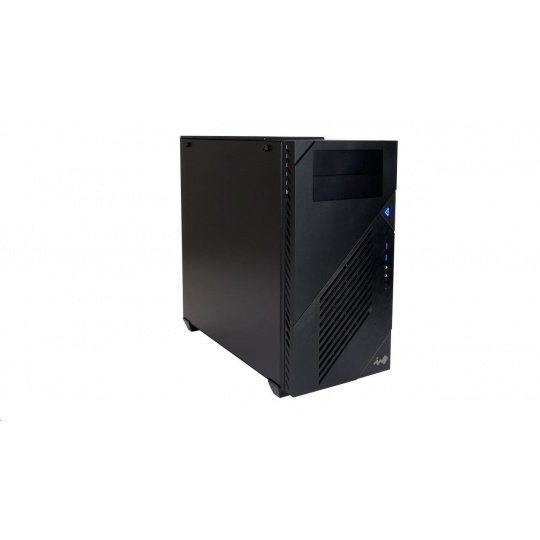

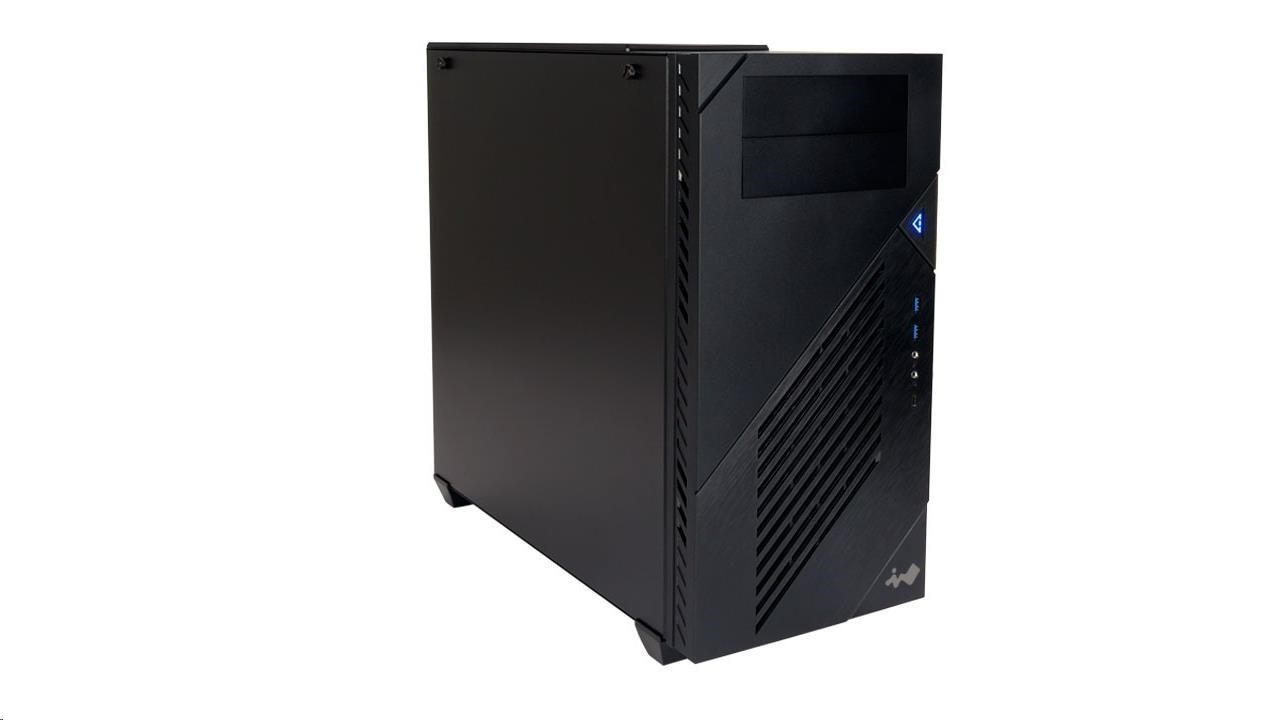

IN WIN skříň C200, mid tower, 166mm fan, 2x2.5", 5x5.25", 1 x USB Type-C, 2x USB 3.0 / HD Audio / Black
IN WIN skříň C200, mid tower, 166mm fan, 2x2.5", 5x5.25", 1 x USB Type-C, 2x USB 3.0 / HD Audio / Black
Studio HQ

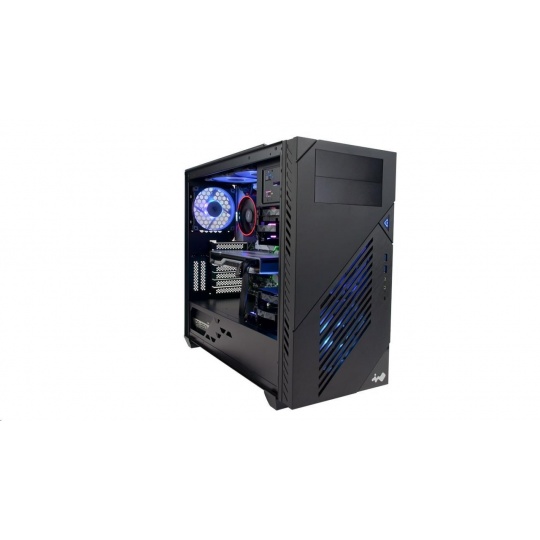

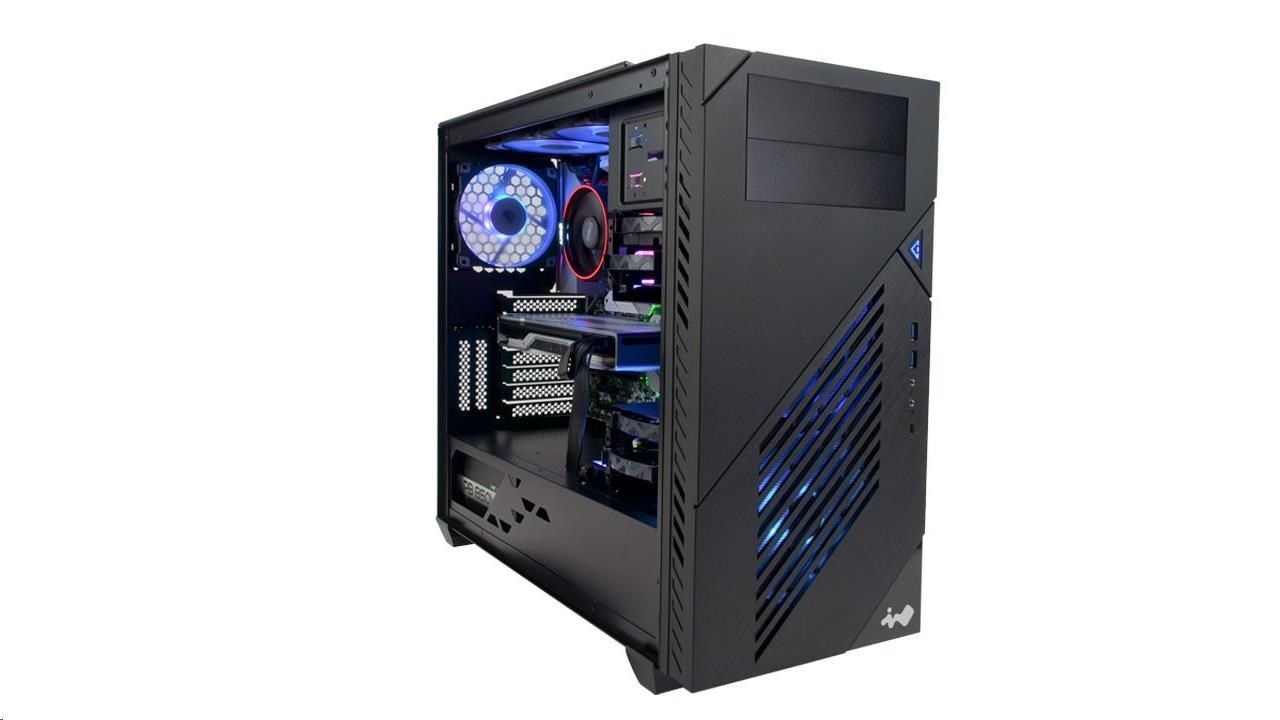

Build a personal/professional studio with the C200. The case is a mid tower structure, and its versatile interior is designed to suit the needs of any content creator.

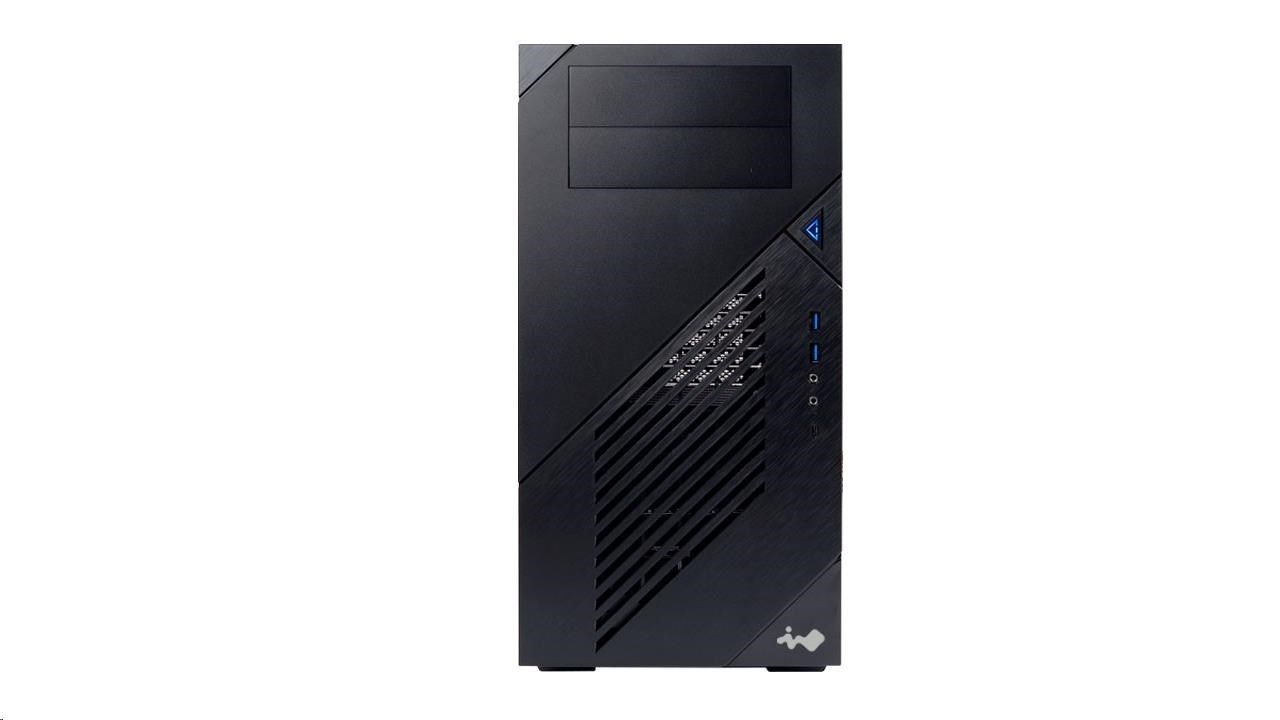

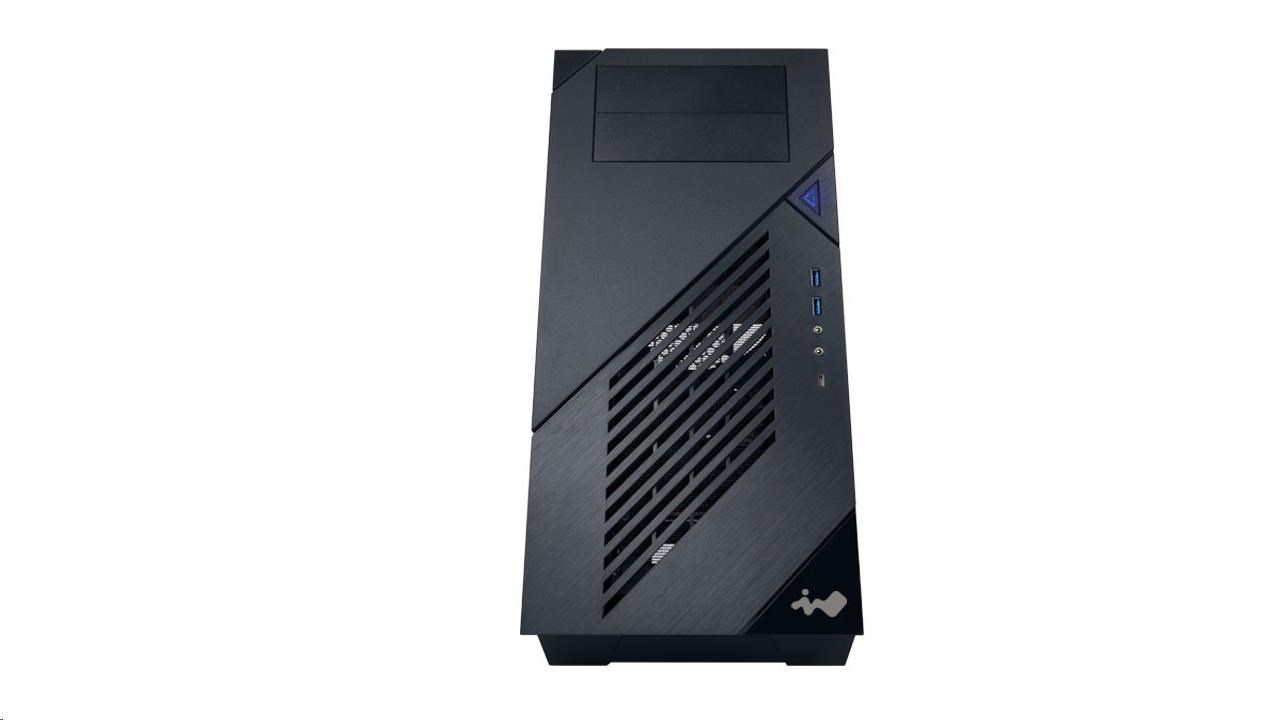

Cool Your Thoughts
Your creations combined with a ton of hardware will need to cooldown a bit. The C200’s front panel design, allows premium airflow performance. So, no need to cool your creativity, we got you covered!
If you build it, it will create!

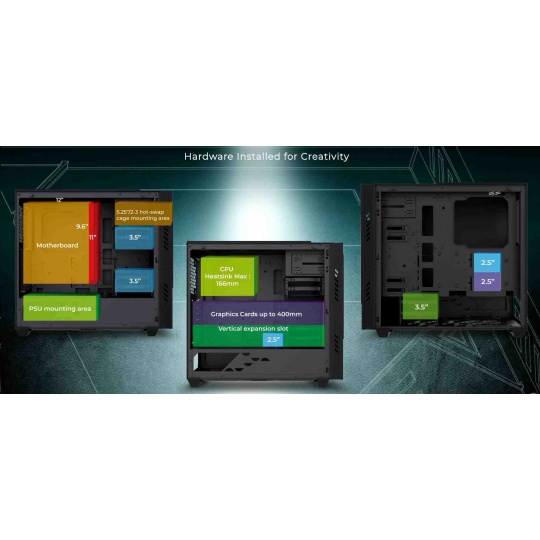

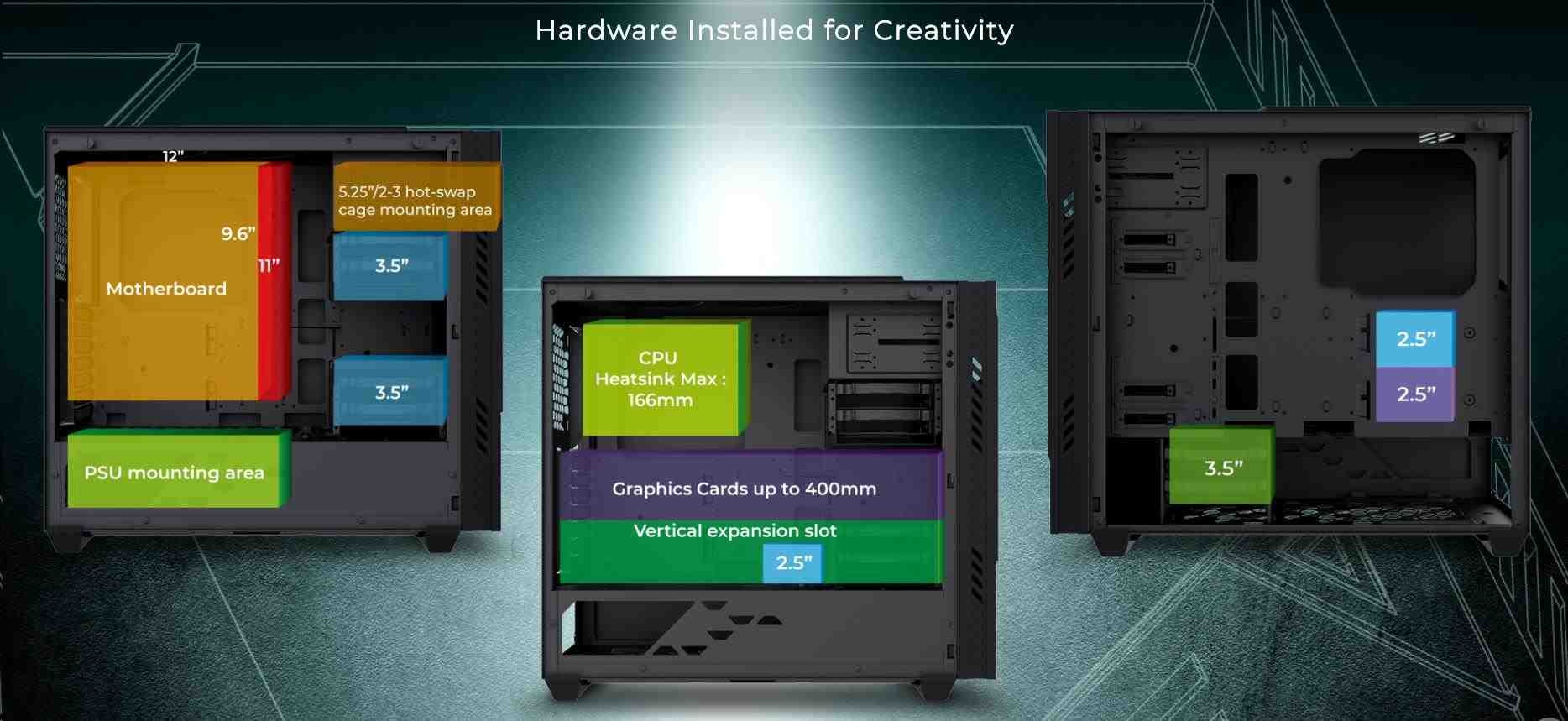

Build your own system with this high compatibility creator chassis.C200 is capable of housing eight drives, two ODDs or use that space for 2-3 hot swappable bays. *2-3 hot-swap drive cage is available upon request for an additional fee.

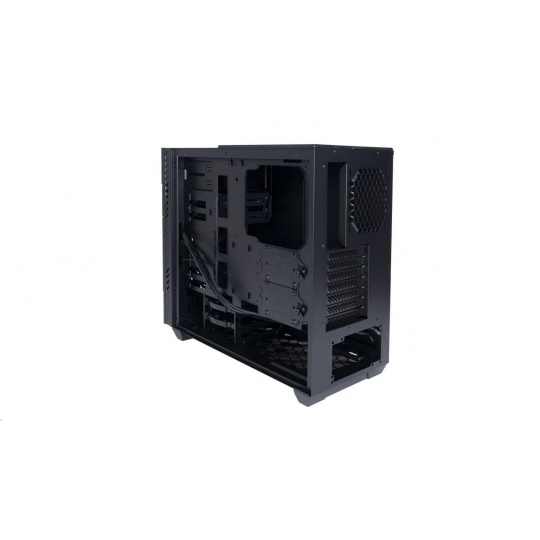

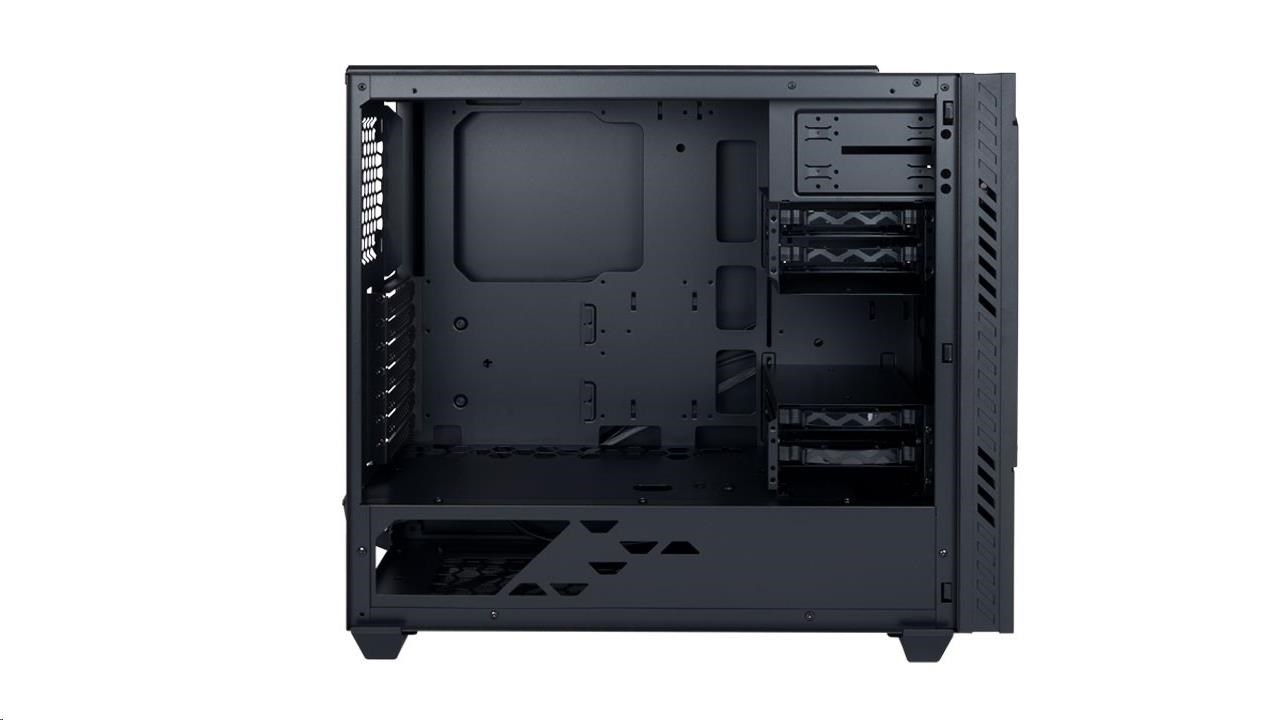

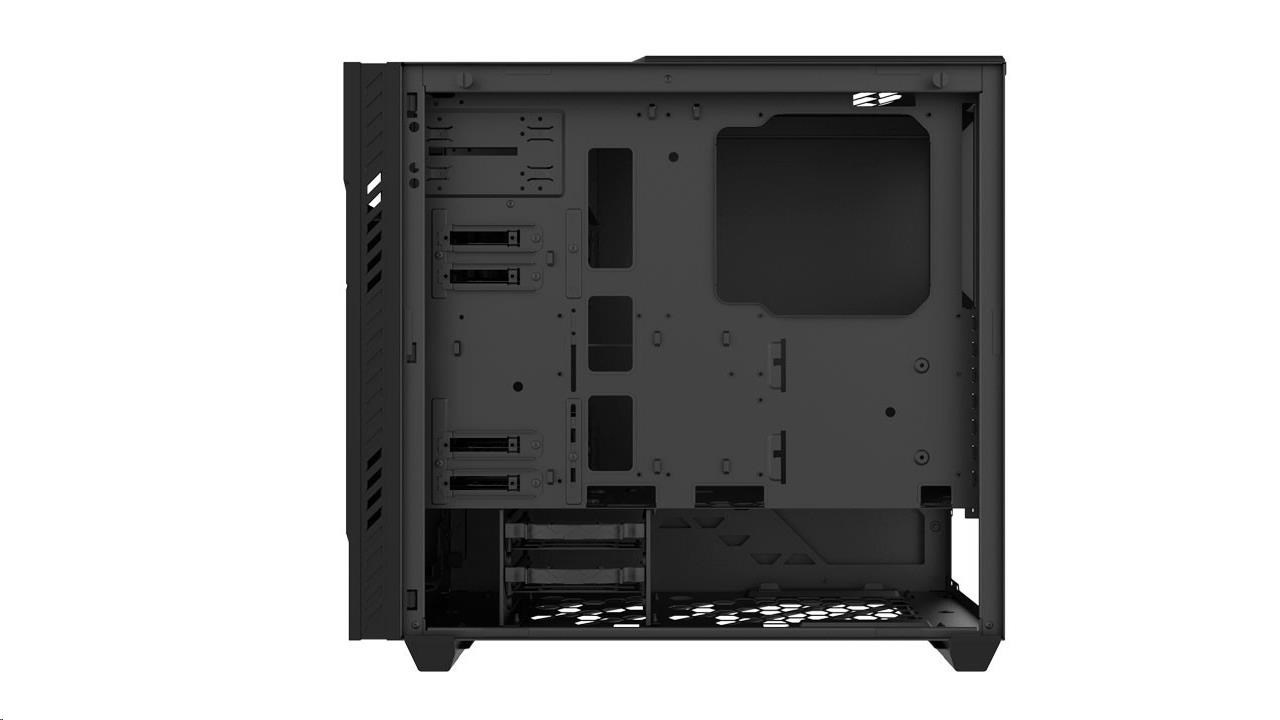

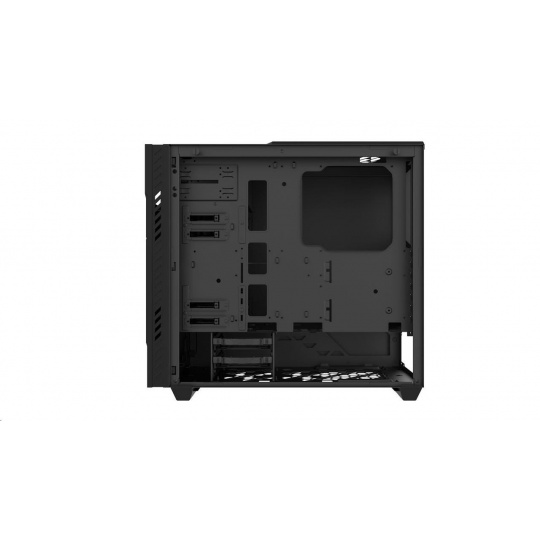

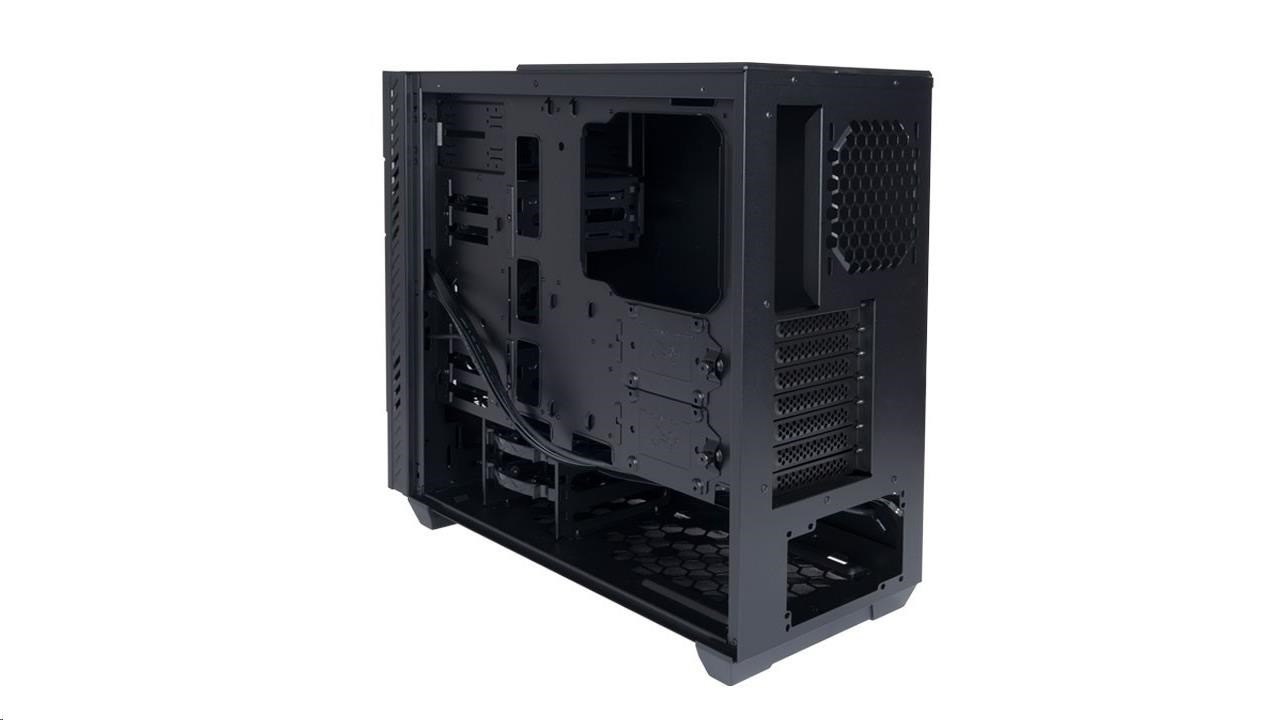

Maximized Interior

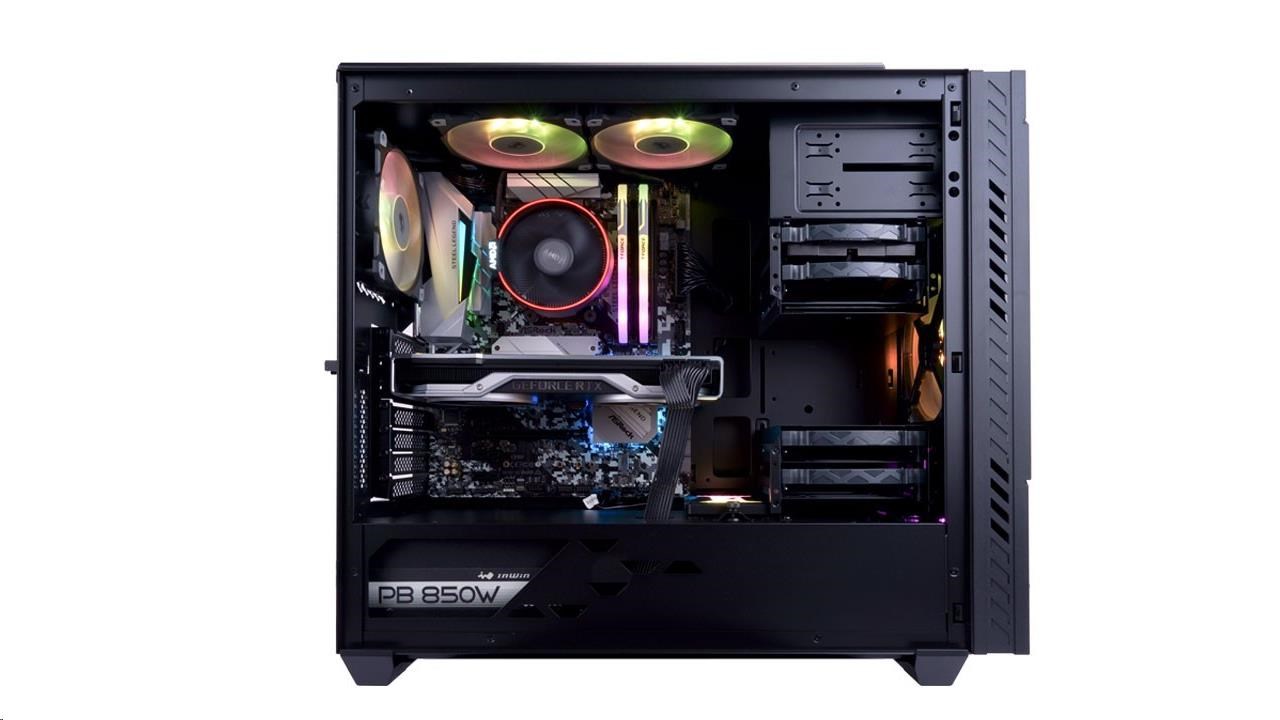

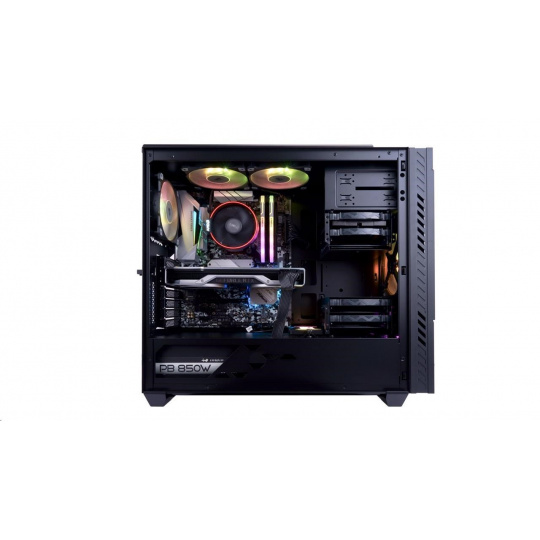

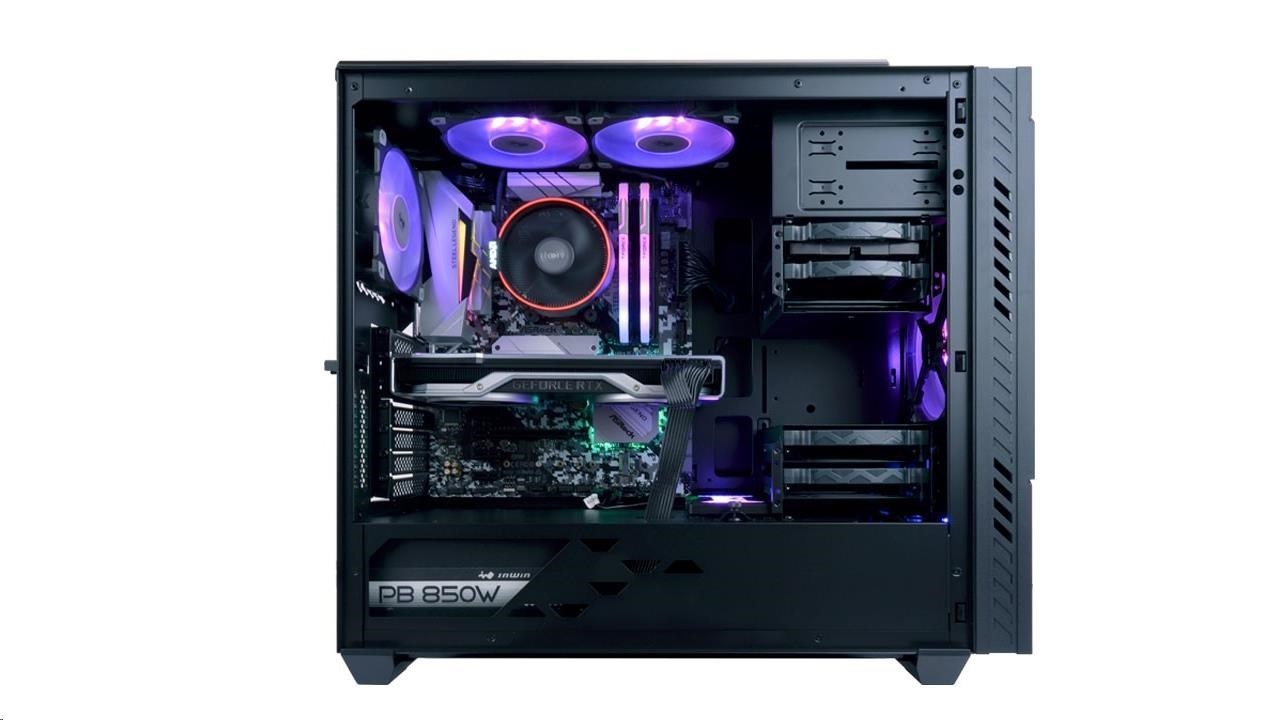

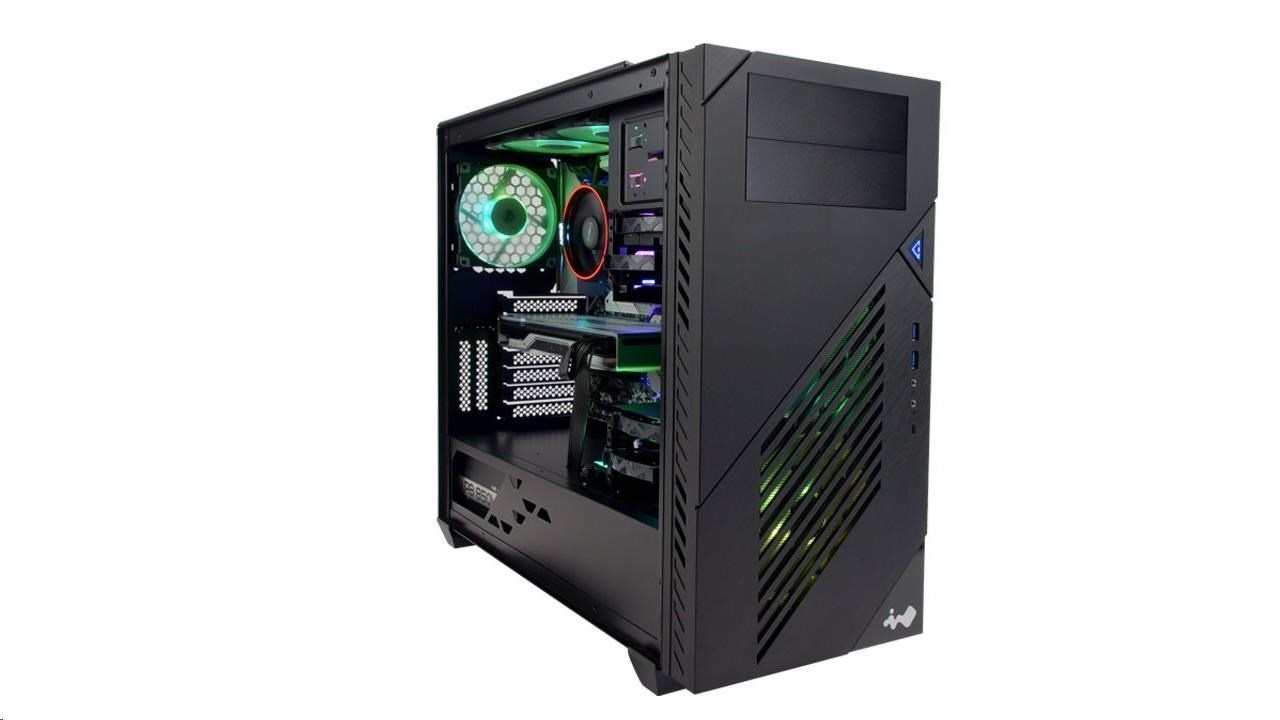

Fill the C200 with high-end hardware! It accommodates up to a 420mm GPU, 166mm heatsink and an E-ATX Motherboard.
TECHNICAL SPECIFICATIONS
| Model | C200 |
| Model Number | IW-CS-C200BLK |
| Color | Black |
| Case Type | Mid Tower |
| Case Materials | SECC, ABS |
| M/B Compatibility | 12” x 11” E-ATX, ATX, Micro-ATX, Mini-ITX *Note: 12’’ x 9.6’’ MBs supported with optional drive cage. |
| Expansion Slots | PCI-E x 7 Vertical PCI-E x 2 (Riser Card Optional, Not Included in Package) |
| Maximum Compatibility | VGA Card Length: 400mm (Maximum) (Length up to 7 x 400mm slots when removing 4 x 3.5’’ HDD Cages ) VGA Card Width: 170mm (Maximum) CPU Heatsink Height: 166mm (Maximum) |
| I/O Ports | 1 x USB 3.1 Gen 2 Type-C 2 x USB 3.0 HD Audio |
| External Drive Bays | 2 x 5.25” or Hot-Swap Drive Cage (3 x 3.5”) |
| Internal Drive Bays | 6 x 3.5” 2 x 2.5”(2 pre-installed, max. up to 3) |
| Thermal Solution Compatibility | 1 x 120mm Rear Fan/120mm Radiator 2 x 120mm/140mm Front Fan 2 x 120mm Top Fan (Only one top fan can be mounted if using the optional drive cage) Numbers of fans pre-installed may vary based on different regions. |
| Power Supply Compatibility | PSII: ATX12V - Length up to 220mm |
| Product Dimensions with Button & Stand (H x W x D) | 470 x 230 x 518.5mm, 18.5” x 9.6” x20.3” |
| Package Dimensions (H x W x D) | 340 x 597 x 575mm 13.4”x 23.5”x 26.4” |
| Net Weight | 7.6 Kg, 16.25lb |
| Gross Weight | 9.6 Kg, 24.5lb |
.
