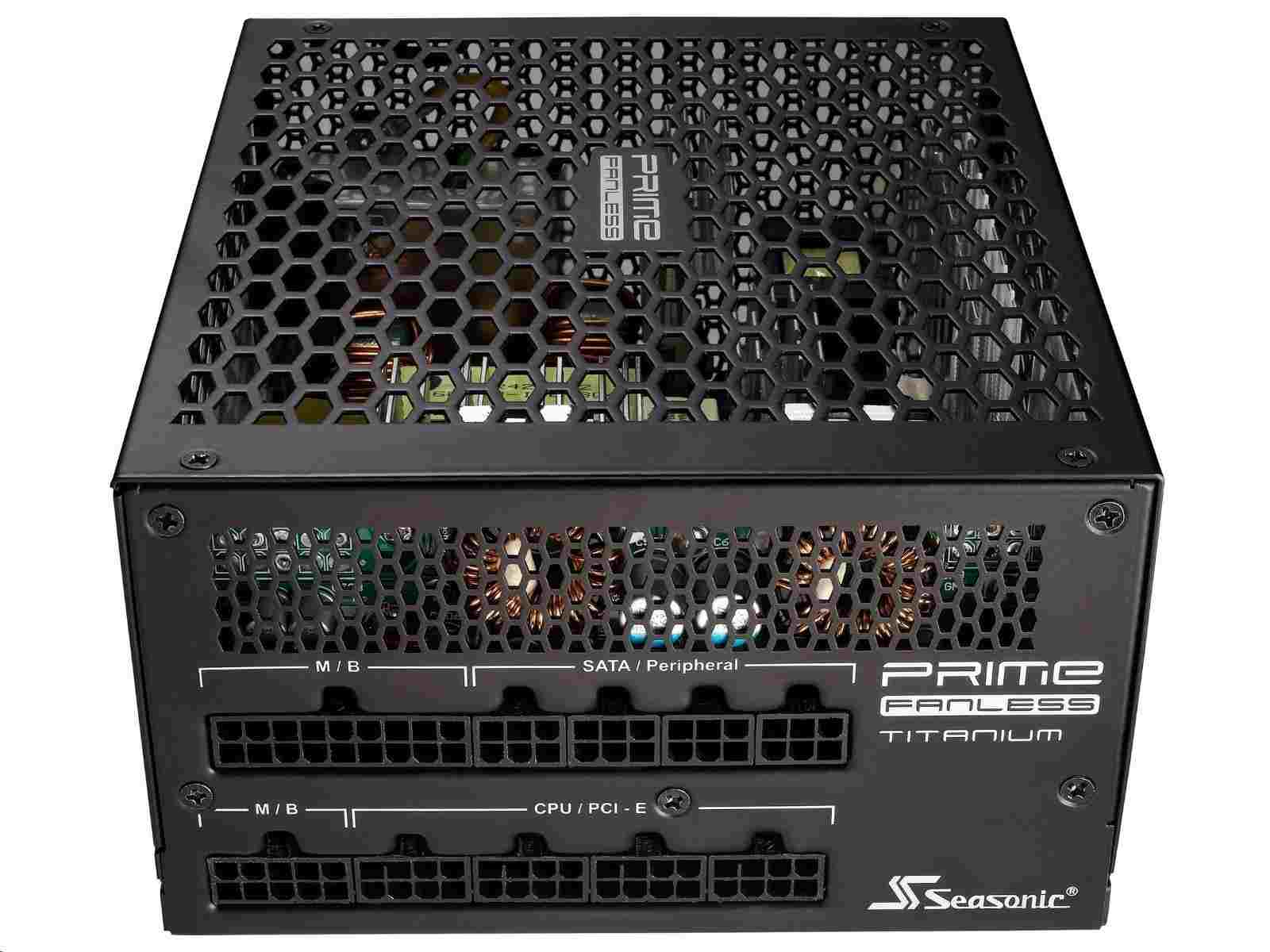

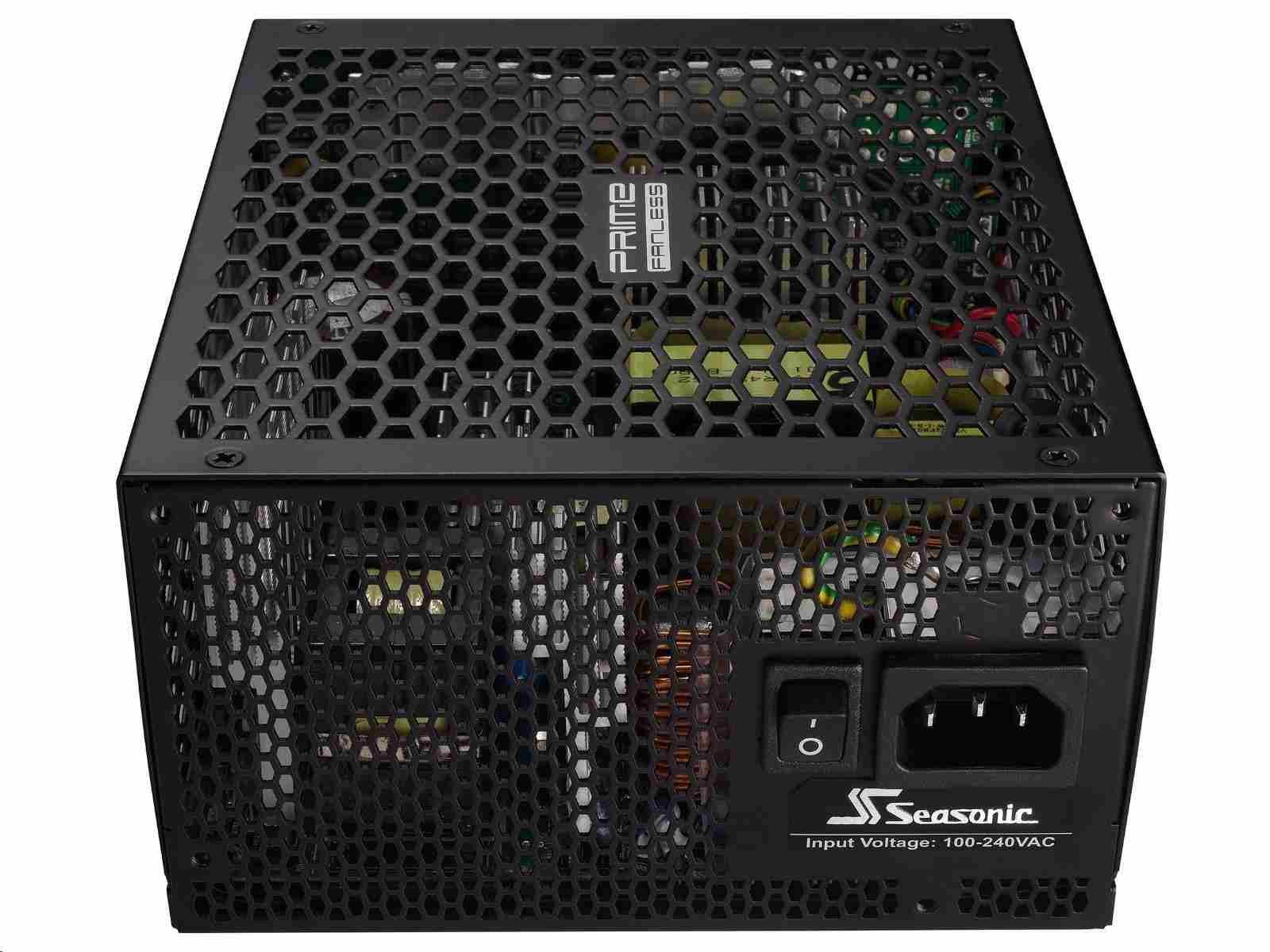

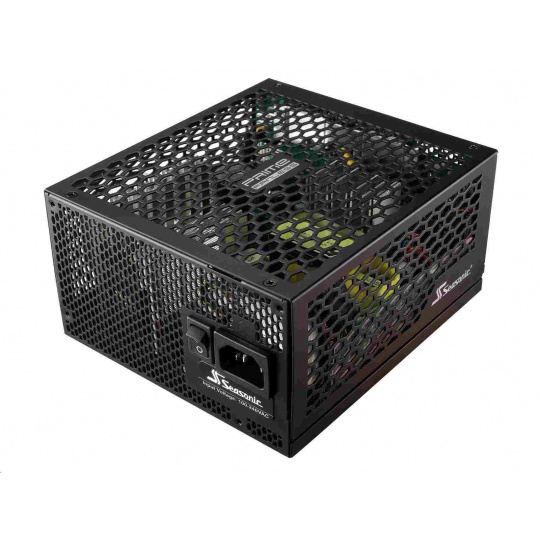

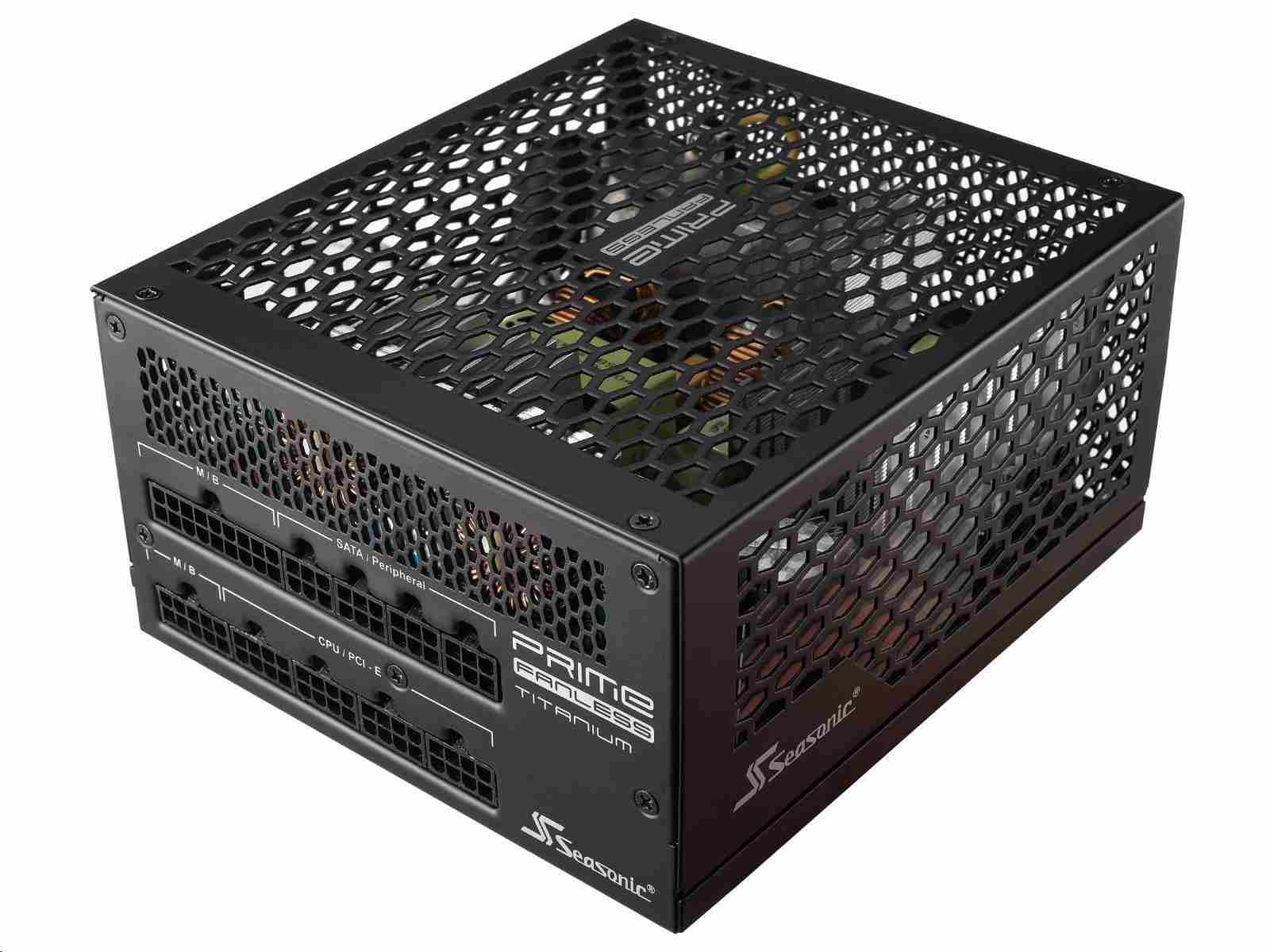

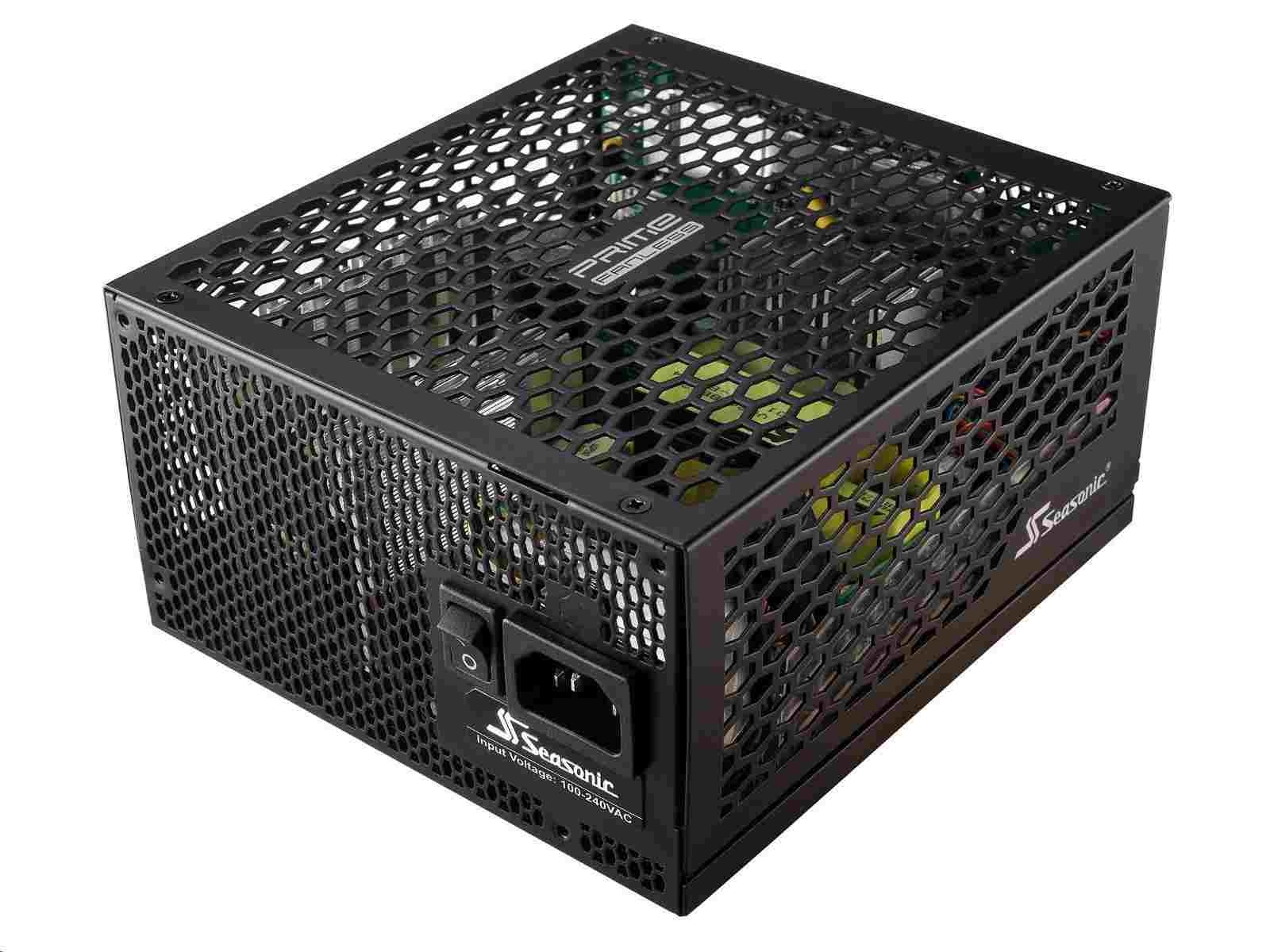

SEASONIC zdroj 600W Titanium Fanless (SSR-600TL)
Popis a parametry
SEASONIC zdroj 600W Titanium Fanless (SSR-600TL)
SSR-600TL
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Titanium | |
| Cybenetics Efficiency Level | ETA-A+ (View report) | |
| Cybenetics Noise Level | LAMBDA-A++ (View report) | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 170 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | N/A |
| Fan Control | N/A | |
| Fan Bearing | N/A | |
| Life Expectancy | N/A | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Webbed cables (MB, CPU, PCIe) Flat black cables | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 150,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 12 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 8-4 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 50 A | 0.3 A | 2.5 A | |
| 100 W | 600 W | 3.6 W | 12.5 W | |||
| Total continuous power | 600 W | |||||
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
PCIe 6-pin
Konektory
PCIe 8-pin
Konektory
FDD
Konektory
Molex
Konektory
SATA 15-pin
Konektory
8pin CPU 1x
Konektory pro základní desku
ATX 24-pin
Efektivita zdroje
80 Plus Titanium
Modulární kabeláž
Ano
Výkon zdroje (W)
600
