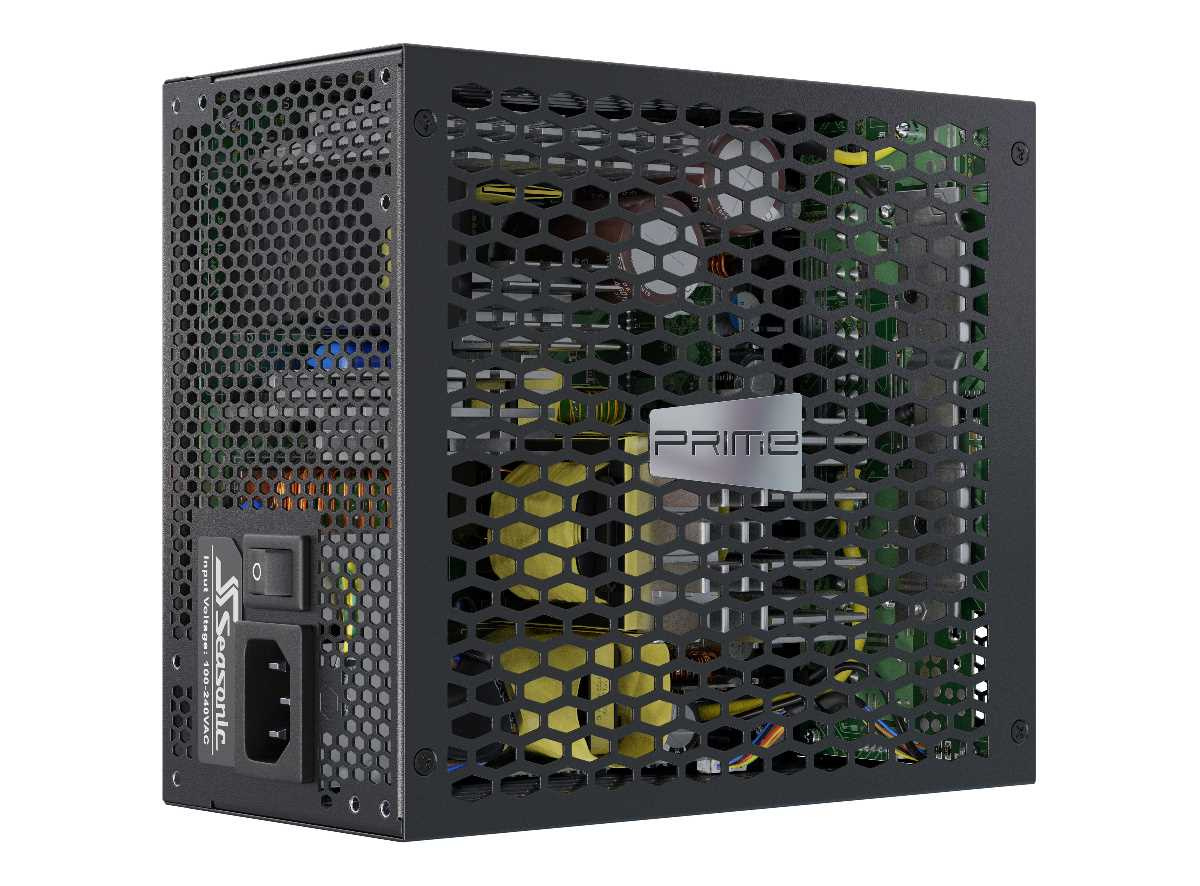

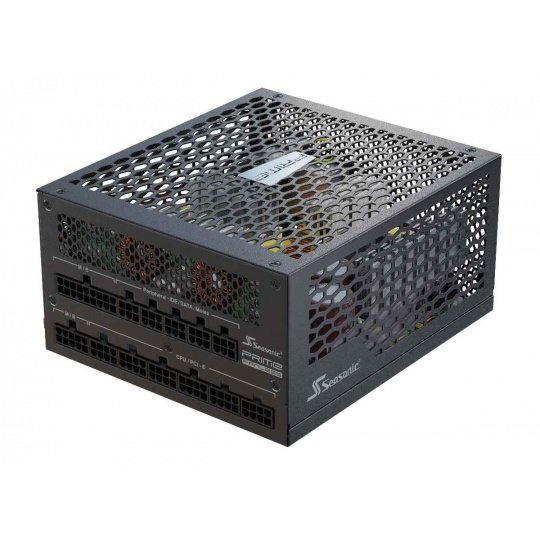

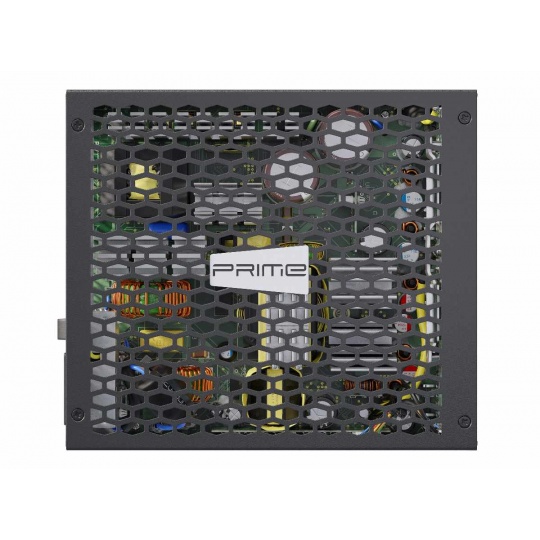

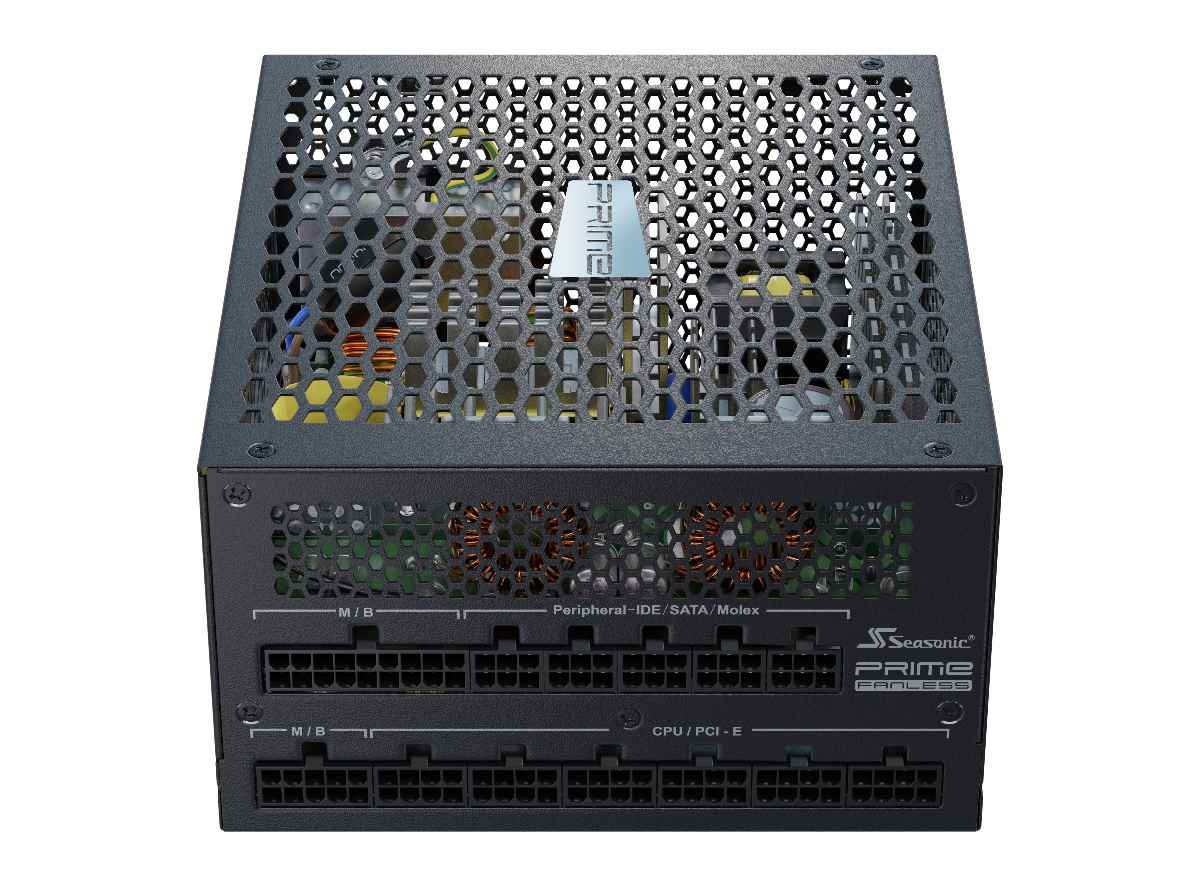

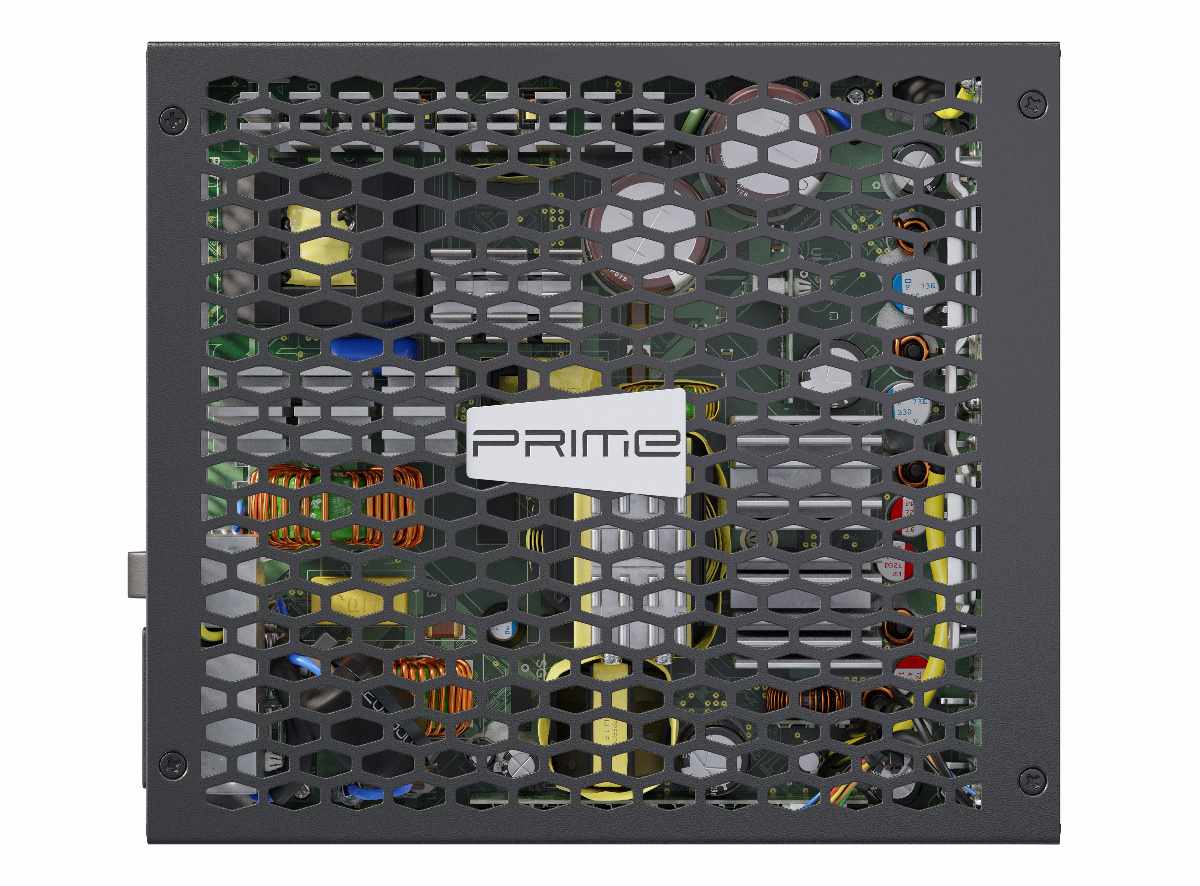

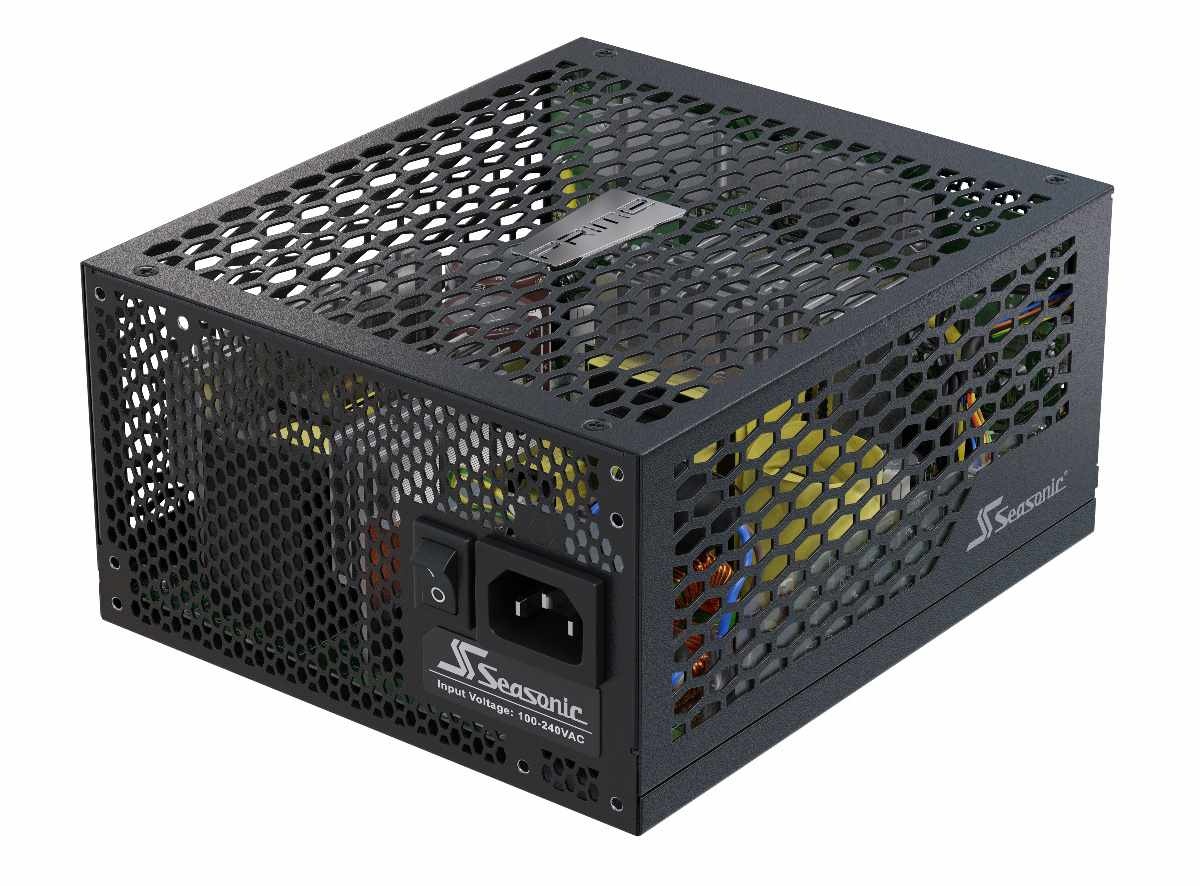

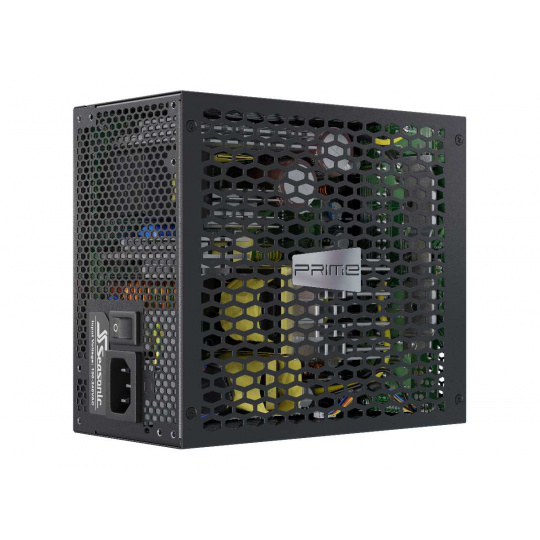

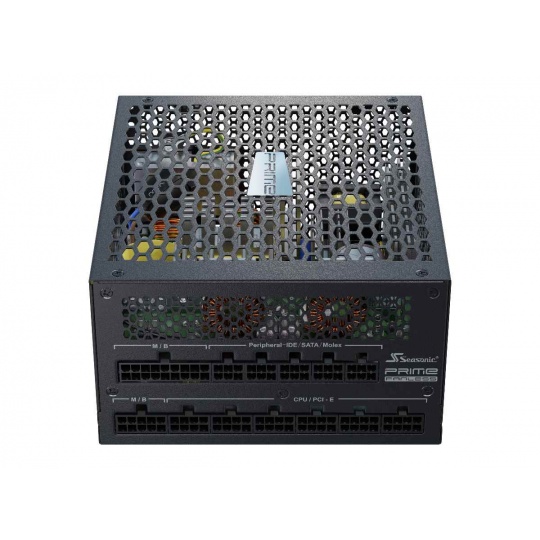

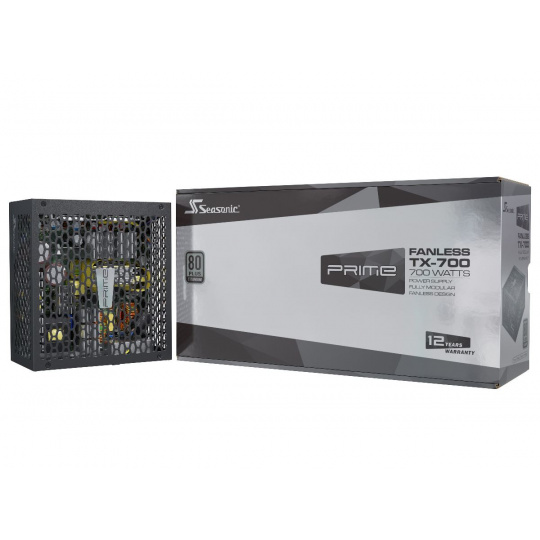

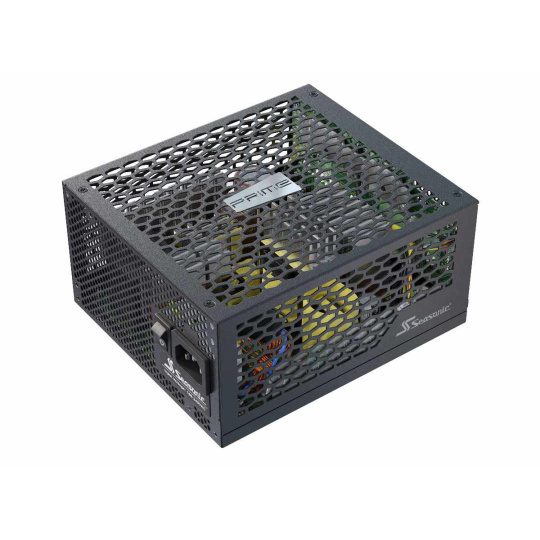

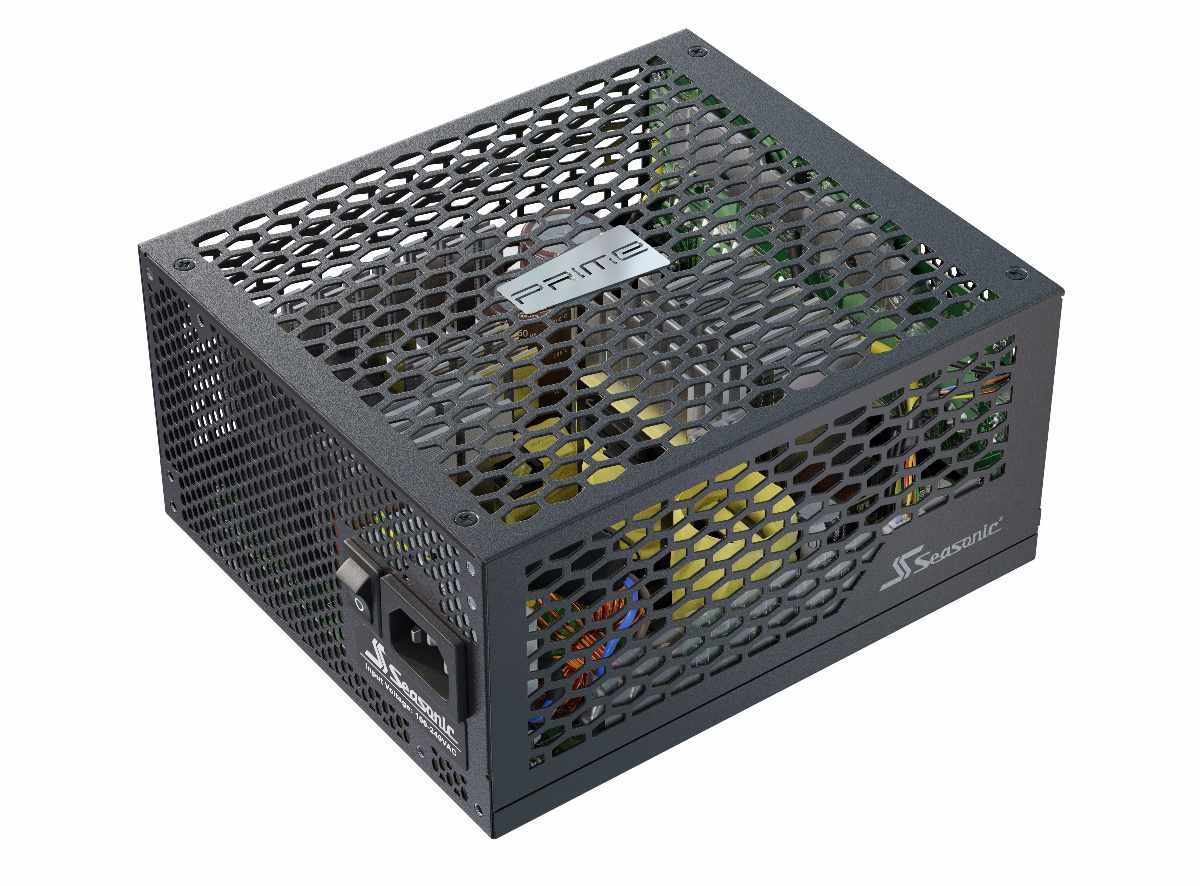

SEASONIC zdroj 700W Prime-TX-700 (SSR-700TL), Titanium-700 Fanless
Popis a parametry
SEASONIC zdroj 700W Prime-TX-700 (SSR-700TL), Titanium-700 Fanless

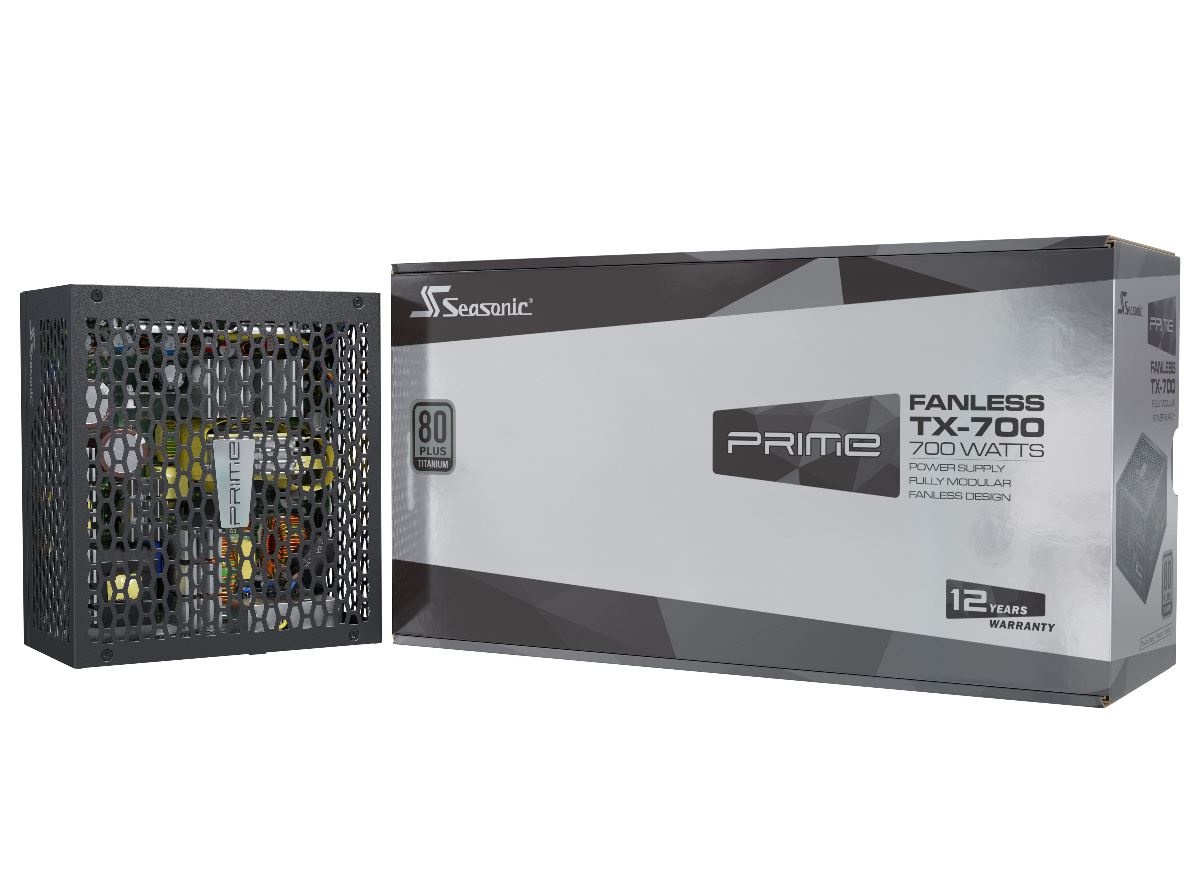

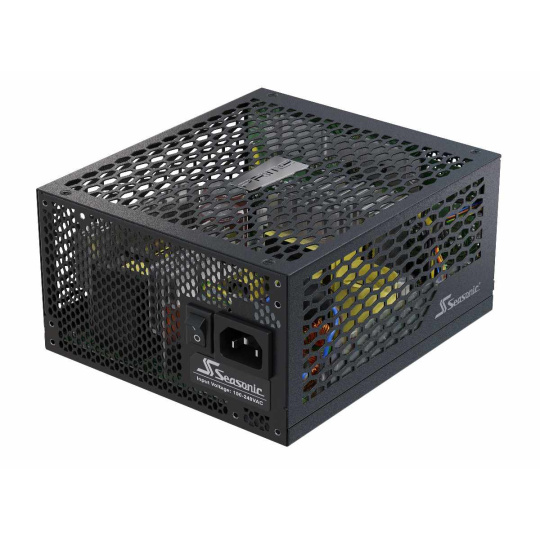

Seasonic Titanium-700 Fanless (Prime-TX-700)
- Ultra High Efficiency, 80 PLUS® Titanium Certified
- Super High Efficiency, 80 PLUS® Platinum Certified

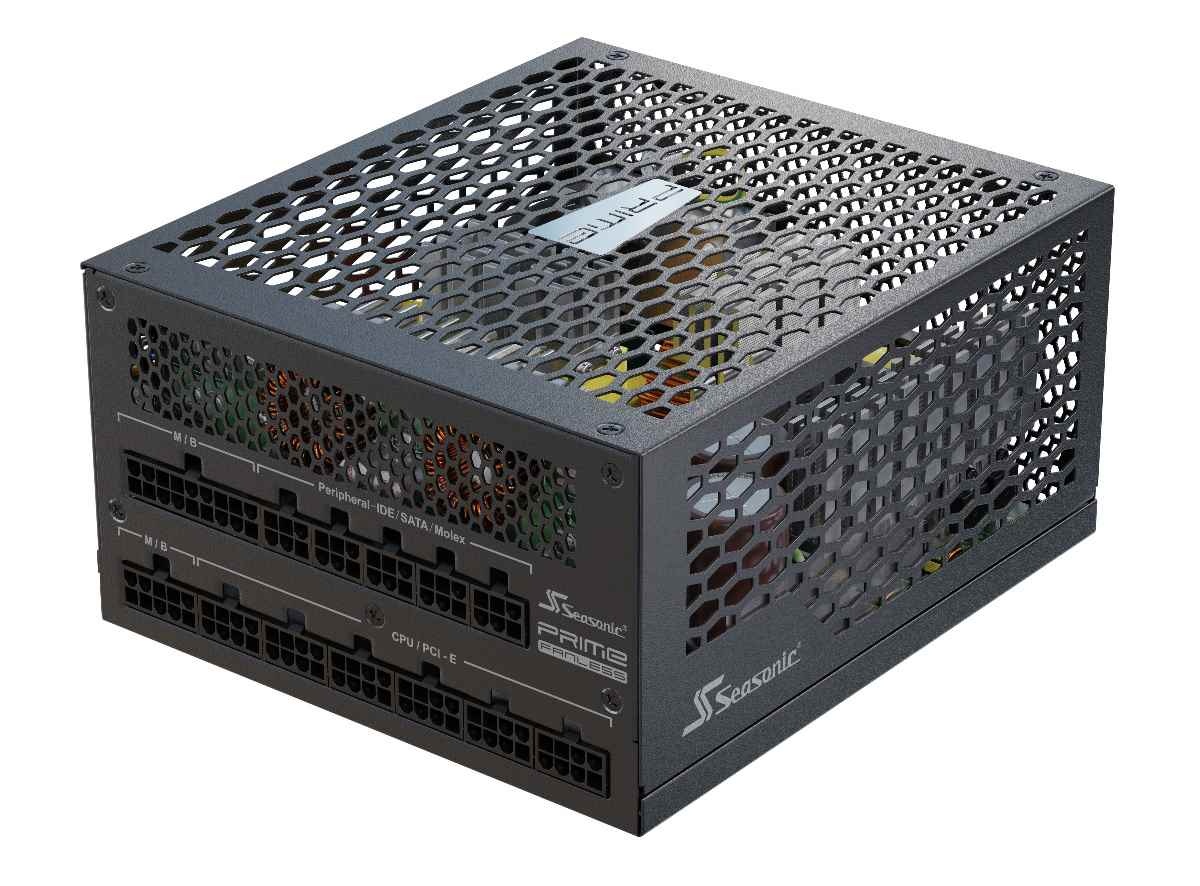

- Fully Modular Cabling Design

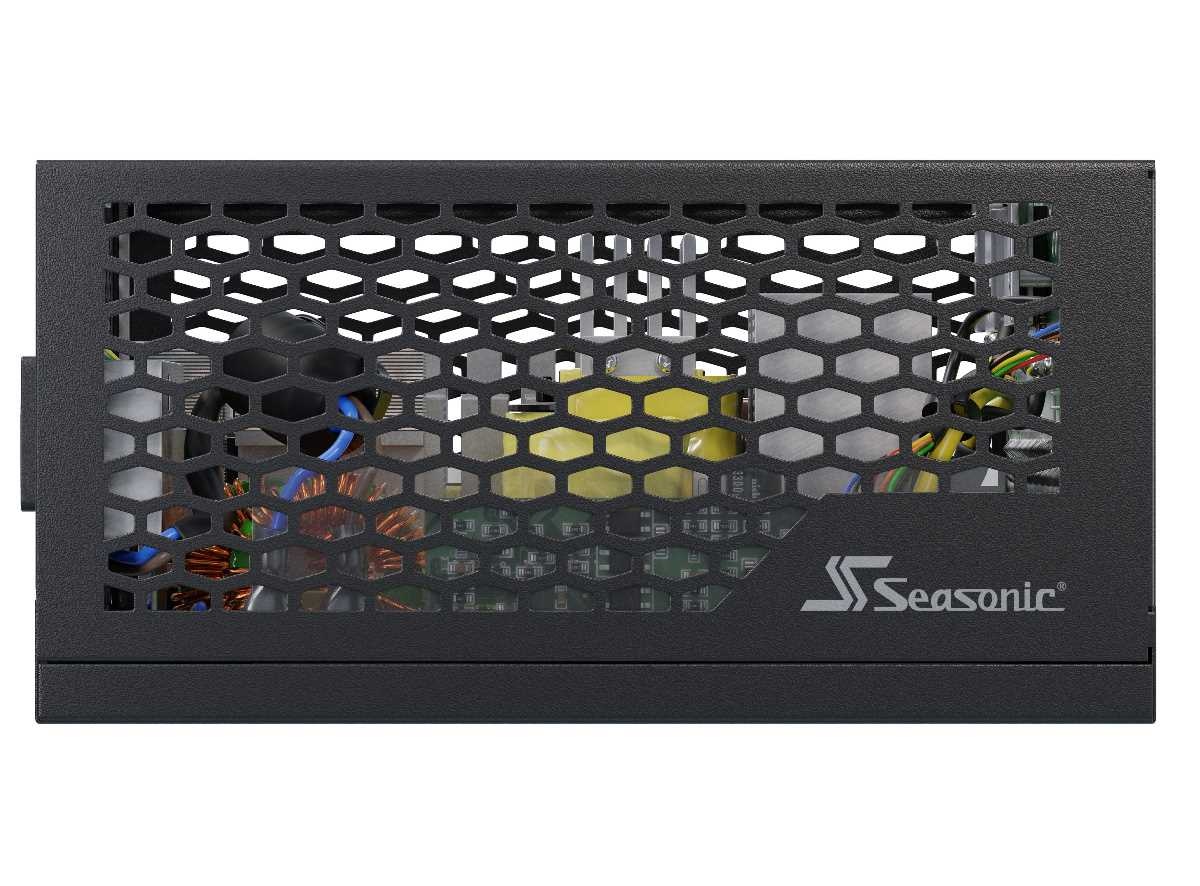

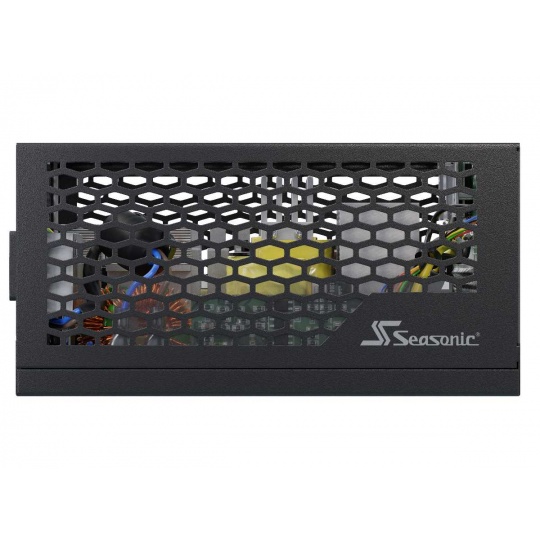

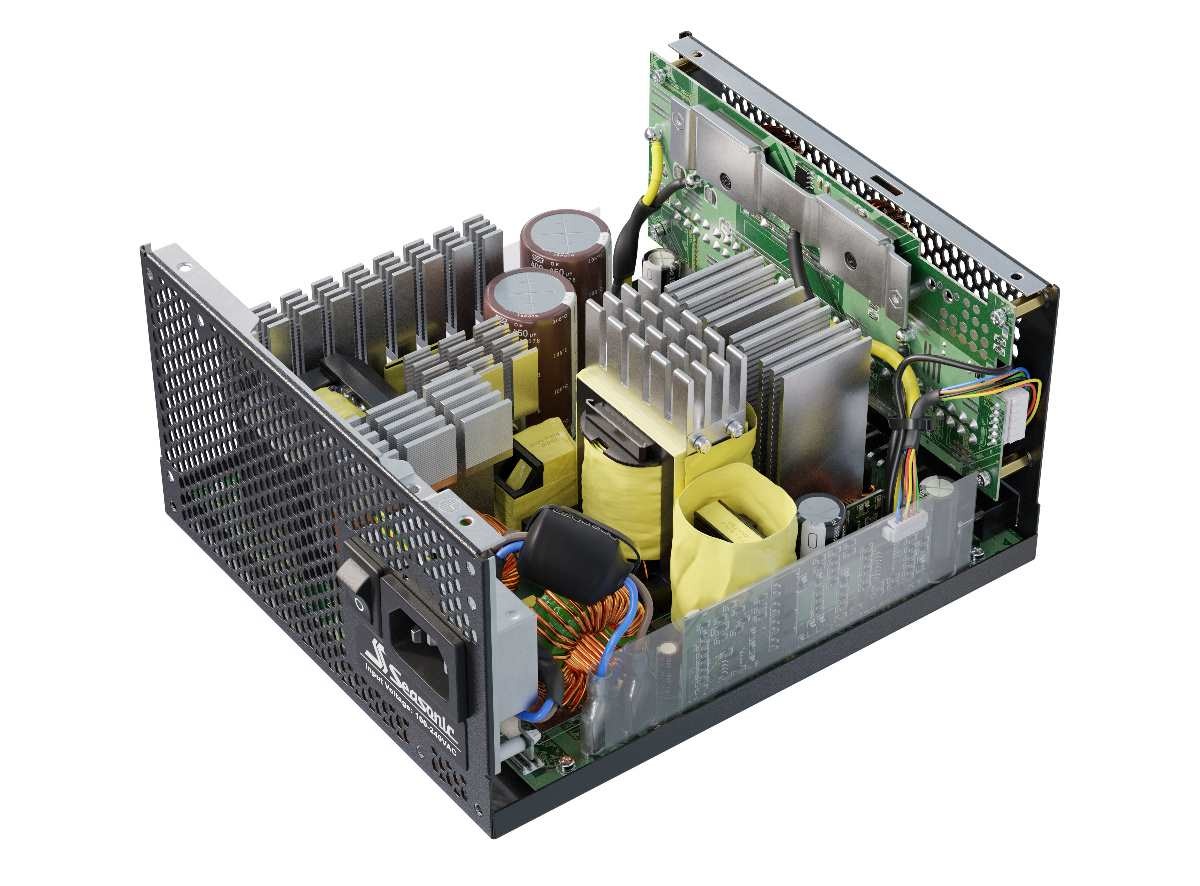

- Seasonic Fanless Design
- Micro Tolerance Load Regulation (MTLR) [0.5 %]

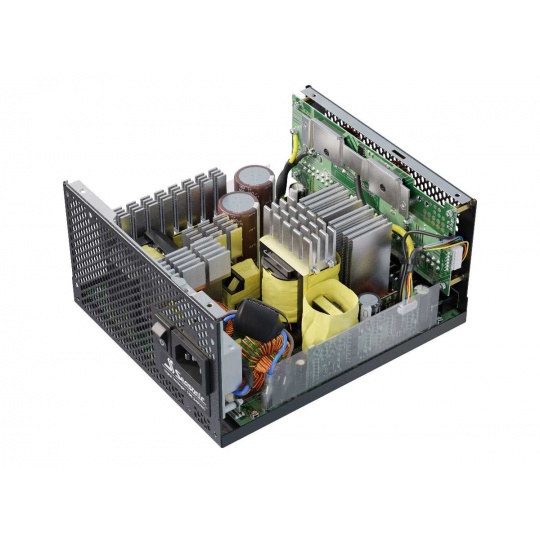

- DC to DC Converter Design
TECHNICAL SPECIFICATIONS
| Model | PRIME Fanless TX-700 |
| Total Power | 700 W |
| +3.3 V | 20 A, 100 W |
| +5 V | 20 A, 100 W |
| +12 V | 58 A, 696 W |
| -12 V | 0.3 A, 3.6 W |
| +5 Vsb | 3 A, 15 W |

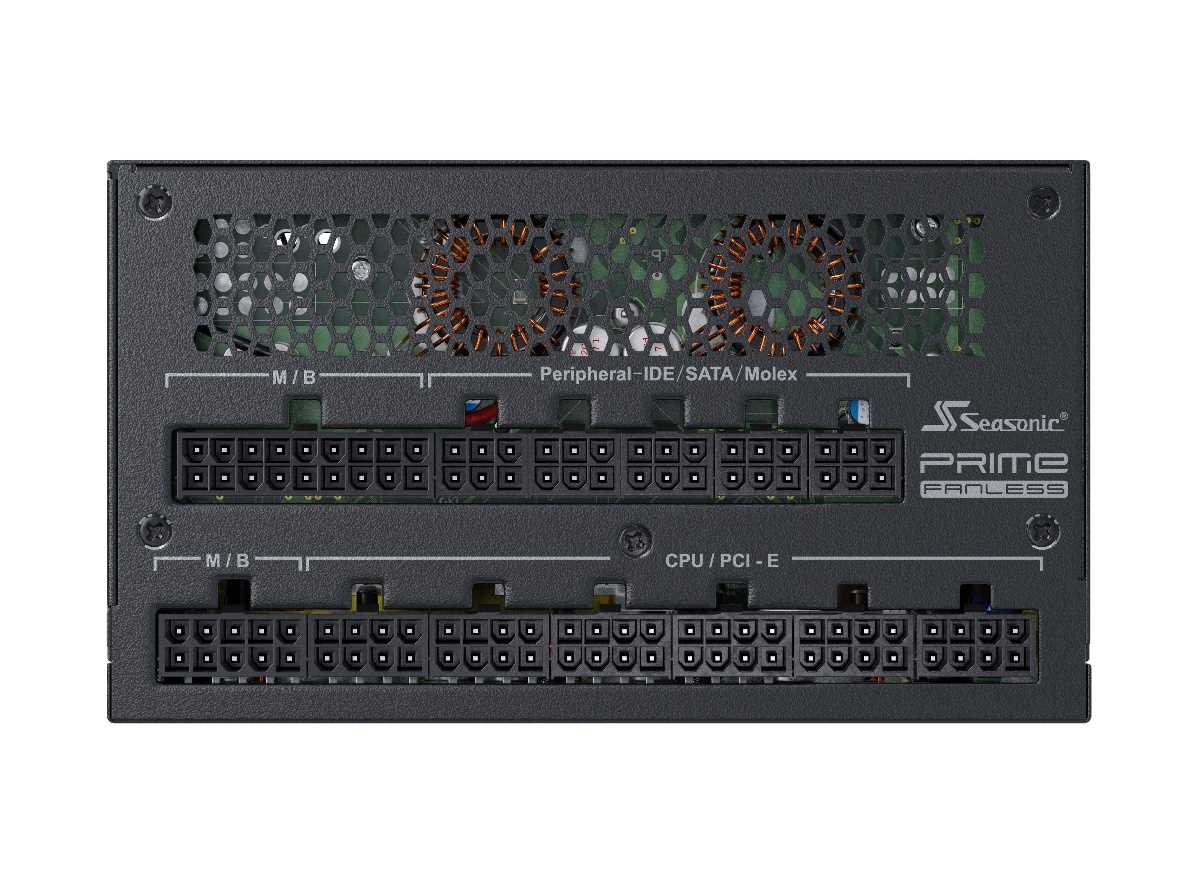

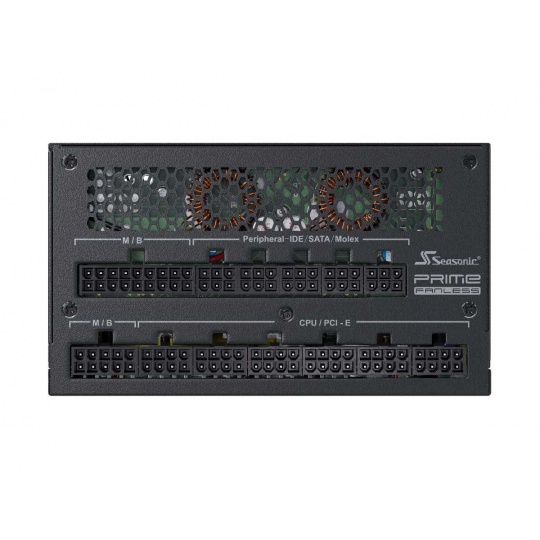

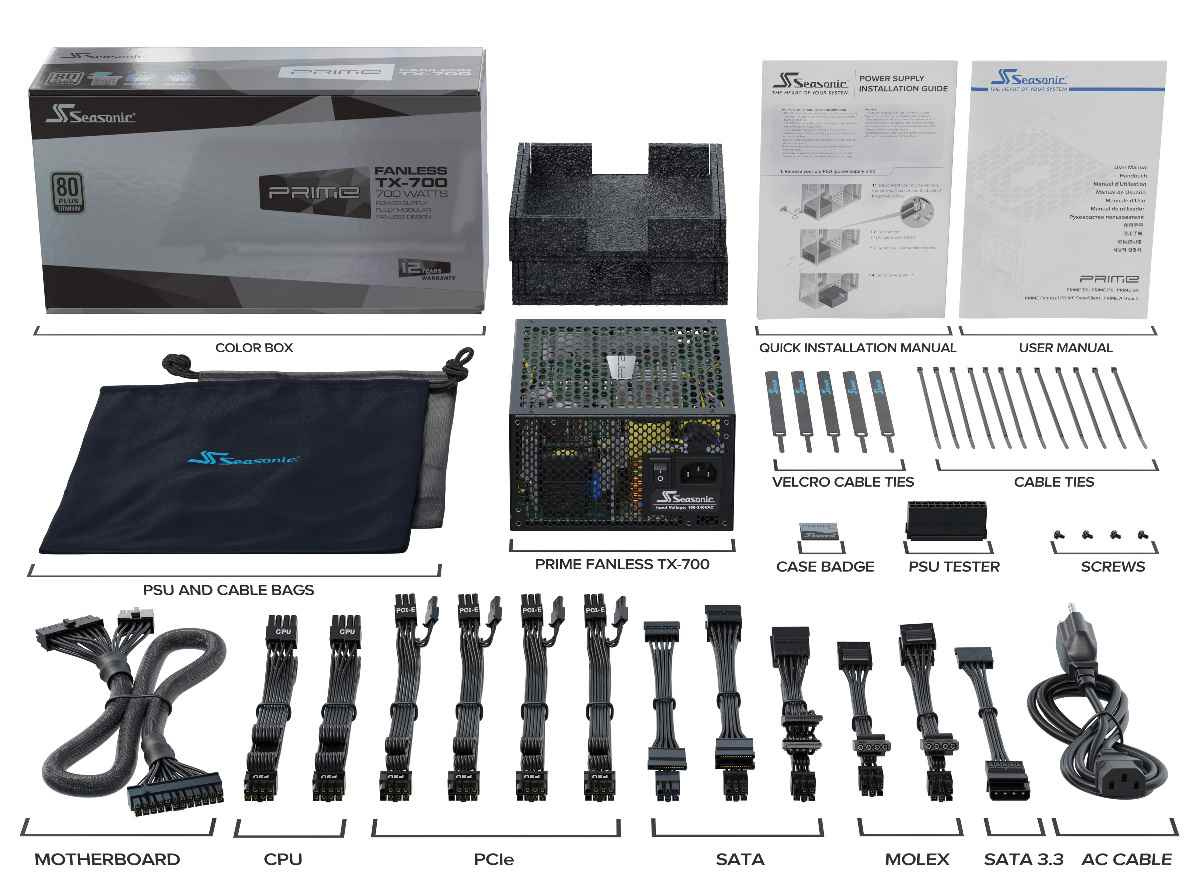

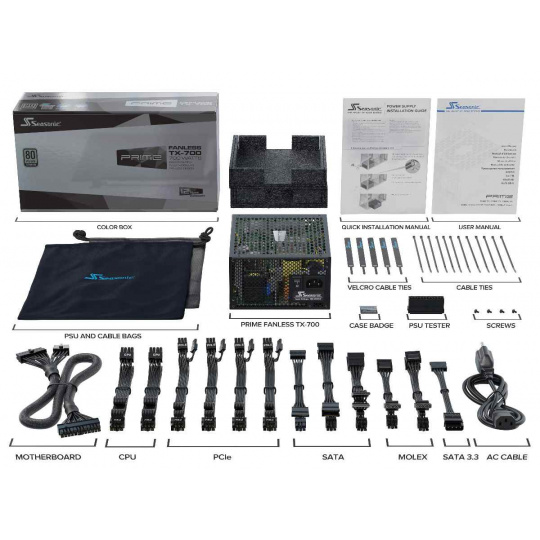

| Connector quantity | 1 x Main Power (24P / 20P) 610 mm 2 x EPS 12 V / ATX 12 V (8P / 4P) 650 mm 4 x PCI-E (8P / 6P) 10 x SATA 5 x Peripheral (4P) 1 x Model to SATA 3.3 Adapter |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Dimensions (L x W x H) | 170 x 150 x 86 mm |
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
PCIe 8-pin
Konektory
Molex
Konektory
SATA 15-pin
Konektory
FDD
Konektory
8pin CPU 1x
Konektory pro základní desku
ATX 4-pin
Konektory pro základní desku
ATX 24-pin
Efektivita zdroje
80 Plus Titanium
Modulární kabeláž
Ano
Výkon zdroje (W)
700
